Assembly - Home Decorators Collection 64108 Use And Care Manual

Assembly

1

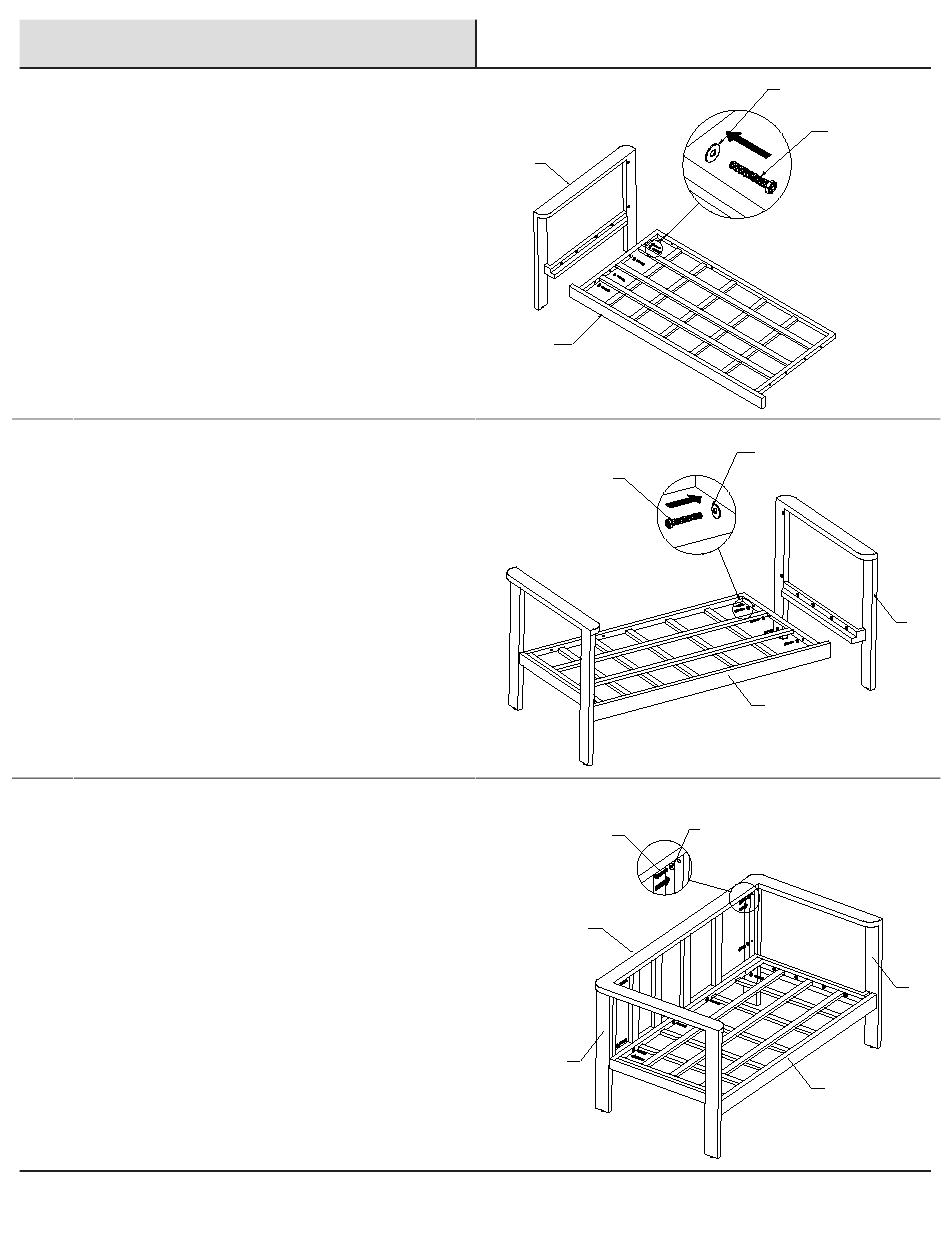

Connecting the left side and seat
□ Place a washer (BB) on each of four bolts (AA).
□ Align the side of the seat (B) with the horizontal
support on the left side (A) as shown.
□ Insert the bolts through the four holes in the left
edge of the seat (B) and into the left side (A).
□ Finger-tighten the bolts (AA), but do not fully tighten
to allow for adjustments as you continue assembly.
2
Attaching the right side to the seat
□ Repeat the above steps to attach the right side (C) to the seat (B).
3
Attaching the backrest
□ Place a washer (BB) on each of eight bolts (AA).
□ Place the backrest (D) vertically between the two sides (A and C)
as shown. Align the bolt holes in the backrest (D) with the bolt
holes in each adjoining part.
□ Insert four bolts (AA) through the four holes in the vertical edges of
the backrest (D) and into the sides (A and C).
□ Finger-tighten the bolts (AA), but do not fully tighten to allow for
adjustments as you continue assembly.
□ Insert the last four bolts (AA) through the holes in the back edge of
the seat (B) and into the bottom of the backrest (D) , then finger
tighten.
□ When all hardware is in place, check to be sure the sofa sits level
and all joints are well aligned. Adjust as necessary, then firmly
tighten all sixteen bolts (AA). Do not overtighten the hardware.
