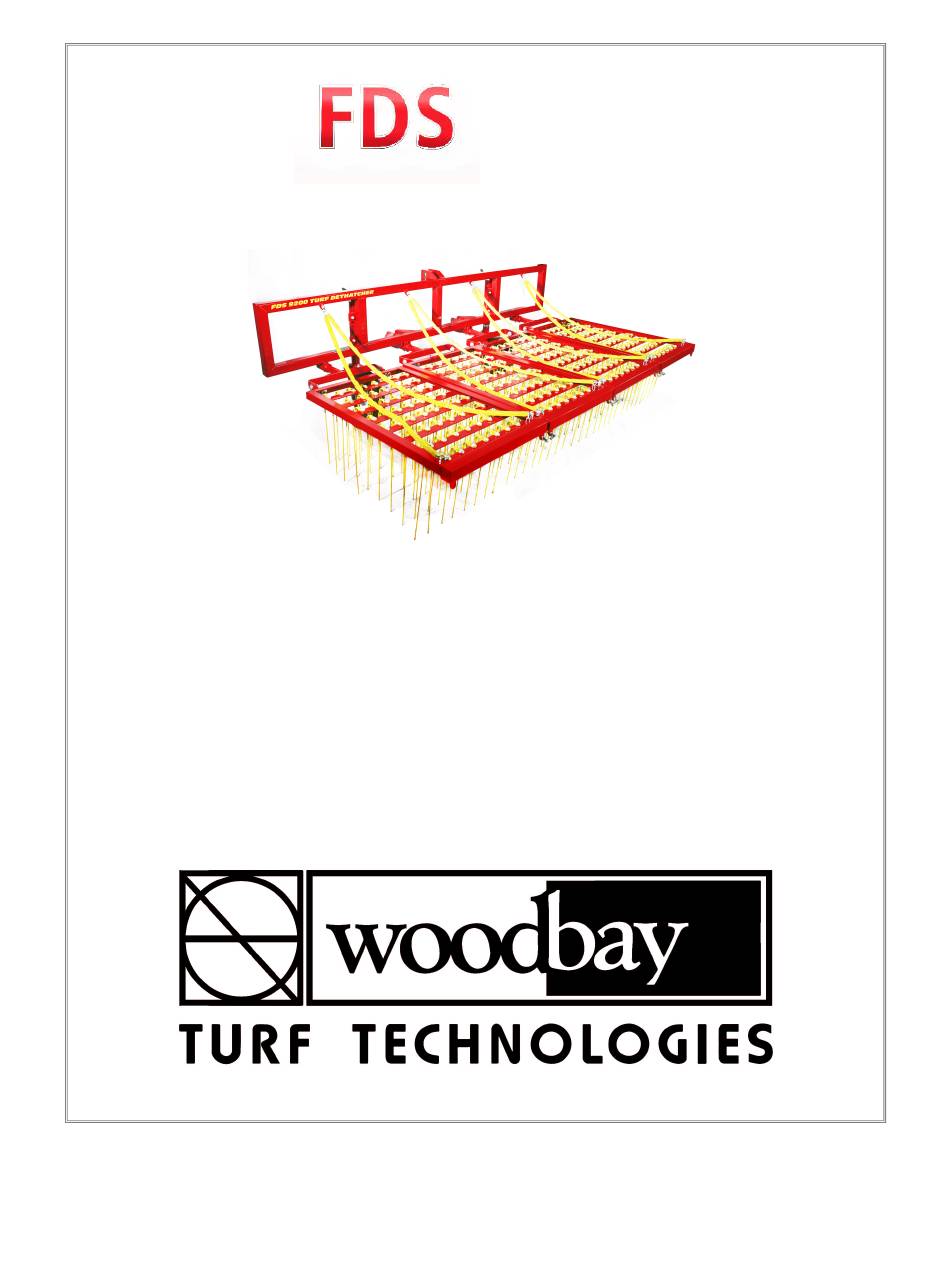

- Page 1 9200 TURF DETHATCHER OPERATION, SERVICING & PARTS MANUAL __________________________ Serial Number Engineered and Manufactured Exclusively by...
- Page 2 The unit can be pulled by a tractor with a three-point hitch. The purpose of the fds 9200 Turf Dethatcher is to remove thatch from the root zone before overseeding and to allow for faster air, water and fertilizer penetration.
- Page 3 3.0 Assembly and Adjustment: The fds 9200 Turf Dethatcher is assembled and crated for shipping with the hitch frame secured to the pallet, except that the gauge wheel assemblies are packed separately. While unpacking the turf dethatcher, ensure that the platform frames are well supported when they are released from the pallet and placed on the ground.
- Page 4 4.4 As with any other piece of equipment the fds 9200 Turf Dethatcher should be cleaned after use to remove any accumulation of debris and prevent oxidization or other damage to the frame and tines.
- Page 5 Normally, only one pass should be needed to loosen sufficient thatch with the fds 9200 Turf Dethatcher. However, if a second pass is desired it should be made using a pattern that crosses over the prior one.
- Page 6 For more information and any service requirements on the fds9200 Turf Dethatcher contact your local Wood Bay distributor or Wood Bay Turf Technologies at 780.468.4378: North America T.F. 1-800-661-4942: or e-mail info@woodbayturftech.com. fds9200 Operators' Manual 2011 Page 5...
- Page 7 fds9200 Turf Dethatcher REPLACEMENT PARTS LIST Part No. Description Quantity Hitch and Support (Back) Frame FDS03-280 Assembly Platform Frame Assembly FDS03-281 Platform Pivot Bracket Assembly FDS03-282 Pivot Shaft Cap FDS03-283 Tine (Spring Steel) FDS03-284 Safety Cable with Clips for Tine FDS03-285 Assemblies Parking Rod (Left) FDS03-286...
- Page 8 9200 TURF DETHATCHER DISTRIBUTED BY: FOR SALES & SERVICE INFORMATION CALL YOUR LOCAL WOOD BAY DISTRIBUTOR OR CONTACT WOOD BAY DIRECT: #202, 8704 – 51 Ave. 19609 North Welk Drive Edmonton, Alberta Sun City, Arizona Canada T6E 5E8 U.S.A. 85373 Ph.
