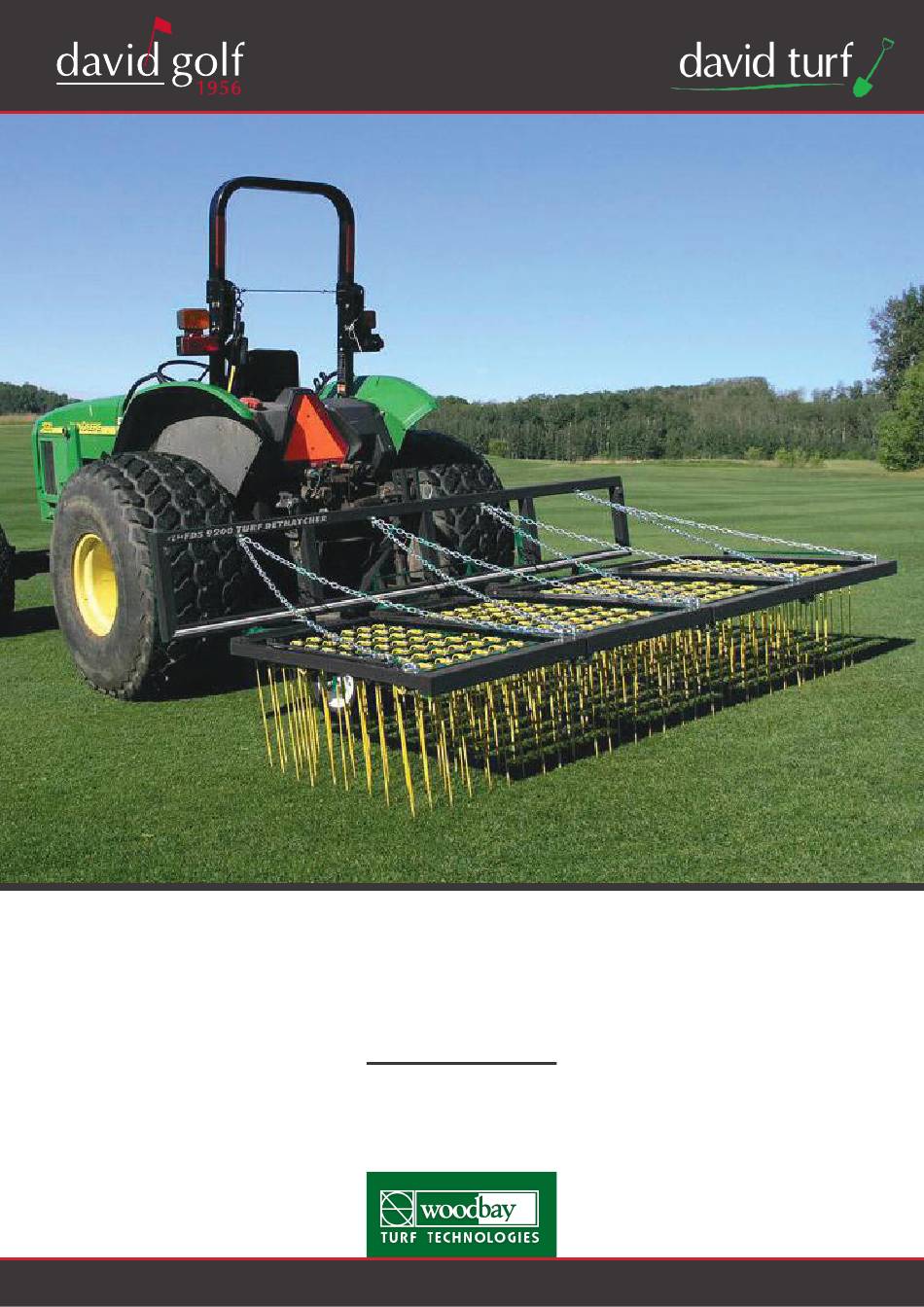

- Page 1 TURF DETHATCHER OPERATING, SERVICING & PARTS MANUAL davidgolf.com.au 1300 790 890 davidturf.com.au...
- Page 2 The unit can be pulled by a tractor with a three-point hitch. The purpose of the fds9200 Turf Dethatcher is to remove thatch from the root zone before overseeding and to allow for faster air, water and fertilizer penetration. It can also be used as a spreader for turf dressings on established growth, or for topsoil and dressing during course con- struction and landscaping operations.
- Page 3 The remaining spacers are to be installed above the pivot bracket. This setting should allow the tines to penetrate about 1/2” into the turf. Then you will need to test the fds9200 Turf Dethatcher on your turf to see if any adjustment in spacer positions is needed.
- Page 4 4.4 As with any other piece of equipment the fds9200 Turf Dethatcher should be cleaned after use to remove any accumulation of debris and prevent oxidization or other damage to the frame and tines.
- Page 5 5.0 Operations on the Turf: The pattern of operation during use of the fds9200 Turf Dethatcher should be much the same as that followed for fairway mowers. A tight line pattern can be followed by lifting the unit at the end of each run before making the turn.
- Page 6 TURF DETHATCHER OPERATING, SERVICING & PARTS MANUAL 7.0 fdsT9200 Sport Components Wheel 13” x 6.50” (2 total) Spacer 1 1/2” x 2” (2 total) Spacer 1 1/2” x 1 3/8” (2 total) Caster arm (2 total) Bolt 1/2” x 8 1/2” ( 2 total) Bolt 1/2”...
- Page 7 TURF DETHATCHER OPERATING, SERVICING & PARTS MANUAL 9.0 fdsT9200 Sport Components Hitch rod support 1/2” (2 total) Main hitch frame (2 total) Tow bar Bolt 1/2” x 4” (6 total) Lock washer 1/2” (6 total) Nut 1/2” (6 total) 10.0 Replacement parts list...
