bmcm USB-AD16f Manual

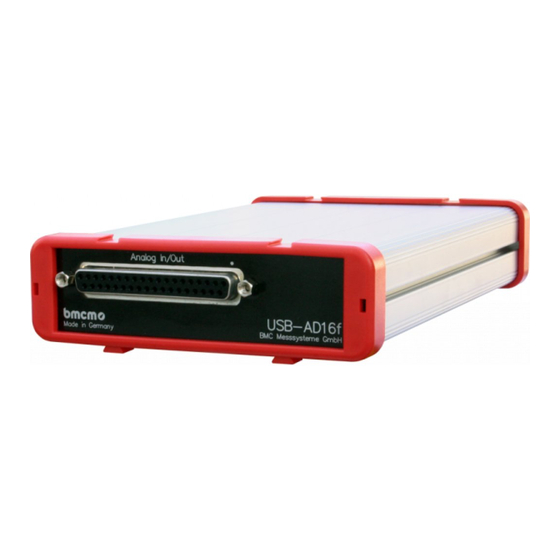

USB-AD16f
USB Data Acquisition System
Measurement & Control.
Extremely Powerful.
Precisely record and output signals with the
USB-AD16f: The high-performance USB data
acquisition system accommodated in a stable
aluminum housing impresses by high technical
standard and excellent price-performance ratio.
It is especially suitable for dynamic applications.
16 Analog Inputs. 250kHz
16 Bit. 10V, 5V, 2V, 1V.
16 analog inputs can be sampled with 16 bit
resolution and 250kHz total sampling rate so that
even slightest peaks of high-frequent signals do
not remain undetected. The measuring range is
selected via software for each channel
separately.
2 Analog Outputs. 16 Bit. 10V.
The two 10V outputs can be used for analog
controls with 16 bit accuracy.
Clearly Safe.
Due to the galvanic isolation of the analog
channels the DAQ system and the PC are
perfectly protected.

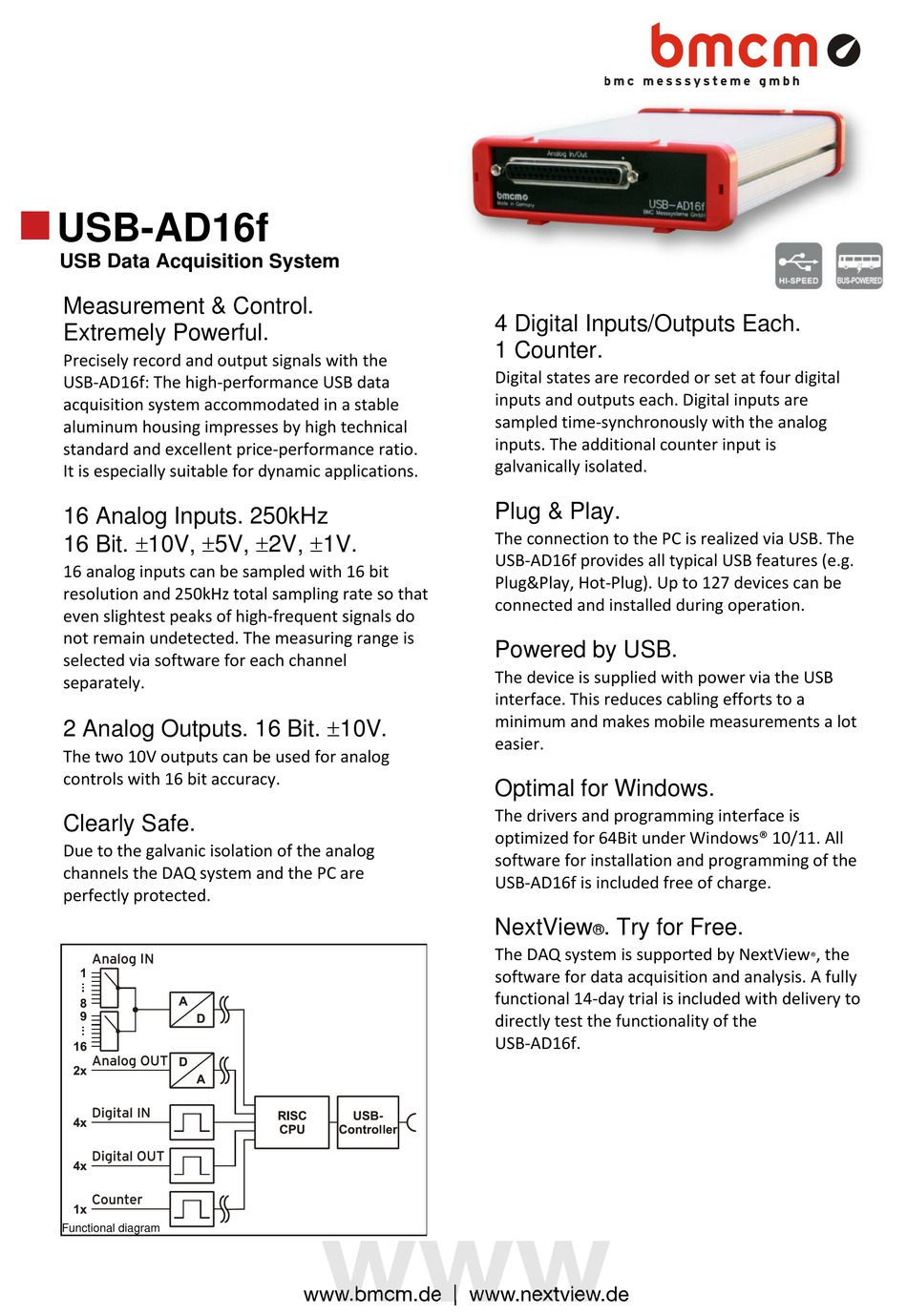

Functional diagram
4 Digital Inputs/Outputs Each.
1 Counter.
Digital states are recorded or set at four digital
inputs and outputs each. Digital inputs are
sampled time-synchronously with the analog
inputs. The additional counter input is
galvanically isolated.
Plug & Play.
The connection to the PC is realized via USB. The
USB-AD16f provides all typical USB features (e.g.
Plug&Play, Hot-Plug). Up to 127 devices can be
connected and installed during operation.
Powered by USB.
The device is supplied with power via the USB
interface. This reduces cabling efforts to a
minimum and makes mobile measurements a lot
easier.
Optimal for Windows.
The drivers and programming interface is
optimized for 64Bit under Windows® 10/11. All
software for installation and programming of the
USB-AD16f is included free of charge.
NextView . Try for Free.
®
The DAQ system is supported by NextView
software for data acquisition and analysis. A fully
functional 14-day trial is included with delivery to
directly test the functionality of the
USB-AD16f.
