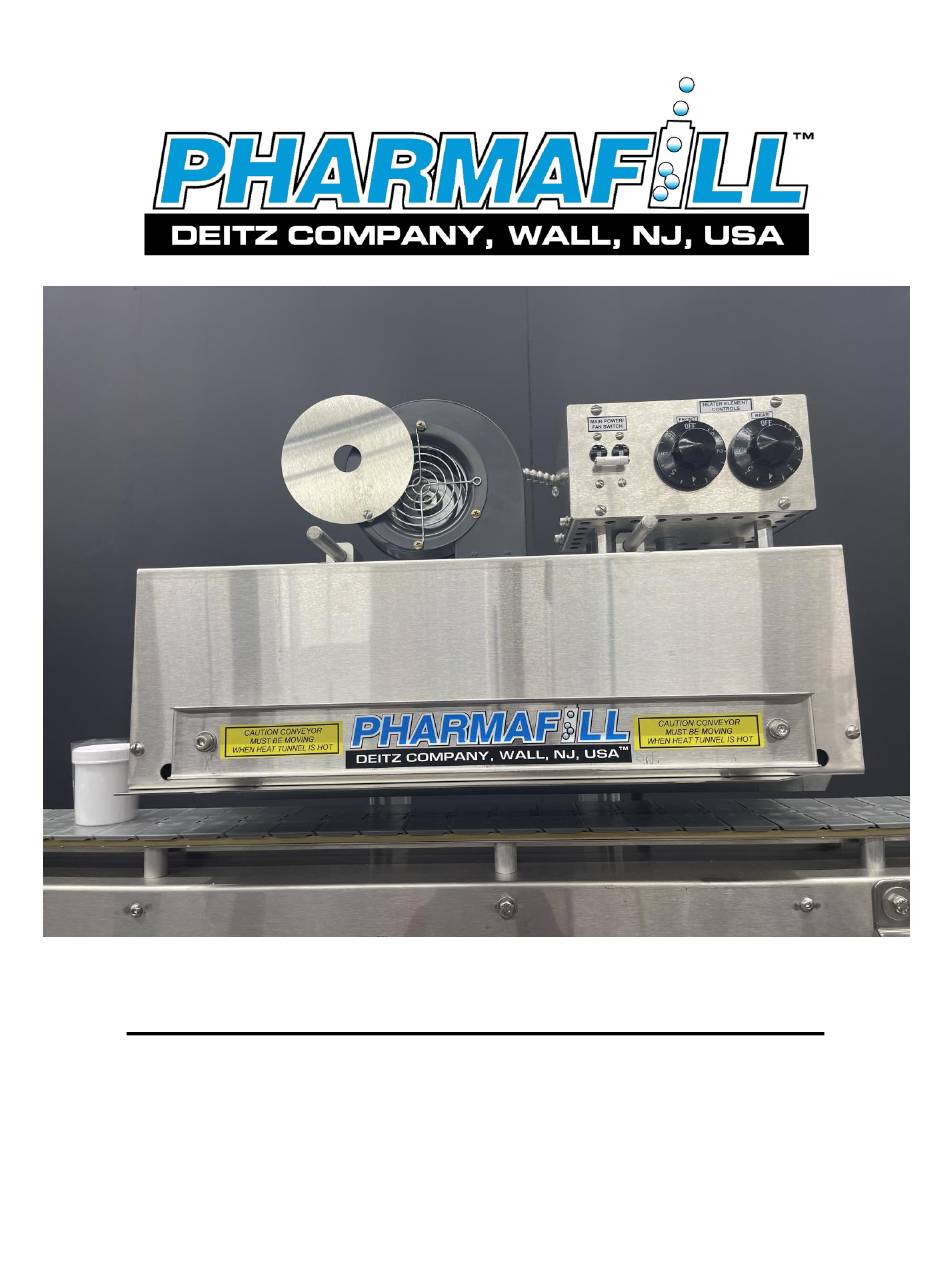

- Page 1 Model HT6-B Heat Shrink Tunnel Operation Manual Rev B...
-
Page 2: Table Of Contents
3. INTRODUCTION ......................2 4. SPECIFICATIONS ......................4 5. GENERAL INFORMATION ................... 5 6. INSTALLATION ......................7 7. SET-UP ........................8 8. OPERATION ........................ 9 9. MAINTENANCE ......................10 10. TECHNICAL INFORMATION ..................11 Deitz Company Inc. HT6B User Manual Page... -
Page 3: General Illustrations
Pharmafill Model HT6B User Manual Section 1 - GENERAL ILLUSTRATIONS HT6B Heat Tunnel– Front View 1. Blower Intake Cover 2. Blower 3. Control Panel 4. Tunnel Enclosure 5. Handle 6. Lift Stand – with manual height adjustment Deitz Company Inc. HT6B User Manual Page... - Page 4 2022-06-29 Rev B Pharmafill Model HT6B User Manual HT6B Heat Tunnel– Rear View 1. Power Cord 2. Power Requirements 3. Mounting Rods Deitz Company Inc. HT6B User Manual Page III...
- Page 5 2022-06-29 Rev B Pharmafill Model HT6B User Manual HT6B Heat Tunnel– Control Panel 1. Main Power and Fan Switch – circuit breaker 2. Heater Element Temperature Controls – Front and Rear Deitz Company Inc. HT6B User Manual Page IV...
- Page 6 2022-06-29 Rev B Pharmafill Model HT6B User Manual Belt Moves This Way HT6B Heat Tunnel – Left End View 1. Intake End of Tunnel Enclosure 2. Rubber Curtain Deitz Company Inc. HT6B User Manual Page...
- Page 7 Pharmafill Model HT6B User Manual HT6B Heat Tunnel– Bottom View 1. Air Blade - Left Bottom 2. Air Blade - Right Bottom 3. Heating Elements – (not visible) 4. Inner Slotted Panels – (not visible) Deitz Company Inc. HT6B User Manual Page VI...
-
Page 8: Safety Reminder
Always test for the presence of voltage before touching or working on electrical components. Note that there might be other requirements that could apply. Refer to the manuals supplied by the component manufacturers for further safety instructions. Deitz Company Inc. HT6B User Manual Page... -
Page 9: Introduction
Pharmafill Model HT6B User Manual Section 3 - INTRODUCTION Thank you for purchasing a Pharmafill Model HT6B Heat Tunnel. We at Deitz Company hope you will find that the Model HT6B meets or exceeds your expectations and requirements for an affordable, reliable and innovative addition to your packaging operation. - Page 10 LEGAL NOTICE: DEITZ COMPANY , PHARMAFILL and any graphic representations of the same are legal trademarks of Deitz Company Inc. and may not be used by others without specific written permission from Deitz Company. Deitz Company Inc. HT6B User Manual...
-
Page 11: Specifications
No rails directly under heat tunnel CONSTRUCTION MATERIALS Stainless Steel, Anodized Aluminum There are no contact parts- the container is not touched. Notes: 1. May be adjusted further by adjusting or modifying leveling feet. Deitz Company Inc. HT6B User Manual Page... -
Page 12: General Information
The light-weight lift stand has a screw-type height adjustment which is operated via a hand wheel. This allows the HT6B to be easily raised or lowered, or moved away from the conveyor for cool-down, or for use on another line. Deitz Company Inc. HT6B User Manual Page... - Page 13 The exit for the cooling air is through several holes in the bottom edge of the outer cover. Do not block these holes. Deitz Company Inc. HT6B User Manual Page...
-
Page 14: Installation
4. The tunnel should be located along the conveyor where the heat from the tunnel will not affect other machines nearby. The recommended clearance is 24” from each end, however as little as 12” is often used. Deitz Company Inc. HT6B User Manual Page... -
Page 15: Set-Up
10. Set the conveyor speed so the bottle is inside the tunnel for as long as necessary to get a proper shrink. Deitz Company Inc. HT6B User Manual Page... -
Page 16: Operation
If there is a complete power failure for both the hot tunnel and conveyor, and the conveyor belt stops, raise the tunnel by whatever means necessary. Deitz Company Inc. HT6B User Manual Page... -
Page 17: Maintenance
Keep the ventilation holes at the bottom clear. 2. Lubrication – there is no lubrication required. 3. Spare parts consist of a heating element, a main power switch with 40A circuit breaker, a temperature controller, and a blower. Deitz Company Inc. HT6B User Manual Page 10... -
Page 18: Technical Information
Fan continues to blow cool air into tunnel and across heater elements. Turn power off with Main Power/Fan switch. • Electric power is discontinued to the Heater Element Temperature Controls. • Fan stops blowing. Deitz Company Inc. HT6B User Manual Page 11... - Page 19 Turn respective Temperature Control to higher number ❑ Have a qualified electrician check for presence of voltage of both sides of suspect ❑ temperature control. If temperature controls are good, heater element is bad. ❑ Deitz Company Inc. HT6B User Manual Page 12...
- Page 20 Receptacle Voltage AD1177_PM Preventative Maintenance EAL Series 2 Auto-Lift Operator Manual Addendums or additional technical data ________________ __________________________________ ________________ __________________________________ ________________ __________________________________ ________________ __________________________________ ________________ __________________________________ ________________ __________________________________ ________________ __________________________________ ________________ __________________________________ Deitz Company Inc. HT6B User Manual Page 13...
- Page 24 Document Number: AD1177-PM 2/21/2013 Page 1 of 1 JOHN DEITZ Deitz Company Inc. 732-681-0200 President 1750 Route 34 PO Box 1108 732-681-8468 Wall, NJ USA 07719 Email sjd2@deitzco.com AD1177 Model HT6B Heat Tunnel – Preventative Maintenance Monthly 1. Silicone Curtain at entrance (if installed) a.
- Page 25 Lift Pharmafill HT6B Heat Tunnel with Stand Emergency Auto-Lift option Installation and Set-up — April 2021 Type AD1258 – Current Sensing Switched Power To Conveyor Control Line to Air Valve Incoming Power Type AD1258 Emergency Auto Lift (Current Sensing) automatically raises the HT6 Heat Tunnel whenever the conveyor stops due to power switch turned off, speed setting reduced to zero or loss of power (compressed air must be on to maintain lift).
- Page 26 Lift Pharmafill HT6B Heat Tunnel with Stand Emergency Auto-Lift option Installation and Set-up — April 2021 Type AD1258 – Current Sensing Manual Override Switch Use the override switch to raise and hold the heat tunnel manually (compressed air must be on). Trigger Point Adjustment...
- Page 27 Lift Pharmafill HT6B Heat Tunnel with Stand Emergency Auto-Lift option Installation and Set-up — April 2021 Type AD1258 – Current Sensing Flow Control Valve Locking Ring The valve adjust has been set at 2-1/2 turns CCW from fully closed. This will keep the tunnel from retracting too quickly when moving down from the raised position.
- Page 28 Lift Pharmafill HT6B Heat Tunnel with Stand Emergency Auto-Lift option Installation and Set-up — April 2021 Type AD1258 – Current Sensing Connect the EAL control line to the Solenoid Air Valve line on the Lift Platform Emergency Stop Conveyor Speed Control Suggested location for EAL Enclosure showing HT6B Heat Tunnel Page 4...
