In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.
Im lnteresse der Benutzersicherheit (erforderliche Sicherheitsregeln in einigen Ländern) muß das Gerät in seinen
Originalzustand gebracht werden. Außerdem dürfen für die spezifizierten Bauteile nur identische Teile verwendet
werden.
1st Edition

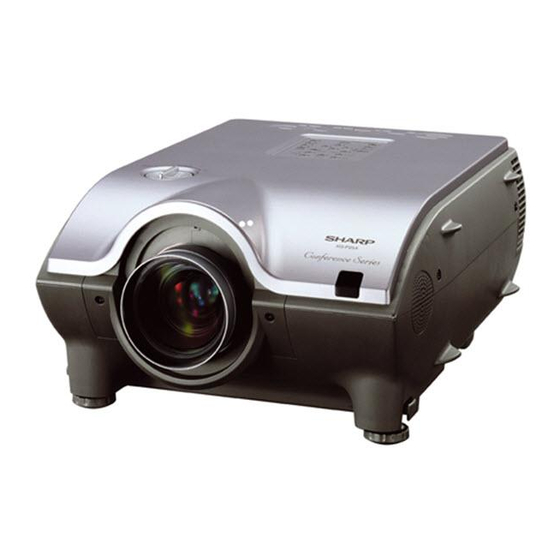

SERVICE MANUAL
SERVICE-ANLEITUNG
LCD PROJECTOR
LCD PROJEKTOR
MODEL
MODELL
XG-P25X
XG-P25X

Advertisement

Table of Contents
loading

Related Manuals for Sharp XG-P25X

Summary of Contents for Sharp XG-P25X

  • Page 1 XG-P25X 1st Edition SERVICE MANUAL SERVICE-ANLEITUNG LCD PROJECTOR LCD PROJEKTOR MODEL XG-P25X MODELL In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

  • Page 2: Specifications

    (PFILD0080CEZZ), Lens cap (PCAPH1056CESA), CD-ROM (UDSKAA004WJZZ, UDSKAA005WJZZ), LCD projector operation manual (TINS-A133WJZZ), Quick reference guides, Sharp Advanced Pr esentation Software installation guide (TINS-A139WJZZ), ID number seal (TLABZ0781CEZZ) * When the RGB input is used for displaying moving images r eceived as interlaced image signal, the images may not be displayed as you intended depending on the type of the signal.

  • Page 3: Important Service Safety Notes (For Usa)

    XG-P25X IMPORTANT SERVICE SAFETY NOTES (for USA) Ë Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and servicing guidelines as follows: » Use an AC voltmeter with sensitivity of 5000 ohm per WARNING volt., or higher, sensitivity to measure the AC voltage...
  • Page 4 XG-P25X Location of Controls Projector Front View TEMPERATURE WARNING LAMP REPLACEMENT indicator indicator POWER indicator POWER buttons (ON/OFF) VOLUME buttons ( / ) MUTE button MENU button LENS button AUTO SYNC button INPUT 1, 2, 3, 4, 5 buttons RESIZE button...
  • Page 5 XG-P25X Dimensions Rear View Side View Side View Top View (155) (26.5) (319) (3.5) (23) Front View (34) (248) (88.5) 2 (74.5) Bottom View Units: inches (mm) (20.27)
  • Page 6 XG-P25X REMOVING OF MAJOR PARTS 1. Removing the top cover and lens cover. 1-1. Remove the two screws and detach the lens cover. 1-2. Hold the lens top cover and tilt it up until its back end alone stays hooked. Then slide and detach the top cover.
  • Page 7 • Clogged air filter. • Clean the filter. • Cooling fan breakdown. • Take the projector to your nearest Sharp • Internal circuit failure. Authorized LCD Projector Dealer or Service Center for repair. • Burnt-out lamp.

  • Page 8: The Optical Unit Outline

    XG-P25X THE OPTICAL UNIT OUTLINE Layout of the optical system Note: Layout for positioning the optical system. Projection Lens 1/2λ plate + polarizing plate 1/2λ plate Sapphire glass Sapphire glass Polarizing plate Polarizing plate Incident polarizing plate B Incident polarizing plate R...

  • Page 9: Convergence And Focus Adjustment

    XG-P25X CONVERGENCE AND FOCUS ADJUSTMENT » Start the convergence and focus adjustments with the top cabinet and the LCD cover removed but the power on. Use the remote control to adjust the image. Take the follow- ing procedures. 1. Focusing the projection lens (A) Replacing all the 3 LCD panels 1.

  • Page 10: Electrical Adjustment

    XG-P25X ELECTRICAL ADJUSTMENT Hook up a signal generator, or a DOSV or Mac personal computer to the projector in order to feed the signals specified in the Adjusting conditions. Adjusting point Adjusting conditions Adjusting procedure » Make the following settings: EEPROM 1.

  • Page 11: Trouble Shooting Table

    XG-P25X TROUBLE SHOOTING TABLE Checking the PWB performance Video input in trouble RGB input in trouble Through-output in trouble Remote control in trouble Go to "Checking the video unit Feed test pattern signal from Through-output circuit in Go to "Checking the remote circuit".
  • Page 12 XG-P25X CHASSIS LAYOUT / CHASSIS-ANORDNUNG...
  • Page 13 XG-P25X BLOCK DIAGRAM / BLOCKSCHALTBILD...
  • Page 14 XG-P25X OVERALL WIRING DIAGRAM / GESAMTSCHALTPLAN...

  • Page 15: Description Of Schematic Diagram

    XG-P25X DESCRIPTION OF BESCHREIBUNG DES SCHEMATIC DIAGRAM SCHEMATISCHEN SCHALTPLANS VOLTAGE MEASUREMENT CONDITION: SPANNUNGSMESSUNGEN: 1. Voltages at test points are measured at the 1. Spannungen an den Prüfpunkten werden bei einer Netzspannung von 220V gemessen, Signale werden supply voltage of AC 220V. Signals are fed by a für die Wartung mit einem Farbbalken-Signal generator...
  • Page 16 XG-P25X WAVEFORMS / WELLENFORMEN (R), TP1101 (G), TP1201 (B), TP1301 P-SiG H :5µsec/div H :5µsec/div H :5µsec/div H :10µsec/div V :2V/div V :2V/div V :2V/div V :2V/div (R), Pin 10 of SC8405 (G), Pin 6 of SC8405 (B), Pin 2 of SC8405 Q5302 H :5µsec/div...
  • Page 17 XG-P25X Ë SIGNAL UNIT / SIGNALEINHEIT-1/3...
  • Page 18 XG-P25X Ë OUTPUT UNIT / AUSGANGSEINHEIT-1/7...
  • Page 19 XG-P25X Ë INPUT UNIT / EINGANGSEINHEIT-1/2...
  • Page 20 XG-P25X Ë OUTPUT SUB UNIT / AUSGANGS-HILFSEINHEIT...
  • Page 21 XG-P25X Ë DC/DC CONVERTER UNIT / DC/DC-KONVERTERSEINHEIT...
  • Page 22 XG-P25X Ë SOUND OUT UNIT / TONAUSGANGSEINHEIT...
  • Page 23 XG-P25X Ë R/C RECEIVER UNIT / FERNBEDIENUNGSEINHEIT...
  • Page 24 XG-P25X Ë OPERATION KEY UNIT / BEDIENUNGSTASTENEINHEIT...
  • Page 25 XG-P25X Ë POWER / AC INLET UNIT NETZEINHEIT / NETZEINGANGSEINHEIT...
  • Page 26 XG-P25X Ë INPUT UNIT / EINGANGSEINHEIT-2/2...
  • Page 27 XG-P25X Ë OUTPUT UNIT / AUSGANGSEINHEIT-2/7...
  • Page 28 XG-P25X Ë OUTPUT UNIT / AUSGANGSEINHEIT-3/7...
  • Page 29 XG-P25X Ë OUTPUT UNIT / AUSGANGSEINHEIT-4/7...
  • Page 30 XG-P25X Ë OUTPUT UNIT / AUSGANGSEINHEIT-5/7...
  • Page 31 XG-P25X Ë OUTPUT UNIT / AUSGANGSEINHEIT-6/7...
  • Page 32 XG-P25X Ë OUTPUT UNIT / AUSGANGSEINHEIT-7/7...
  • Page 33 XG-P25X Ë SIGNAL UNIT / SIGNALEINHEIT-2/3...
  • Page 34 XG-P25X Ë SIGNAL UNIT / SIGNALEINHEIT-3/3...
  • Page 35 XG-P25X TROUBLE SHOOTING TABLE (Continued) Checking the video system Is the lamp on? Go to "Lamp fails to light-up". Is specified voltage fed to EA connectors? Check the power circuit and its parts. Are there signal inputs at pins (9),...
  • Page 36 XG-P25X TROUBLE SHOOTING TABLE (Continued) Checking RGB signal output circuit Are there RGB input waveforms at pins (1), (3) and (5) of IC4301? Check the IC3302 of input unit and its peripheral circuits. Are there output waveforms at pins (16), (18), (20) of IC4301?
  • Page 37 XG-P25X TROUBLE SHOOTING TABLE (Continued) No or unusual Y signal Is there Y signal input at pin (84) of IC4502? Check IC4502 and its peripheral circuits. Is there Y signal output at pin (7) of IC4501? Check IC4501 and its peripheral circuits.
  • Page 38 XG-P25X TROUBLE SHOOTING TABLE (Continued) Checking the output PWB unit Are there signal inputs at SC8405, SC8502, SC8404? Are voltages applied to EA connectors? If there is no signal at EA If there is no signal at P4302, connector or SC8404, SC8405...
  • Page 39 XG-P25X TROUBLE SHOOTING TABLE (Continued) No audio output Are there audio signal inputs at pins (2) and (23) of IC331? Check the input, the switching circuit of IC461 ~ IC464, and their peripheral circuit. Are there audio signal outputs at pins...
  • Page 40 XG-P25X TROUBLE SHOOTING TABLE (Continued) Power on Is the right input selected? Select the right input with remote control. Are the PC, video and LCP cables as specified and properly connected? Use the right cables or reconnect the cables. With the contrast control at maximum, does the image appear? Readjust the video system.
  • Page 41 XG-P25X TROUBLE SHOOTING TABLE (Continued) Lamp fails to light-up Turn on the power switch. Is discharging sound heard from the lamp? Is the lamp out of socket? Is the ballast cooling fan running? Replace the Reconnect the lamp. lamp into socket.
  • Page 42 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT Checking the PC PWB Is the user menu displayed onscreen? Check the onscreen display. Check the basic signal flow. The component signals and video signals flow in the same way from CVIC IC to DAC Check the RGB input.
  • Page 43 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Checking the RGB input Feed the sync-pulse- separated RGB signals to the INPUT1 or INPUT2 terminal. Using the control panel key or the remote controller, select INPUT1 or INPUT2. Does the image appear? Check the video input signals.
  • Page 44 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Checking the video input Check the input signal settings. Is there the video signal at the land of C8077? Input PWB defective. Check the sync signals. IC8025 or IC8004 defective. Checking the input signal...
  • Page 45 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Checking the sync signals Is there the vertical sync signal at TL8134? Is there the horizontal sync signal at TL8133? Check the input signal settings. Input PWB defective. Is there the vertical sync...
  • Page 46 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Checking the RGB signals Is the signal type selected for RGB? Make the RGB signal settings. Call the process mode. Select R, G and B individually from the pattern menu. Go to "Checking the GA4 and its peripheral parts".
  • Page 47 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Checking the GA4 and its peripheral parts Select R, G and B individually from the process mode pattern menu. Are the R, G and B video output signals as specified? GA4 checking ended.
  • Page 48 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Checking the component input (4801 not included) Feed the component signals to the INPUT 1 or INPUT2 terminal. Using the control panel key or the remote controller, select INPUT1 or INPUT2.
  • Page 49 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Checking the SOG circuit Measure the signal at TL8136 on the oscilloscope screen. Are the composite sync signals reproduced in the specified timing? The SOG circuit is okay. End. Measure the land of C8069 on the oscilloscope screen.
  • Page 50 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Checking the video input Feed the composite video signal to the INPUT4 terminal. Using the control panel key or the remote controller, select INPUT4. Select VIDEO as the signal type on the user menu.
  • Page 51 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Measure the VPC (IC8338) clock signal at TL8004. Is the clock signal as specified? IC8338 defective. Go to "Checking the video sync signal". IC8025 or its peripheral parts defective. Checking the video sync...
  • Page 52 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Are there the horizontal and vertical sync signals at TL8130 and TL8131? IC8302 or its peripheral parts defective. Is there the specified clock signal at FL8004? IC8338 or its peripheral parts defective.
  • Page 53 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Note: To ensure the Plug&Play system, first connect Checking the DVI digital input the cable to the INPUT3 terminal and then turn on the computer (signal generator) power. Feed the DVI digital signal to the INPUT3 terminal.
  • Page 54 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) Checking the DVI analog input Feed the DVI analog signal to the INPUT3 terminal. Select INPUT3 for the input terminal. Does the image appear? See if there are the R, G and B...
  • Page 55 XG-P25X TROUBLE SHOOTING TABLE FOR PC I/F UNIT (Continued) The DVI analog signals are SOG-separated by Checking the DVI SOG circuit CXA3516R. The Green signal is fed to the SOGIN2 terminal. The DVI SOG sync signal is selected using the bus switch (IC23).
  • Page 56 XG-P25X Adjusting point Adjusting conditions Adjusting procedure » Adjust the PSIG waveform to the one shown below. P SIGNAL 1. Connect the oscilloscope to TP1102 for red. 2. Make the following choice: Group : OUTPUT 2 PSIG Subject : PSIG-H : PSIG-L 2.5V DC...
  • Page 57 XG-P25X Adjusting point Adjusting conditions Adjusting procedure » Adjust the R1-BLK and B1-BLK data for the black RGB white 1. Feed the 32-step gray scale balance signal (XGA 60Hz). balance on the gray scale. Then adjust the R1- Group : OUTPUT 1...
  • Page 58 XG-P25X Adjusting point Adjusting conditions Adjusting procedure » Using the control switches or the remote controller 1. Feed the split color bar sig- NTSC color nal. buttons, adjust the difference between the 100% saturation level Group : VIDEO 1 white portion and the red portion to 0.25 ±0.02 Vp-p.
  • Page 59 XG-P25X Adjusting point Adjusting conditions Adjusting procedure » Using the control switches or the remote controller DVD Brighthess 1. Feed the color bar signal of buttons, adjust the setting until the black sig- the 480I component signal nal(0%) becomes bit-less.
  • Page 60 XG-P25X Adjusting point Adjusting conditions Adjusting procedure » In the process mode and select L1. Check the color Color system 1. Receive the color bar sig- performance nal. and tint. check » In the process mode and select L2. Check the pic- Video system 1.
  • Page 61 XG-P25X ADJUSTING THE PC INTERFACE (CPCi-0054CE11. PC I/F Unit) 1.The initialization of the set. 1) Press the S2601 switch to go to the process mode. 2) Perform S1 of the SSS menu. (S1 initializes only a PC I/F board. Don’t perform S2 because adjustment data except for the PC board are initialized.
  • Page 62 XG-P25X ADJUSTMENT PROCESS MENU LIST P20X( OUTPUT1 OUTPUT2 OUTPUT3 VIDEO1 VIDEO2 NOKO LINE PATTERN CVIC LENS SPECIAL Each menu list OUTPUT1 OUTPUT2 R-BRIGHT R1-BLK PSIG-H G-BRIGHT R1-GAIN PSIG-L B-BRIGHT G1-BLK R2-BLK G1-GAIN G2-BLK B1-BLK B2-BLK B1-GAIN OUTPUT3 VIDEO G-BRIGHT NTSC-H...
  • Page 63 XG-P25X Notes : 1 The eccentric cam is used for convergence adjustment. This means that the cam’s turning and the linear movement are not always uniform. 2 This model is not equipped with the LCD image adjustment mechanism. This is because the dichroic prism is used for image formation.
  • Page 64 XG-P25X Convergence and Focus Adjustments at a Glance Adjustment directions Adjustment Direction Definition Direction of LCD panel X direction LCD right and left Convergence Y direction LCD top and bottom θZ direction Rotation around Z axis LCD turning axis Z direction LCD optical axis θX direction...
  • Page 65 XG-P25X Replacing the G-LCD and B-LCD panels With the top cabinet removed (1) Disconnect the LCD flat cable from the output PWB connector. (2) Remove the lock screws "b" and "c". Detach the R/B adjusting plate or the G adjusting plate together with the LCD panel.
  • Page 66 XG-P25X Replacing the R-LCD panel (1) Disconnect the LCD flat cable from the output PWB connector. <Figure 1> (2) Remove the two screws "A". (3) Lift and detach the plate "B" together with the incident light deflection plate. <Figure 2>...
  • Page 67 XG-P25X Adjusting the optical axis of the mirrors (M1, M5 and M6) The optical axis must be readjusted if an eclipse happens with the R. G or B mirrors. Generally speaking, this adjustment is needed when any of the internal optical components has been replaced.
  • Page 68 XG-P25X Adjusting the lamp duct. turn Lock screws Lamp duct Adjustment procedure reguired when the lamp has been replaced and you can see ununifomity. (Case of Right and Left have ununifomity on the screen) (1) Let the lamp light up.
  • Page 69 XG-P25X 2. Removing the Intake cover and lamp unit. 2-1. Detach the intake cover. 2-2. Loosen the screw and slide the lamp cover out of position. 2-3. Remove the three screws and lift the lamp unit out of position. 3. Removing the rear body.
  • Page 70 XG-P25X 4. Removing the top panel. 4-1. Remove the five screws. 4-2. Remove the four screws. 4-3. Press on both sides of the set and undo the hooks. Lift the top body with lens shift knob and disconnect the connector.
  • Page 71 XG-P25X 5. Removing the PWB unit. 5-1. Remove the five screws and detach the PC I/F unit. 5-2. Disconnect the five connectors. 5-3. Remove the two screws and detach the output sub-PWB. 5-4. Disconnect the twelve connectors. 5-5. Take out the hexagonal supports.
  • Page 72 XG-P25X Reassembling precautions 5-7. Fit part a of the input PWB to the slit of the bottom cover. 5-8. Align the input PWB’s shield with the top of the AC inlet shield ( b ). 5-9. Before tightening up the screws (5-7) as well as the screws and hex nuts (5-8), move the PWB unit forward enough ( c ).
  • Page 73 XG-P25X 6. Removing the power / ballast / sound-out / bimetal unit assembly. 6-1. Remove the screw and disconnect the grounding wire from the shield case of the power/ballast unit. 6-2. Disconnect the connectors from the sound out PWB. 6-3. Take out the bimetal socket.
  • Page 74 XG-P25X 7. Removing the optical mechanism unit 7-1. Remove the two screws off the optical mechanism intake fan. 7-2. Remove the eight screws and take out the optical mechanism unit. 7-3. Remove the screw and disconnect the grounding wire. 7-4. Disconnect the connector and detach the AC inlet unit.
  • Page 75 XG-P25X Operating the Wireless Mouse Remote Control Remote Control Front View POWER buttons (ON/OFF) LENS button MENU button ENTER button Adjustment ( / / / ) buttons UNDO button ENLARGE buttons FREEZE button AUTO SYNC button GAMMA button BLACK SCREEN button...
  • Page 76 XG-P25X Connection Pin Assignments INPUT 1 RGB and OUTPUT (INPUT 1, 2) Signal Ports: 15-pin Mini D-sub female connector RGB Input Analog 1. Video input (red) 8. Earth (blue) 2. Video input 9. Not connected (green/sync on green) 10. GND 3.
  • Page 77 XG-P25X NOTE TO SERVICE NOTE POUR LE PERSONNEL PERSONNEL D’ENTRETIEN 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5...
  • Page 78 (Fig. 1). Note: Please obtain a lens cap before servicing a Remarque: Priére de se procurer un capuchon models XG-P25X that is received without one. d'optique acant d'entretien un modéle XG-P25X qui est livré sans. LENS CAP CAPUCHON D'OPTIQUE Figure 1.
  • Page 79 XG-P25X WARNING: High brightness light source, do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly in to the beam of light. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO MOISTURE OR WET LOCATIONS.

  • Page 80: Table Of Contents

    XG-P25X CONTENTS Page Page • SPECIFICATIONS ..........3 • BLOCK DIAGRAM ........... 60 • IMPORTANT SERVICE SAFETY • OVERALL WIRING DIAGRAM ......62 NOTES (for USA) ..........4 • DESCRIPTION OF SCHEMATIC DIAGRAM .. 64 • NOTE TO SERVICE PERSONNEL ....5 •...
  • Page 81 XG-P25X Ë PC I/F UNIT-1/8...
  • Page 82 XG-P25X Ë PC I/F UNIT-2/8...
  • Page 83 XG-P25X Ë PC I/F UNIT-3/8...
  • Page 84 XG-P25X Ë PC I/F UNIT-4/8...
  • Page 85 XG-P25X Ë PC I/F UNIT-5/8...
  • Page 86 XG-P25X Ë PC I/F UNIT-6/8...
  • Page 87 XG-P25X Ë PC I/F UNIT-7/8...
  • Page 88 XG-P25X Ë PC I/F UNIT-8/8...

  • Page 89: Printed Wiring Board Assemblies

    XG-P25X PRINTED WIRING BOARD ASSEMBLIES/ LEITERPLATTENEINHEITEN Signal Unit (Wiring Side)/ Signaleinheit (Leiterbahnseite) Signal Unit (Component Side)/ Signaleinheit (Bestückungsseite)
  • Page 90 XG-P25X Input Unit (Wiring Side)/ Eingangseinheit (Leiterbahnseite) Input Unit (Component Side)/ Eingangseinheit (Bestückungsseite)
  • Page 91 XG-P25X R/C Receiver Unit (Wiring Side)/ Fernbedienungseinheit (Leiterbahnseite) Output Unit (Wiring Side)/ Ausgangseinheit (Leiterbahnseite)
  • Page 92 XG-P25X R/C Receiver Unit (Component Side)/ Fernbedienungseinheit (Bestückungsseite) Output Unit (Component Side)/ Ausgangseinheit (Bestückungsseite)
  • Page 93 XG-P25X Output Sub Unit (Wiring Side)/ Ausgangs-Hilfseinheit(Leiterbahnseite) Sound Out Unit (Wiring Side)/ Tonausgangseinheit (Leiterbahnseite) Power Sub Unit (Wiring Side)/ Netz-Hilfseinheit (Leiterbahnseite) Power Unit (Wiring Side)/ Netzeinheit (Leiterbahnseite)
  • Page 94 XG-P25X Output Sub Unit (Component Side)/ Ausgangs-Hilfseinheit(Bestückungsseite) Sound Out Unit (Component Side)/ Tonausgangseinheit (Bestückungsseite) Power Sub Unit (Component Side)/ Netz-Hilfseinheit (Bestückungsseite) Power Unit (Component Side)/ Netzeinheit (Bestückungsseite)
  • Page 95 XG-P25X DC/DC Converter Unit DC/DC Converter Unit (Wiring Side)/ (Component Side)/ DC/DC-Konverterseinheit DC/DC-Konverterseinheit (Leiterbahnseite) (Bestückungsseite) Inlet Unit (Component Side)/ Inlet Unit (Wiring Side)/ Eingangseinheit (Bestückungsseite) Eingangseinheit (Leiterbahnseite)

  • Page 96: Parts List

    Contact your nearest SHARP Parts Distributor. For location of SHARP Parts Distributor, 5. KODE 6. QUANTITÄT Please call Toll-Free; 1-800-BE-SHARP in CANADA: Contact SHARP Electronics of Canada Limited Phone (416) 890-2100. MARK: SPARE PARTS-DELIVERY SECTION MARKIERUNG : ERSATZTEILE-LIEFERUNG Ref. No.
  • Page 97 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA463DE11 C4164 VCKYCY1EF104Z J 0.1 Ceramic C4201 VCEAPF1CW106M J 10 Electrolytic SIGNAL UNIT (Continued) C4203 VCCCCY1HH221J J 220p Ceramic C4204 VCCCCY1HH220J J 22p Ceramic Q4304 VSDTC114EU/-1 J DTC114EU...
  • Page 98 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA463DE11 R4206 VRS-CA1JF221J J 220 1/16W Metal Oxide R4207 VRS-CY1JF821J J 820 1/16W Metal Oxide SIGNAL UNIT (Continued) R4208 VRS-CA1JF101J J 100 1/16W Metal Oxide R4209 VRS-CA1JF121J...
  • Page 99 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA463DE11 DUNTKA464DE11 SIGNAL UNIT (Continued) INPUT UNIT INTEGRATED CIRCUITS R4514 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide R4515 VRS-CY1JF102J J 1k 1/16W Metal Oxide IC461 VHiNJM2245M-1 J NJM2245M...
  • Page 100 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA464DE11 C3153 VCKYCY1EF104Z J 0.1 Ceramic C3155 VCKYCY1EF104Z J 0.1 Ceramic INPUT UNIT (Continued) C3156 VCEAPF0JW476M J 47 6.3V Electrolytic C3157 VCCCCY1HH330J J 33p Ceramic D3302 VHDMA157A//-1...
  • Page 101 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA464DE11 R3166 VRS-CY1JF103J J 10k 1/16W Metal Oxide R3167 VRS-CY1JF361J J 360 1/16W Metal Oxide INPUT UNIT (Continued) R3168 VRS-CY1JF361J J 360 1/16W Metal Oxide R3169 VRS-TW2ED750J...
  • Page 102 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA464DE11 IC5304 VHiM62320FP-1 J M62320FP IC5305 VHiM62352GP-1 J M62352GP INPUT UNIT (Continued) IC5401 VHiCA1875AM-1 J CXA1875AM IC5402 VHiSNHC153T-1 J SN74HC153PW FB3207 RBLN-0060TAZZ J Ferrtie Bead IC5403 VHiLM81++++-1...
  • Page 103 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA465DE11 L1302 VP-1M100J1R6N J Peaking 10µH OUTPUT UNIT (Continued) CAPACITORS C331 VCEAPF1CW476M J 47 Electrolytic Q5452 VSDTC144EUA-1 J DTC144EUA C332 VCKYTV1CF105Z Ceramic Q5453 VSDTC144EUA-1 J DTC144EUA C333...
  • Page 104 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA465DE11 C1571 VCCCCY1HH100D J 10p Ceramic C1572 VCCCCY1HH100D J 10p Ceramic OUTPUT UNIT (Continued) C1573 VCCCCY1HH100D J 10p Ceramic C1611 VCKYCY1EF104Z J 0.1 Ceramic C1226 RC-KZA048WJZZ J 10...
  • Page 105 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA465DE11 R1027 VRS-CY1JF272J J 2.7k 1/16W Metal Oxide R1028 VRS-CY1JF101J J 100 1/16W Metal Oxide OUTPUT UNIT (Continued) R1029 VRS-CY1JF101J J 100 1/16W Metal Oxide R1030 VRS-CY1JF101J...
  • Page 106 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA465DE11 R1557 VRS-CY1JF104J J 100k 1/16W Metal Oxide R1559 VRS-CY1JF104J J 100k 1/16W Metal Oxide OUTPUT UNIT (Continued) R1560 VRS-CY1JF104J J 100k 1/16W Metal Oxide R1561 VRS-CY1JF104J...
  • Page 107 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA465DE11 R5306 VRS-CY1JF103J J 10k 1/16W Metal Oxide R5307 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide OUTPUT UNIT (Continued) R5308 VRS-CY1JF101J J 100 1/16W Metal Oxide R5309 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide...
  • Page 108 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA465DE11 FB1205 RBLN-0059CEZZ J Ferrite Bead FB1206 RBLN-0059CEZZ J Ferrite Bead OUTPUT UNIT (Continued) FB1301 RBLN-0059CEZZ J Ferrite Bead FB1302 RBLN-0059CEZZ J Ferrite Bead R7058 VRS-TX2HF2R2J J 2.2...
  • Page 109 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA466DE11 DUNTKA468DE11 OUTPUT SUB UNIT (Continued) DC/DC CONVERTER UNIT C7208 VCEAPF1EW336M J 33 Electrolytic INTEGRATED CIRCUITS C7209 VCEAPF1EW336M J 33 Electrolytic IC7301 RCNVD0014CEZZ J 0014CE C7210 VCKYCY1CF104Z J 0.1...
  • Page 110 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code RUNTKA024WJZZ ZD702 9FJ0D31181675 J Zener Diode, RD18JSAB2TA AC ZD703 9FJ0D31181695 J Zener Diode, RD24JSAB2TA AC AC INLET UNIT PACKAGED CIRCUITS PACKAGED CIRCUIT å PC701 9FJ0F10010931 J Photo Coupler å...
  • Page 111 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code DUNTKA013WJZZ 9FJ0A20001530 J Glass Tube 9FJ0G20003010 J Clamp POWER UNIT (Continued) 9FJ0G20010200 J Insulock Tie R711 9FJ0R73010080 J 10 Fuse Resistor AK å R712 9FJ0R17070491 J 10...
  • Page 112 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code CPCi-0054CE11 C8021 9DK001-42096 J 0.01 Ceramic C8022 9DK001-42096 J 0.01 Ceramic PC I/F UNIT (Continued) C8023 9DK001-42096 J 0.01 Ceramic C8024 9DK001-40077 J 10 X8005 9DK001-80024 J Crystal, 32.500MHz C8025 9DK001-42096 J 0.01...
  • Page 113 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code CPCi-0054CE11 C8574 9DK001-40089 J 47 6.3V Electrolytic C8575 9DK001-42096 J 0.01 Ceramic PC I/F UNIT (Continued) C8576 9DK001-42096 J 0.01 Ceramic C8577 9DK001-42096 J 0.01 Ceramic C8214 9DK001-42094 J 0.1...
  • Page 114 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code CPCi-0054CE11 RESISTORS FL8001 9DK001-50110 1/10W Jumper PC I/F UNIT (Continued) FL8098 9DK001-50110 1/10W Jumper FL8099 9DK001-50110 1/10W Jumper C8697 9DK001-42096 J 0.01 Ceramic FL8110 9DK001-50110 1/10W Jumper C8707 9DK001-42094 J 0.1...
  • Page 115 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code CPCi-0054CE11 R8756 9DK001-50111 J 75 1/4W Chip 3216 R8757 9DK001-50149 1/16W Chip 1608 PC I/F UNIT (Continued) R8758 9DK001-50149 1/16W Chip 1608 R8759 9DK001-50177 J 1k 1/16W Chip 1608...

  • Page 116: Ë Cabinet And Mechanical Parts

    XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code 3-16 LANGQ1345CEFW J Leaf Switch Angle CABINET AND MECHANICAL PARTS 3-17 LANGS0125CEFW J Speaker Angle, x2 3-18 LX-HZ3106CEFD J Screw, x4 3-19 LX-NZ3155CEFF J Speed Nut, x4 Not Available –...
  • Page 117 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code CABINET AND MECHANICAL PARTS (Continued) LHLDW1080CEZZ J Wire Holder PSLDC3117CEFW J R/C Shield PSLDM4661CEFW J Terminal Shield PSLDM4663CEFW J Output Shield PSLDM4664CEFW J PC I/F Shield LHLDW1046CEZZ...
  • Page 118 XG-P25X CABINET AND MECHANICAL PARTS 4-2-4 4-2-1 4-2-3 2-1-2 2-1-1 4-1-1 4-2-2 4-1-2 1-1-1 1-1-3 1-1-2 1-1-4 1-1-2 8-1-2 8-2-2 3-1-7 8-1-1 8-2-1 3-1-8 3-31 3-30 3-22 3-30 3-15 3-12 3-14 3-14 3-29 3-24 3-27 3-1-13 3-11 3-13 3-1-15 3-12...
  • Page 119 XG-P25X OPTICS MECHANISM PARTS...
  • Page 120 XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code 6-68 PSLDP3085CEFW J PBS Aperture OPTICS MECHANISM PARTS 6-74 PLNS-0127CEZZ J L2, G 6-75 LANGK0770CEFW J PF Plate for GB out PF, x3 6-76 PCOVZA005WJFW J Net CCHSK0062CE15 J Optics Mecha.

  • Page 121: Ë Packing Parts

    XG-P25X Ref. No. Part No. Description Code Ref. No. Part No. Description Code PACKING PARTS SUPPLIED ACCESSORIES (NOT REPLACEMENT ITEM) ACCESSORIES SPAKCA078WJZZ – Packing Case — SPAKP0809CEZZ – Polystyrene Cover — PCAPH1056CESA J Lens Cap SPAKX2951CEZZ – Buffer Material —...

  • Page 122: Packing Of The Set

    XG-P25X PACKING OF THE SET / VERPACKEN DES GERÄTS CD-ROM Extra Air Filter Guarantee Card Operation Manual Quick Reference CD-ROM Manual Soft Wear Caution Questionnaire Card (Back for Japanese Sending) ID Label Sleeve AC Cord (Box for Accessories) Computer Audio Cable...
