LDetek LDP1000 Series User Manual

Hide thumbs Also See for LDP1000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDP1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for LDetek LDP1000 Series

Summary of Contents for LDetek LDP1000 Series

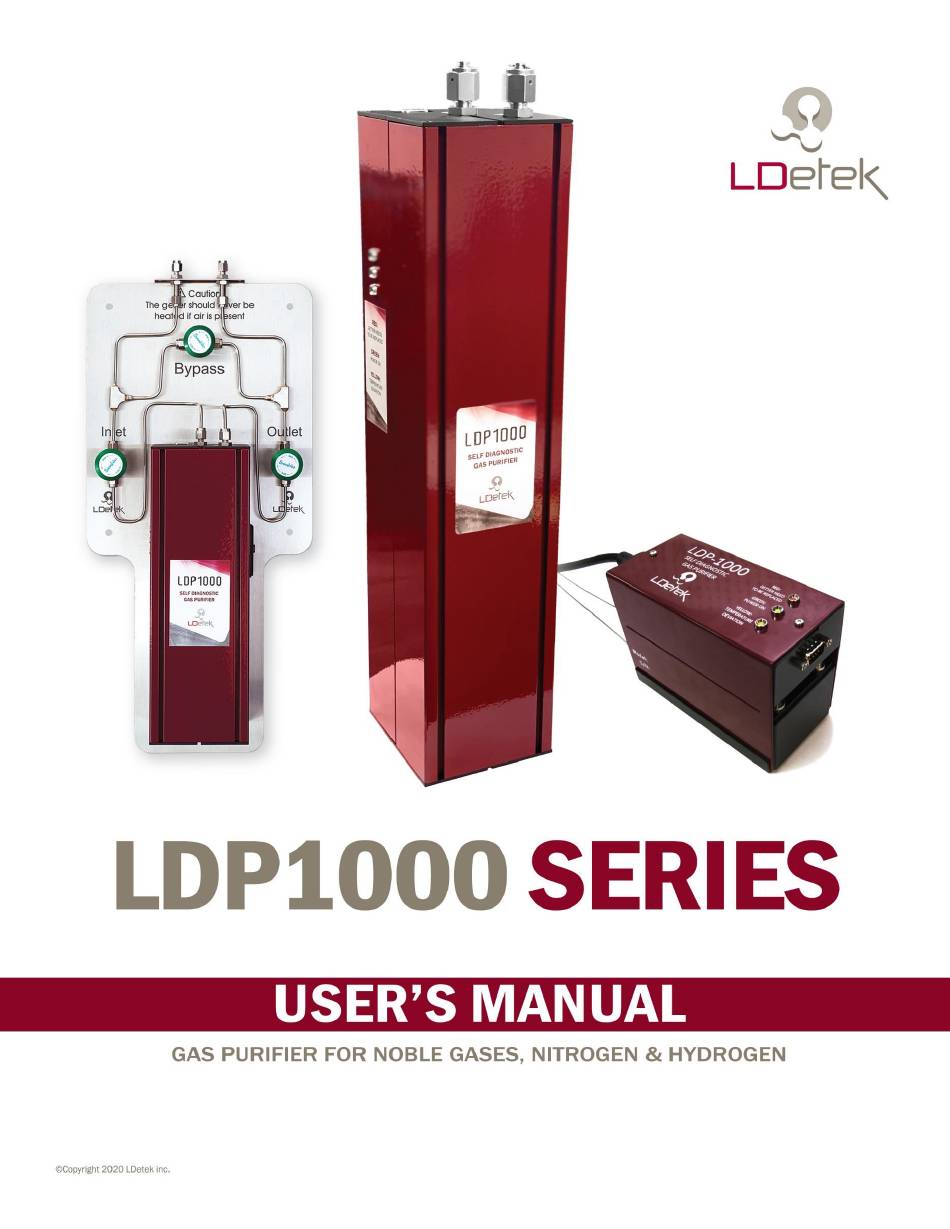

  • Page 3 LDP1000 Gas Purifier USER’S MANUAL V2.0 Printed in Canada Copyright 2016...

  • Page 4: Table Of Contents

    7.1 How to setup HyperTerminal ....................16 8. Drawings ..........................18 8.1. LDP1000 Standard and Large series wiring diagram ............18 8.2. Compact-LDP1000 series wiring diagram................. 19 8.3. LDP1000 Standard and Large series dimensions .............. 20 8.4. Compact-LDP1000 series dimensions ................20 8.5.

  • Page 5: Forwarning

    In no event shall LDetek be liable for any damages arising out of or related to this document or the information contained in it.

  • Page 6: Warranty & Service Policies

    THIS WARRANTY IS THE ONLY WARRANTY MADE BY LDETEK INC. WITH RESPECT TO THE GOODS DELIVERED HEREUNDER, AND NO EMPLOYEE, REPRESENTATIVE OR OTHER PERSON OR ENTITY IS AUTHORIZED TO ASSUME FOR LDETEK INC ANY OBLIGATION OR LIABILITY BEYOND OR AT VARIANCE WITH THIS WARRANTY IN CONNECTION WITH THE SALE OF LDETEK PRODUCTS.
  • Page 7 LDP1000 User’s manual MANUFACTURED BY SELLER GIVING RISE TO THE CAUSE OF ACTION. BUYER AGREES THAT IN NO EVENT SHALL SELLER'S LIABILITY EXTEND TO INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES. CONSEQUENTIAL DAMAGES SHALL INCLUDE BUT ARE NOT LIMITED TO, LOSS OF ANTICIPATED PROFITS, LOSS OF USE, LOSS OF REVENUE, COST OF CAPITAL AND DAMAGE OR LOSS OF OTHER PROPERTY OR EQUIPMENT.
  • Page 8 LDetek Inc. reserves the right to interrupt all business relationship and warranty or service if there is any tentative from any customers to reverse engineering any of LDetek products or to tamper with any sealed module.

  • Page 9: Declaration Of Conformity

    LDP1000 User’s manual 3. DECLARATIONS OF CONFORMITY Page 6...
  • Page 10 LDP1000 User’s manual Page 7...
  • Page 11 LDP1000 User’s manual Page 8...

  • Page 12: Specifications

    Flow: Compact and Standard 200 cc/min (nominal) 200 cc/min (nominal) 200 cc/min (nominal) LDP1000 series 1 LPM (maximum) 1 LPM (maximum) 1 LPM (maximum) Large-LDP1000 series 2 LPM (nominal) 2 LPM (nominal) 2 LPM (nominal) 10 LPM (maximum)
  • Page 13 10ppm inlet impurities 10ppm inlet impurities Flow: Compact and Standard 200 cc/min (nominal) 200 cc/min (nominal) LDP1000 series 1 LPM (maximum) 1 LPM (maximum) Large-LDP1000 series 2 LPM (nominal) 2 LPM (nominal) 10 LPM (maximum) 10 LPM (maximum) 1/8’’,1/4’’...

  • Page 14: Cautions And Installation Information

    In no event shall LDetek Inc. be liable for any direct, indirect, special, incidental, or consequential damage whether based on contract, tort, or any other legal theory and whether advised of the possibility of such damages.

  • Page 15: Installation Steps

    LDP1000 User’s manual 5.2. Installation steps 1. After removing the purifier from the shipping container and protective wrapping, ensure that both end caps are tight, and that the unit is in good condition. 2. Make sure that the fittings in the gas line match those supplied with the purifier. 3.

  • Page 16: Installation Diagrams

    LDP1000 User’s manual 5.3. Installation Diagrams Suggested installation for a Noble Gas/Nitrogen/Carbon dioxide and Oxygen Gas Purifier model: Double Stage Stainless Steel regulator analytical instruments Purging valve (Vent to LDP1000 atmosphere) Gas Purifier UHP Grade 5.0 or better Suggested installation for Hydrogen Gas Purifier model: Double Stage Stainless Steel regulator analytical instruments...

  • Page 17: Lifetime And Led Indication

    It could be caused by air contaminations, heater problem, temperature sensor problem or other reasons. Please contact LDetek factory. Such alarm can result to a hazardous situation. Please refer to Warning section in this manual. Page 14...

  • Page 18: Rs-232 Serial Communication

    LDP1000 User’s manual 7. RS-232 SERIAL COMMUNICATION The LDP1000 has a serial port that allows a communication to be transmitted to the Serial acquisition software. The standard Windows Hyper Terminal software is suggested to get the acquisition of the data transmitted by the LDP1000. The data transmitted are the Getter#1 operating temperature and Getter#2 operating temperature.

  • Page 19: How To Setup Hyperterminal

    LDP1000 User’s manual 7.1 How to setup HyperTerminal See below the instruction to setup the HyperTerminal: 1. Select the Serial Port of your PC where you have connected the serial cable. In this case it was com # 8 2. The Baud rate must be set at 9600. 3.
  • Page 20 LDP1000 User’s manual Once the HyperTerminal is configured, open the connection and the data will start to be transmitted to the Hyper Terminal software. See screenshot below that demonstrate an example of the data transmitted. The data are transmitted every 5 seconds. Temperature_1 is the temperature of the Getter #1 (also called 1st bed of purification) Temperature_2 is the temperature of the Getter #2 (also called 2e bed of purification) This feature is used as a troubleshooting tool.

  • Page 21: Drawings

    LDP1000 User’s manual 8. DRAWINGS 8.1. LDP1000 Standard and Large series wiring diagram Cable #4 Heater #2 Cable #5 Thermal Cutoff switch Heater #1 Cable #2 Thermocouple #1 RedLedLed Cable #3 Green LedLed Thermocouple #2 YellowLed Internal PCB RS-232 Pin A CorcomPin C Connector Module Pin B...

  • Page 22: Compact-Ldp1000 Series Wiring Diagram

    LDP1000 User’s manual 8.2. Compact-LDP1000 series wiring diagram Heater #1 Thermocouple #2 Heater #2 Thermocouple #1 Thermal Cutoff switch Programming connector Power cable Red led Green led Yellow led 2 x Power fuses 1Amp RS-232 connector Page 19...

  • Page 23: Ldp1000 Standard And Large Series Dimensions

    LDP1000 User’s manual 8.3. LDP1000 Standard and Large series dimensions 8.4. Compact-LDP1000 series dimensions Page 20...

  • Page 24: Supporting Plate With Isolation Valves Option (Large Version Of Ldp1000 Mounted)

    LDP1000 User’s manual 8.5. Supporting plate with isolation valves option (large version of LDP1000 mounted) Page 21...

  • Page 25: Maintenance

    LED indication section of this manual for detailed explanations of the alarms. The LDP1000 cartridge can be easily changed on site. See following procedure that explains how to do it. Please contact LDetek at info@ldetek.com to get a replacement cartridge.
  • Page 26 LDP1000 User’s manual Step 4: Step 3: Disconnect Remove the two connectors on the other screws on the circuit identified as bottom plate that J1-J2-J4-J5. Refer are used to fix the to wiring diagram if front plate. necessary. Step 5: Remove the four screws fixing the internal box.

  • Page 27: Regeneration Mode (Available For O2/Co2 Model Only)

    Note for high purity version: A new face seal must be installed each time to ensure a good sealing. Disposing of spent getter cartridges Obtain a return material authorization number from LDetek. Send an email to info@ldetek.com to do so.
  • Page 28 200sccm with 5ppm H2O inlet impurity level, the regeneration interval will be every 6 months. To regenerate the purifier, you may either: A) Obtain a return material authorization number from LDetek. Send an email to info@ldetek.com do so. The RMA # should appear on the outside of the box.

  • Page 29: Ordering Information

    3 valves. A bypass valve that allow maintenance of the unit or bypass flow of the unit. An inlet & outlet isolation valve to allow isolation of the purifier when none operating. The mounting of it is leak proof and tested by LDetek.

  • Page 30: Spare Parts

    LDP1000 User’s manual 10.2 Spare parts Description Part Number Getter Replacement getter (specify LDP1000 serial number when ordering) this is to ensure the right getter version is sent. LDP1000FK LDP1000 fuses kit LDP1000GS LDP1000 gasket kit (for VCR version only) Compact-LDP1000FK Compact-LDP1000 fuses kit Page 27...
  • Page 31 LDP1000 User’s manual Notes : _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________...
  • Page 32 LDP1000 User’s manual Thanks for using LDetek Products...
  • Page 34 LDP1000 User’s manual...
