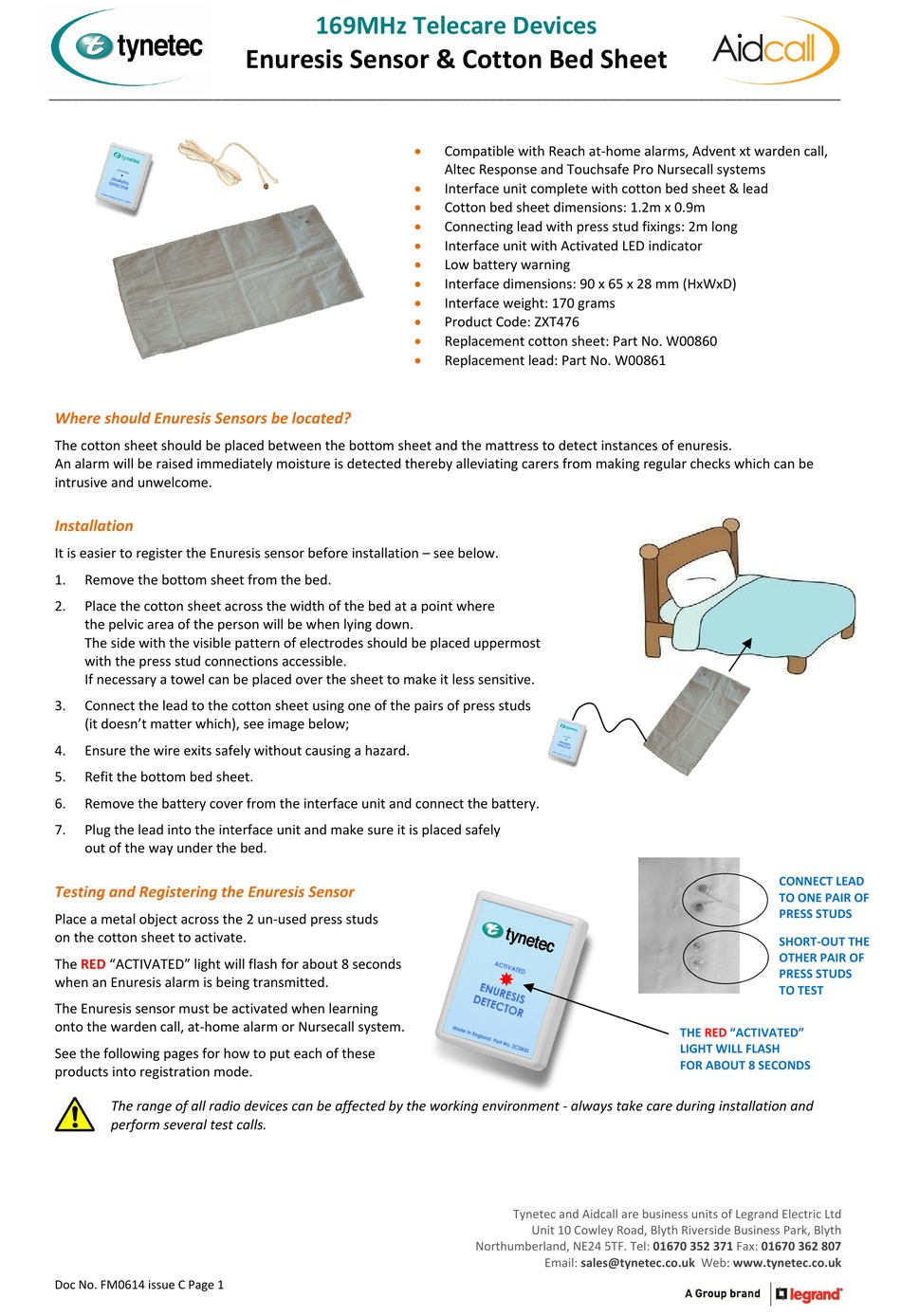

Tynetec ZXT476 Installation Manual

__________________________________________________________________________________________________________
Where should Enuresis Sensors be located?
The cotton sheet should be placed between the bottom sheet and the mattress to detect instances of enuresis.
An alarm will be raised immediately moisture is detected thereby alleviating carers from making regular checks which can be
intrusive and unwelcome.
Installation
It is easier to register the Enuresis sensor before installation – see below.
1. Remove the bottom sheet from the bed.
2. Place the cotton sheet across the width of the bed at a point where
the pelvic area of the person will be when lying down.
The side with the visible pattern of electrodes should be placed uppermost
with the press stud connections accessible.
If necessary a towel can be placed over the sheet to make it less sensitive.
3. Connect the lead to the cotton sheet using one of the pairs of press studs
(it doesn't matter which), see image below;
4. Ensure the wire exits safely without causing a hazard.
5. Refit the bottom bed sheet.
6. Remove the battery cover from the interface unit and connect the battery.
7. Plug the lead into the interface unit and make sure it is placed safely
out of the way under the bed.
Testing and Registering the Enuresis Sensor
Place a metal object across the 2 un‐used press studs
on the cotton sheet to activate.
The RED "ACTIVATED" light will flash for about 8 seconds
when an Enuresis alarm is being transmitted.
The Enuresis sensor must be activated when learning
onto the warden call, at‐home alarm or Nursecall system.
See the following pages for how to put each of these
products into registration mode.
The range of all radio devices can be affected by the working environment ‐ always take care during installation and
perform several test calls.
Doc No. FM0614 issue C Page 1
169MHz Telecare Devices
Enuresis Sensor & Cotton Bed Sheet











Compatible with Reach at‐home alarms, Advent xt warden call,
Altec Response and Touchsafe Pro Nursecall systems
Interface unit complete with cotton bed sheet & lead
Cotton bed sheet dimensions: 1.2m x 0.9m
Connecting lead with press stud fixings: 2m long
Interface unit with Activated LED indicator
Low battery warning
Interface dimensions: 90 x 65 x 28 mm (HxWxD)
Interface weight: 170 grams
Product Code: ZXT476
Replacement cotton sheet: Part No. W00860
Replacement lead: Part No. W00861

Tynetec and Aidcall are business units of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807
Email: sales@tynetec.co.uk Web: www.tynetec.co.uk
CONNECT LEAD
TO ONE PAIR OF
PRESS STUDS
SHORT‐OUT THE
OTHER PAIR OF
PRESS STUDS
TO TEST
THE RED "ACTIVATED"
LIGHT WILL FLASH
FOR ABOUT 8 SECONDS
