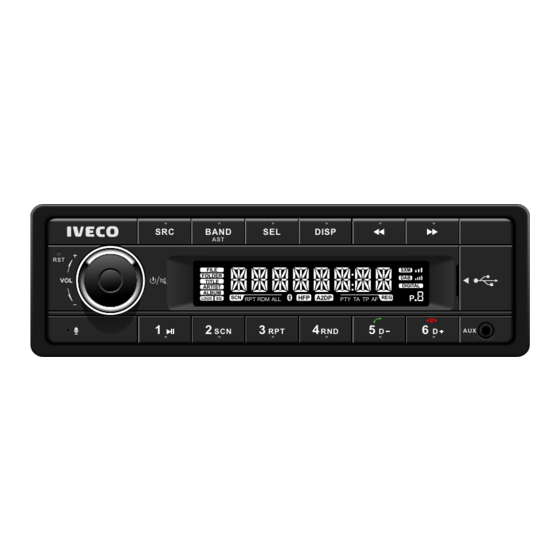

- Page 1 BAND DISP FILE FOLDER TITLE DIGITAL ARTIST ALBUM A2DP LOUD RPT RDM TA TP RADIO / USB MP3 / WMA / Bluetooth® Technology OWNER'S MANUAL ACR313UBA-IVE...
-
Page 2: Table Of Contents
Safety Information Specifications Contents General Thank you for purchasing this product, please Safety Information ........1 read the manual carefully before operating, Specifications..........1 Power supply: 9V~16V DC and reserve it for future reference. Maximum power output: 4x 40W Panel Controls..........2 PRECAUTIONS Suitable speaker impedance: 4ohm... -
Page 3: Panel Controls
Panel Controls (1). Power button - Display System clock (short press) (10). - MP3 previous folder - Power on/off - User Setting Menu (long press) - Dial/Call transfer - Mute (short press) - Rotate the VOL knob to adjust volume. (6). << Button (11). - MP3 random play - Radio mode (2). Source Button Automatic seek the station (12). - MP3 repeat play - Switch audio source - MP3 mode Select the previous track (13). - Scan play (3). Band /AST Button - Band switch: (7). >> Button (14). - Play/pause FM1/FM2/FM3/AM1/AM2 - Radio mode... -
Page 4: General Operation
General Operation Sound setting Power On/Off Button Clock Setting Predefined sound effects Press the [ ] button to turn the unit on when The clock time can be adjusted manually by The Radio provides different predefined the vehicle ignition switch is on. Press and long pressing the [DISP] button to set the sound effects . -
Page 5: Radio
Radio Bluetooth Functions Pairing AM/FM Radio Selection Recall Stored Favourites Use this function to establish a connection To access AM/FM Radio press the [SRC] To recall a stored favourite push the between the unit and your mobile phone. button and select Tuner. according preset button. -
Page 6: Usb/Mp3/Wma
Bluetooth Functions USB/MP3/WMA Loading USB equipment Repeat Distribution Profile. The mobile phones supporting this function can transmit stereo Plug the USB device into the socket. The unit Push the [3 RPT] button to activate repeat file/ audio, whereas the ones not supporting this automatically starts playing the music and the repeat fold/repeat off. -
Page 7: System Setting
System Setting PIN CODE Bluetooth Pairing code is 1234 by default, can be changed by pressing the SEL button and adjust each number with the Vol Knob. DIMMING To select auto, manual and off. INFO SCL Enable automatic display of Artist and Song. CLOCK To adjust hours and minutes. -
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS Wiring Diagram Pin N° Note Pin N° Note CAN Low Rear R+ CAN High Rear R- Telephone Mute Low Front R+ Ignition Front R- Antenna Remote (12V) Front L+ Illumination Front L- Battery+ Rear L+ Power Ground Rear L- Aux 2 Rear Left Mic- Aux 2 Rear Right... -
Page 9: Troubleshooting
TROUBLESHOOTING The following checklist can help you solve some problems which you may encounter when using the unit. Before consulting it, check the connections and follow the instructions in the user manual. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell can cause fire or electric shock, immediately stop using it and call the store where you purchased it. - Page 10 • Reorient or relocate the receiving antenna. FCC STATEMENT 1. This device complies with Part 15 of the • Increase the separation between the equipment and receiver. FCC Rules. Operation is subject to the • Connect the equipment into an outlet on a following two conditions: (1) This device may not cause harmful circuit different from that to which the receiver interference, and...
- Page 11 Continental Aftermarket & Services GmbH Sodener Straße 9 There are no restrictions of use 65824 Schwalbach Germany P/N:127075002XXX...
