Summary of Contents for Continental Refrigerator CD7426U-OR

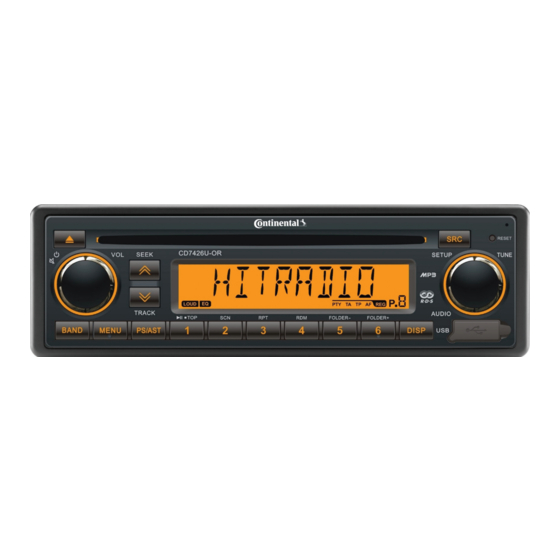

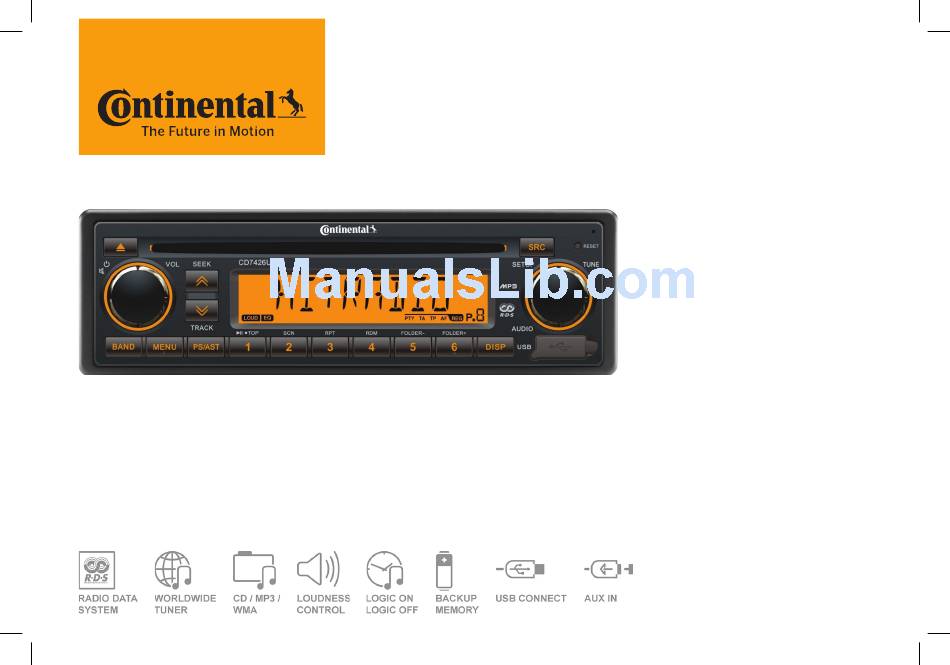

- Page 1 CD7426U-OR CD RADIO / USB MP3 / WMA 12V OWNER’S MANUAL CD7426U-OR_EN.indd 1 29/04/15 11:38...
-
Page 2: Table Of Contents
Safety Information Contents Precautions • Do not touch the unlabeled side. Safety Information ......... 2 • Do not attach any seal, label or data protec- Contents ............2 • Use only in a 12-volt DC negative-ground tion sheet to either side of a disc. electrical system. -
Page 3: Panel Controls
Panel Controls 1. - Disc eject 11. - Display play time and clock in the CD Radio 2. - Rotate to adjust volume. state. Disc(when disc is in) - Radio: Mute - the LCD will display the ID3 TAG USB(when USB inserted) - CD/MP3: Pause information recycle: file name/folder name/ AUX IN... -
Page 4: Operate Guide
Operate Guide Disc Load / Eject EQ Loud Mode BEEP setting: The beep tone feature allows the selection of an audible beep tone to be heard Press the [TUNE] Knob and rotate to se- Load : Insert the disc into the slot. each time the menu is accessed. -
Page 5: Sound Setting
Operate Guide Sound Setting MP3 Track Search Press the [TUNE] knob to enter sound effect setting mode. First press shows current EQ. CD/MP3 mode: Rotate the [TUNE] knob to changes BEAT EQ Press the [MENU] button to select “TRACK in this order: SCH”... -
Page 6: System Setting Item List
System Setting Item List Radio region: Europe Radio source CD source SETUP SETUP TA RETUN RETUNE L RETUNE S SCROLL CLOCK _ _:00 00:_ _ 12/24H 24HOURS 12HOURS BEEP DX/LO SWC SET ST/MONO STEREO MONO LOGIC CLOCK _ _:00 00:_ _ 12/24H 24HOURS 12HOURS... -
Page 7: Usb Mp3/Wma Overview
USB MP3/WMA Overview Note on MP3 • When playing a disc of 8kbps or VBR*, the In this case, data may not be reproduced elapsed playing time in the display window correctly. High quality CD-R or CD-RW disc is • MP3 is short for MPEG Audio Layer 3 and will not be correct and also the intro play recommended. -
Page 8: Electrical Connections
Electrical Connections Wiring Diagram SWRC Rear Right+/Purple Rear Right-/Purple and Black White TeleMute/Brown and Black Front Right+/Gray ACC-IN/Red Front Right-/Gray and Black Front Left+/White ANT REMOTE/Blue and White ILLUMINATION/Pink Front Left-/White and Black Battery/Yellow Rear Left+/Green Ground/Black Rear Left-/Green and Black CD7426U-OR_EN.indd 8 29/04/15 11:38... -
Page 9: Troubleshooting
Troubleshooting If you suspect something is wrong, immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell, can cause fire or electric shock. Immediately stop using it and call the store where you purchased it. Never try to repair the unit yourself because it is dangerous to do so. -
Page 10: Specifications
Specifications General Disc Player Power supply: 24 V DC negative ground System: Disc digital audio system Maximum power output: 15 W x 4 channels (4 ) Frequency response: 20 Hz - 20 KHz Suitable speaker impedance: Signal/noise ratio: > 72 dB (dBA) ESP: 10 s (CD-DA)/40 s (MP3) Total harmonic distortion:... -
Page 11: Fcc
FCC STATEMENT television reception, which can be determined by turning the equipment off and on, the user 1. This device complies with Part 15 of the is encouraged to try to correct the interference FCC Rules. Operation is subject to the by one or more of the following measures: following two conditions: Reorient or relocate the receiving antenna. - Page 12 Continental Trading GmbH Soderner Str. 9 65824 Schwalbach Germany Support & Download www.vdo.com CD7426U-OR_EN.indd 12 29/04/15 11:38...
