CaryMart S4U-DC09 Manual

RF Wireless Remote Control Radio Controller / Transmitter & Receiver

Package Include:

1 x Receiver: S4U-DC09 / S4U-DC12 / S4U-DC24 (4 Channel / Four Control Modes)
2 x Transmitter: C-4
1 x User manual

Feature:

Wireless control, easy to install
Control Lights, Motors, Fans, electrically operated Doors / Locks / Windows / Blinds / Cars or Other Appliances with AC110~240V or DC0~28V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass
through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Use ULN2003 to drive relay, with strong anti-interference.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 315MHz / 433MHz

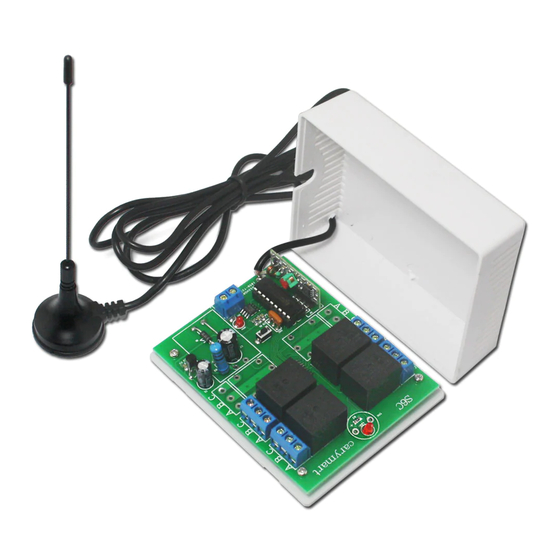

Receiver:

Model No.: S4U-DC09 / S4U-DC12 / S4U-DC24
Channel: 4 CH
Control Modes: Toggle, Momentary, Momentary + Toggle, Latched
Coding Type: Fixed code
Coding Setting: By learning
Power Supply (Operating Voltage): DC12V±1V (S4U-DC12), DC9V± 1V (S4U-DC09), DC24V±1V (S4U-DC24)
Working Voltage Range of Relay: AC110~240V or DC0~28V
PCB size: 94mm x 73mm x 21mm
Case size: 100mm x 80mm x 28mm
Static Current: ≤6mA
Maximum Power: 10A / each channel

Transmitter:

Model No.: C-4
Channel: 4 CH
Remote Control Distance: 100m / 300ft (theoretically)
Encode: Fixed code by soldering
Unit size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Usage:

Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as
following operation):
1) Learning Toggle control mode: When the receiver is in the status of LEARNING, press button 1 of the remote control.
Control mode Toggle (Channel 1~4): Press -> On; Press again -> Off.
Press button 1: Turn on relay 1 (connect B and C, disconnect A and B)
Press button 1 again: Turn off relay 1 (disconnect B and C, connect A and B)
...
Press button 4: Turn on relay 4 (connect B and C, disconnect A and B)
Press button 4 again: Turn off relay 4 (disconnect B and C, connect A and B)
2) Learning Momentary control mode: When the receiver is in the status of LEARNING, press button 2 of the remote control.
Control mode Momentary (Channel 1~4): Press and hold -> On; Release -> Off.
Press and hold button 1: Turn on relay 1 (connect B and C, disconnect A and B)
Release button 1: Turn off relay 1 (disconnect B and C, connect A and B)
...
Press and hold button 4: Turn on relay 4 (connect B and C, disconnect A and B)
Release button 4: Turn off relay 4 (disconnect B and C, connect A and B)
3) Learning Momentary (Channel 1~2) + Toggle (Channel 3~4) control mode: When the receiver is in the status of LEARNING, press button 3 of
the remote control.
4) Learning Latched control mode: When the receiver is in the status of LEARNING, press button 4 of the remote control.
Control mode Latched (Channel 1~4): Press -> On, other relays Off; Press other button -> Off.
Press button 1: Turn on relay 1 (connect B and C, disconnect A and B)
Turn off other relay (disconnect B and C, connect A and B)
