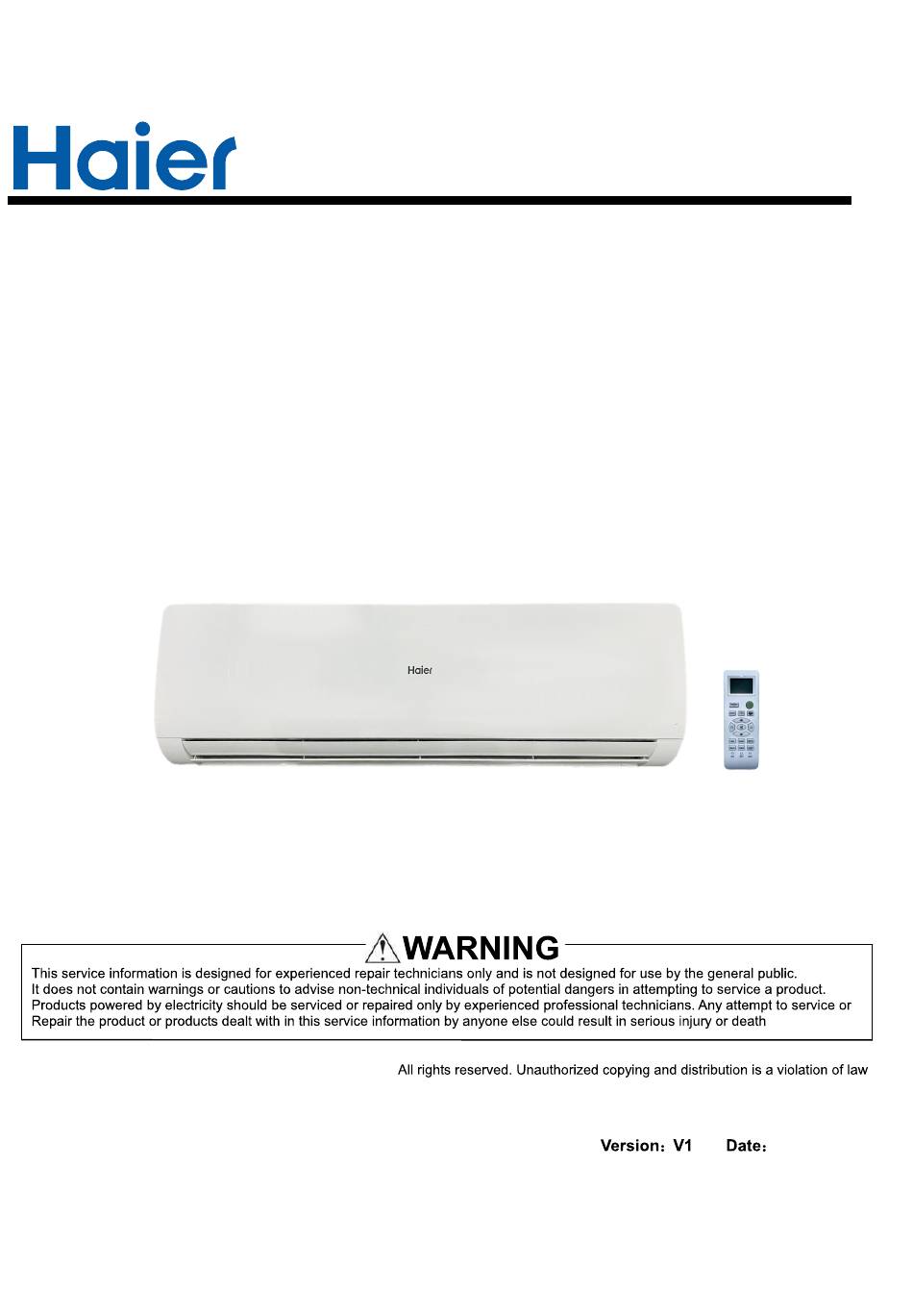

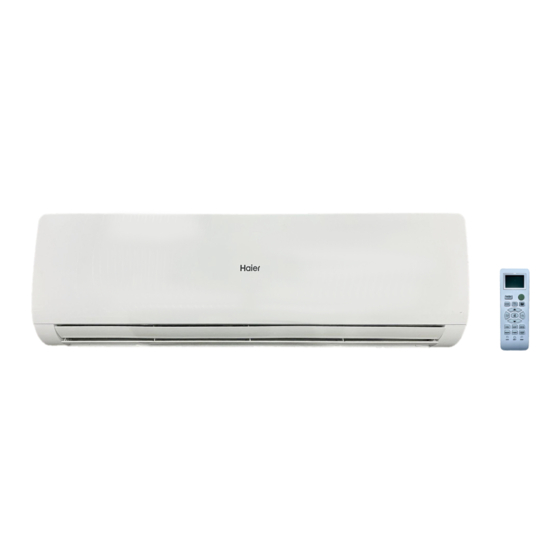

SERVICE MANUAL
Wall Mounted Type
ON/OFF
Model No.AS30PF2LAA
HSU-30LPA03/R2(T3&T4)
2022-05-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS30PF2LAA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haier AS30PF2LAA

Summary of Contents for Haier AS30PF2LAA

  • Page 1 SERVICE MANUAL Wall Mounted Type ON/OFF Model No.AS30PF2LAA HSU-30LPA03/R2(T3&T4) 2022-05-10...

  • Page 2: Table Of Contents

    Table fo contents Contents 1. Introduction .................... 1 2. Features ....................7 3. Specifications ..................8 4. Sensors list.................... 9 5. Piping diagrams ..................10 6. Printed Circuit Board Connector Wiring Diagram........11 7. Functions and Control ................8. System configuration................9. Dimensional drawings ................10.

  • Page 3: Introduction

    Intuoduction 1 Introduction 1.1 Model name explanation 22-240V 50HZ/1Ph 100P Platform Platform of indoor units:P(P platform) Nominal cooling capacity (30000BTU/h) Type of indoor unit: S (wall-mounted) Indoor unit Domestic air conditioner...
  • Page 4 Intuoduction 1.2 Safety Cautions Be sure to read the following safety cautions before conducting repair work. The caution items are classified into “Warning” and “Caution”. The “Warning” items are especially important ● since they can lead to death or serious injury if they are not followed closely. The “Caution” items can also lead to serious accidents under some conditions if they are not followed.
  • Page 5 Intuoduction Warning Do not repair the electrical components with wet hands . Working on the equipment with wet hands can cause an electrical shock Do not clean the air conditioner by splashing water. Washing the unit with water can cause an electrical shock.
  • Page 6 Intuoduction Warning Be sure to use an exclusive power circuit for the equipment, and follow the technical standards related to the electrical equipment, the internal wiring regulations and the instruction manual for installation when conducting electrical work. Insufficient power circuit capacity and improper electrical work can cause an electrical shock or fire. Be sure to use the specified cable to connect between the indoor and outdoor units.
  • Page 7 Intuoduction Caution Installation of a leakage breaker is necessary in some cases depending on the conditions of the installation site, to prevent electrical shocks. Do not install the equipment in a place where there is a possibility of combustible gas leaks. If a combustible gas leaks and remains around the unit, it can cause a fire.
  • Page 8 Intuoduction 1.2.4 Using Icons Icons are used to attract the attention of the reader to specific information. The meaning of each icon is described in the table below: ● 1.2.5 Using Icons List Icon Type of Information Description A “note” provides information that is not indispensable, but may Note Note nevertheless be valuable to the reader, such as tips and tricks.

  • Page 9: Features

    Specifications 2.Features 4 Fan setting :Select the fan speed LO,MED,HI,AUTO Anti-mold filter: Catches most small particles and remove unpleasant odors effectively. Sleep mode: The setting temperature and the indoor noise can be adjusted to a more comfortable level when you set the “sleep mode” during night sleep. 24Hour timer: Use the timer function to set on,or off,or from on to off,or from off to on Auto restart: Automatic return to previous operation conditions after sudden power blackout Easy clean design: The panel is easy to wash and the airflow vents can be detached easily...

  • Page 10: Specifications

    Specifications 3 Specifications NOMINAL DISTRIBUTION SYSTEM VOLTAGE Phase Frequency Voltage 220-240 NOMINAL CAPACITY and NOMINAL INPUT cooling heating 8206(T1)/7034(T3) Capacity rated 28000(T1)/24000(T3) Btu/h 2370(T1)/2823(T3) Power Consumption(Ra 11.8(T1)/8.5(T3) EER/COP 6399 Annual energy consumption Moisture Removal m³/h 2×10³ TECHNICAL SPECIFICATIONS 1316*270*365 Dimensions W*D*H Packaged Dimensions W*D*H...

  • Page 11: Sensors List

    Specifications TECHNICAL SPECIFICATIONS-PARTS cooling heating o l f 1600 Air flow rate(high) m³/h Speed(super/high/low) 1300/1 00/ Type ML fin- 7HI-HX tube Heat exchanger 2*22*1.3 t i f o i t t,Left,Horizontal,Downward Air filter Removable/Washable/Mildew Proof Microcomputer Control Temperature control YL-HE22 l l o Note: the data are based on the conditions shown in the table below Conversation formulae...

  • Page 12: Piping Diagrams

    Piping diagrams 5 Pinping diagrams 15.88 CuT 9.52 CuT Domestic air conditioner...

  • Page 13: Printed Circuit Board Connector Wiring Diagram

    ON means keep; OFF means cut ON OFF ON O OFF ON UNIT MODEL PCB MODEL J1/J2/J7/J5/J6 AS30PF2LAA 0011800923C(E) J1-OFF/J2-ON/J7-ON/J5-ON/J6-ON N_RC RC UNIT MODEL PCB MODEL J3/J4 OFF ON ON AS30PF2LAA 0011800387D J3-ON/J4-ON OFF O O O N N N OFF O O O N N N ●...
  • Page 14 Connector Wiring Diagram Connector wring diagram CN35 CN10/11 CN5/5 CN43 CN44 CN17 ● ● Domestic air conditioner...

  • Page 16: Functions And Control

    Functions and control Functions and control 7.1 Main functions and control specifications Including brief introduction to air conditioners of series models and electric control function. ● 7.1.1 A utomatic running ● 7.1.1.1 Automatic running mode When the running mode is turned to automation after starting the system, the system will first determine the running mode according to the current room temperature and then will run according to the determined mode.
  • Page 17 Functions and control Manual operation: When unit is on the wind speed can be set to high, medium, low or automatic as required (execute instruction 2 seconds later after receiving remote signal) Compressor control The compressor can’t be controlled by temperature sensor within 2 minutes after start up and can be only restarted at least 3 minutes later after shutdown.
  • Page 18 Functions and control When Tr<Ts+5 , compressor, four-ways valve and outdoor fan motor is on, and the indoor fan motor runs as in the mode of avoiding cold blast. *Control of indoor fan motor: Manual operation: The wind speed can be set to high, medium, low or automatic as required. Automatic operation: When Tr Ts, the wind speed is high;...
  • Page 19 Functions and control Intelligentized defrosting: Indoor unit enter overload protection and air outlet stops when air outlet has been restarted and runs over 10 minutes, and compressor runs over 45 minutes in total and over 20 minutes continuously, and the temp.
  • Page 20 close. T( ) 6hours 1 hour Ts+2 Ts+1 1 hour Sleep T(hour) 7.1.7.2 7.1.2.3 7.1.8 Emergency switch input: 7.1.8.1 ● 7.1.8.2 7.1.8.3 7.1.8.4 7.1.9 Test run: 7.1.9.1 7.1.9.2 7.1.10 The memory function of power down...
  • Page 21 Functions and control and the auto recovery function of power on can be set on/off. If the buzzer rings 4 times, the auto recovery function of power on is available; If the buzzer rings 2 times, the auto recovery function of power on is unavailable.) ●...
  • Page 22 Functions and control 82.6970 77.0544 71.7088 -1.34 1.27 78.2118 72.9937 68.0402 -1.31 1.25 73.9966 69.1712 64.5813 -1.29 1.23 ● 70.0335 65.5716 61.3188 -1.27 1.21 66.3062 62.1807 58.2405 -1.24 1.19 62.7992 58.9853 55.3351 -1.22 1.17 ● 59.4984 55.9729 52.5917 -1.20 1.15 56.3905 53.1320 50.0006...
  • Page 23 Functions and control 9.6976 9.1130 8.5532 -1.56 1.49 9.3163 8.7439 8.1965 -1.60 1.53 8.9521 8.3916 7.8566 -1.64 1.57 ● 8.6040 8.0554 7.5327 -1.68 1.60 8.2713 7.7345 7.2237 -1.73 1.64 7.9531 7.4280 6.9291 -1.77 1.68 7.6489 7.1353 6.6480 -1.81 1.72 ● 7.3580 6.8556 6.3797...
  • Page 24 Functions and control 1.9461 1.7402 1.5541 -3.70 3.34 1.8856 1.6844 1.5028 -3.75 3.38 1.8272 1.6307 1.4535 -3.80 3.43 ● 1.7709 1.5789 1.4060 -3.86 3.47 1.7166 1.5291 1.3603 -3.91 3.52 1.6643 1.4810 1.3163 -3.97 3.56 1.6138 1.4347 1.2739 -4.02 3.61 ● 1.5650 1.3900 1.2331...
  • Page 25 Functions and control 115.9272 104.8882 94.8149 -1.83 1.67 109.4410 99.1858 89.8106 -1.81 1.66 ● 103.3598 93.8305 85.1031 -1.80 1.64 97.6556 88.7989 80.6728 -1.78 1.63 92.3028 84.0695 76.5017 -1.76 1.62 87.2775 79.6222 72.5729 -1.74 1.60 82.5577 75.4384 68.8710 -1.72 1.59 78.1230 71.5010 65.3815 -1.70...
  • Page 26 Functions and control 12.2280 11.8126 11.4011 -0.83 0.83 11.7102 11.3267 10.9459 -0.81 0.80 ● 11.2172 10.8634 10.5114 -0.78 0.78 10.7475 10.4216 10.0964 -0.75 0.75 10.3000 10.0000 9.7000 -0.75 0.75 9.8975 9.5974 9.2980 -0.76 0.76 9.5129 9.2132 8.9148 -0.80 0.80 9.1454 8.8465 8.5496 -0.84...
  • Page 27 Functions and control 2.3815 2.2098 2.0486 -2.40 2.25 2.3068 2.1383 1.9803 -2.45 2.29 ● 2.2347 2.0695 1.9147 -2.49 2.34 2.1652 2.0032 1.8516 -2.54 2.38 2.0983 1.9393 1.7908 -2.59 2.42 2.0337 1.8778 1.7324 -2.63 2.46 1.9714 1.8186 1.6761 -2.68 2.50 1.9113 1.7614 1.6219 -2.73...
  • Page 28 Functions and control 0.6528 0.5820 0.5183 -4.74 4.26 0.6361 0.5667 0.5043 -4.80 4.31 0.6200 0.5518 0.4907 -4.86 4.36 0.6043 0.5374 0.4775 -4.92 4.41 0.5891 0.5235 0.4648 -4.98 4.45 0.5743 0.5100 0.4524 -5.04 4.50 0.5600 0.4968 0.4404 -5.10 4.55 0.5460 0.4841 0.4288 -5.16 4.60...

  • Page 29: System Configuration

    System configuration 8 System configuration 8.1System configuration After the installation and test operation of the room air conditioner have been completed, it should be operated and handled as described below. Every user would like to know the correct method of operation of the room air conditioner, to check if it is capable of cooling(or heating) well, and to know a clever method of using it.

  • Page 30: Dimensional Drawings

    Dimensional drawings 9.Dimensional drawings 1316mm 27 mm 10.Center of gravity 1316mm 270mm 110mm...

  • Page 31: Service Diagnosis

    Service diagnosis 11 Service Diagnosis 11.1 Caution for diagnosis The operation lamp flashes when any of the following errors is detected. 1. When a protection device of the indoor or outdoor unit is activated or when the thermistor malfunctions, disabling equipment operation. 2.
  • Page 32 Service diagnosis 11.4 Error Codes and Description indoor display Code indication Reference Description Page indoor u l i u l i Indoor Malfunction o i t 11.4.1 Thermis tor or Related Abnormality E1: Room temperature sensor failure Indoor display E2: Heat-exchange sensor failure The temperatures detected by the thermistors are used to determine Method of malfunction tection...
  • Page 33 Service diagnosis Check the connector connection. Correct the connection Is it normal? Thermistor resistance check Replace the thermistor Is it normal? Replace the indoor unit PCB Thermistor resistance check method: Remove the connector of the thermistor on the PCB, and measure the resistance of thermistor using tester. The ●...
  • Page 34 Service diagnosis 11 .4.2 EEPR O M abnormal Indoor Display E4: indoor EEPROM error Method of malfunction The Data detected by the EEPROM are used to determine MCU detection Malfunction when the data of EEPROM is error or the EEPROM is damaged detection conditions Faulty EEPROM data...
  • Page 35 Service diagnosis Pull out the terminals on the indoor Check whether terminals mainboard and reinsert them on indoor pcb is well? Electrify the machine again and turn it on in the cooling operation, ● Measure voltage between the positions 1and 3 of Terminal CN5 on the indoor PCB the voltage is about 90-220vac Measure whether there is voltage pulse(0-5VDC)

  • Page 36: Circuit Diagrams

    12. Circuit diagrams Domestic air conditioner...
  • Page 37 12. Circuit diagrams Domestic air conditioner...

  • Page 38: Remove Procedure

    13.Remove Procedure Indoor unit Step Procedure Points 1.Features 2.Remove the front paQel Hold the front panel by the tabs on the both sides and lift it until it stops with a click. Loosen the screw and lift up the casing cover Loosen the sc ew and 「...
  • Page 39 Step Procedure Points Pull the wires out of the control box and then release the pivots on both sides of the unit ． to remove the front panel. Remove the air filt�rs and horizontal flap Step Procedure Points Lift the first air filter upwards slightly and then pull it out downwards...
  • Page 40 casing Remove the Step Procedure Points Release the screw covers(3EA) • lift up the screw covers and then release them. Loosen the marked screw (7EA)
  • Page 41 Step Procedure Points HOLE(4E A ) •when assembling, install the front Release the ma grille horizontally 「 hooks (4EA) and then so as not to stuff Pull the front g门lie ovt the fla p inside. Horizontally and •when assembling, emove it make sure the four 「...
  • Page 42 Release stepping motor and the control box Step Procedure Points Loosen the stepping motor screws (4EA) and then remove the stepping motor Remove the control box Loosen the control Box screws (1 EA) and then pull it.
  • Page 43 Removal of Heat Exchanger Step Procedure Points Loosen the marked screws(2EA) 了 Pull mounting plate and heat exchanger bracket, and then release them. Release fixture plate from the base Frame hook and remove it. Loosen the screws...
  • Page 44 Step Procedure Points I Remove the heat Exchanger Remove Fan motor Loosen the marked screws(4EA) and release the cover of fan motor I Loosen the marked screw (1 EA) and remove fan motor Lift up the fan ang remove it...
