Sonance Mariner H2O Install Manual

IMPORTANT SAFETY INSTRUCTIONS
When using your H 0 speaker, basic safety precautions should always
2
be followed to reduce the risk of fire, electric shock, and injury to per-
sons, including the following:
1. Read and understand all instructions.
2. Retain the safety and operating instructions for future reference.
3. Follow all warnings and instructions in this manual and marked
on the product.
4. Any service or repair required must be performed by qualified,
factory authorized personnel.
5. Never touch the drivers or push objects of any kind into this
product through the grilles.
MARINER H O SPEAKERS
2

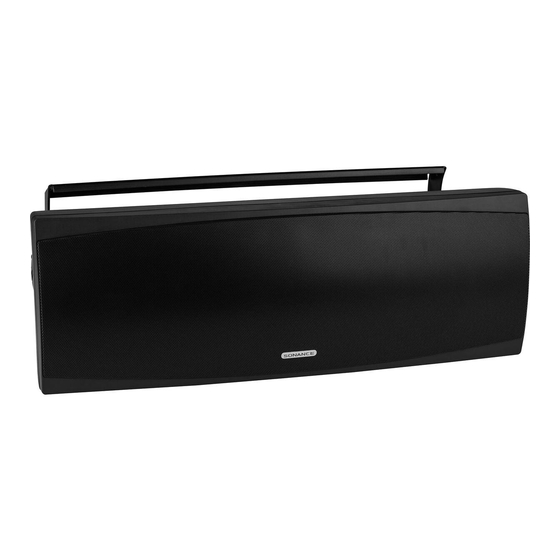

Congratulations on your choice of the Sonance® Mariner High
Output speakers. The H O is the ideal speaker for applications
2
requiring the high fidelity and ruggedness of the Mariner series, with
extended low frequency response, extended input sensitivity, and
greater power handling ability. Both the 1" cloth dome tweeter
and twin 5-1/4" polypropylene woofers are magnetically shielded for
freedom of placement. Optimum sound coverage of any area is easily
achieved with fewer speakers thanks to the H
convenient multi-pivot bracket system.
Sonance also offers the largest selection of high fidelity in-wall/
in-ceiling speakers in the world, as well as a wide variety of products
for custom home and commercial installations. Visit the Sonance
World Wide Web site at http://www.sonance.com or your authorized
dealer for more information on the extensive range of speakers,
amplifiers, and custom installation products available from Sonance.
GETTING THE MOST FROM YOUR MARINER H
When properly installed and mated with other high fidelity
components, your H Os will provide many years of entertainment
2
pleasure. To realize the full potential of your new speakers, please read
all instructions before starting the installation process.
Careful placement of your H O speakers will allow listeners to enjoy
2
the full frequency response the speakers offer. With the flexibility to
mount on poles, walls, or railings, you can take advantage of a range
of installation options.
Remember that the high frequency drivers (in the center of the
enclosure) must be at or above the ear level of listeners to retain the
full sound spectrum. Consider if listeners will be seated or standing,
then mount the H Os where they will not be obscured.
2
Use quality speaker wire to permit the H
potential. Select oxygen-free Sonance Gold, Silver, or Bronze
MediaLinQ ® plenum cable as appropriate to your installation. We
recommend 18-gauge wire for runs of less than 50 feet, 16-gauge for
runs of 50-100 feet, and 14-gauge for runs over 100 feet.
PN.33-1699 3.99
O's high output and
2
O SPEAKERS
2
Os to achieve their full sonic
2

INSTALLATION INSTRUCTIONS

M A R I N E R H 0 I N D O O R / O U T D O O R
™
2
H I G H O U T P U T
INSTALLATION
Read "Getting The Most From Your Mariner H
plan speaker locations. If this is your first installation of a Mariner
speaker, read all of the installation instructions before beginning.
UNPACK SPEAKER
Verify package contents:
• One Sonance Mariner
H O speaker
2
• One C-bracket
• Two bracket knobs
• Four mounting screws
• These instructions
• Warranty card
These additional tools and
materials are required:
• Sonance MediaLinQ
speaker wire
• Banana plugs or spade
lugs (optional)
• Wire strippers
ASSEMBLY
See Diagram 1 for assembly
of the patent pending
multi-axis pivot bracket.
Secure speaker and bracket to the chosen mounting surface.
SPEAKER PLACEMENT
Your H O speakers has the same
2
versatility as the other Mariner
series speakers. This includes the
use of a specially designed
C-mounting bracket that allows
for flush-fit installations in areas
that are not readily accessible
(under eaves, corners, etc. See
Diagram 2).
Indoor usage can include, but
is not limited to a subwoofer/
satellite system. The H O is ideal-
2
ly suited because of its smooth
crossover points and wide tonal range. The MC center channel would
greatly complement the use of the H
As with any home theater or music listening environment, the H
ideally placed with the tweeter aimed at the listener's ear level.
1
L O U D S P E A K E R
O Speakers" and
2
Diagram 1
SIDE VIEW
Diagram 2
90˚
135˚
0˚
O as left/right/surround channels.
2
Hole for
Speaker Wire
BACK VIEW
OF BRACKET
O is
2
