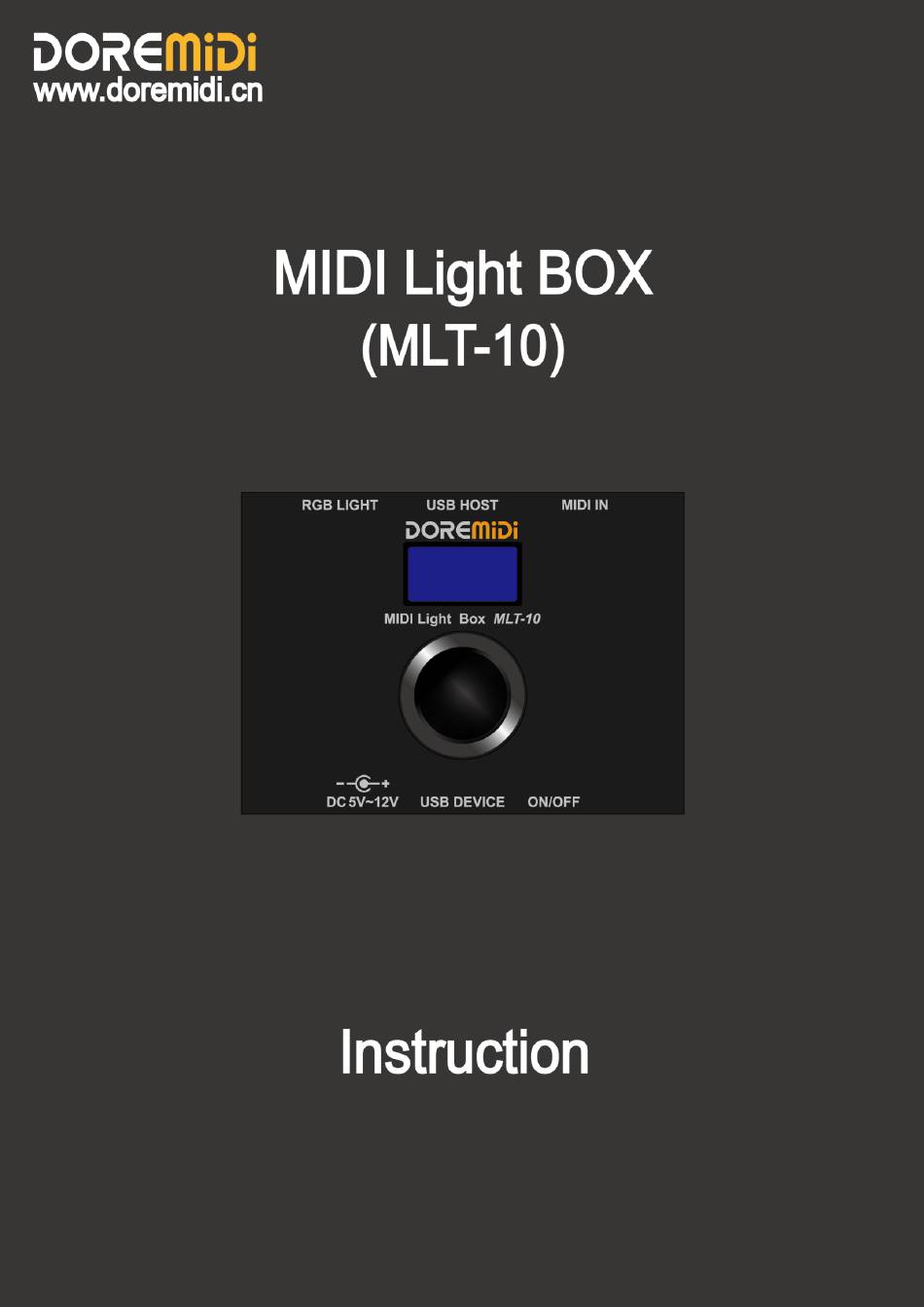

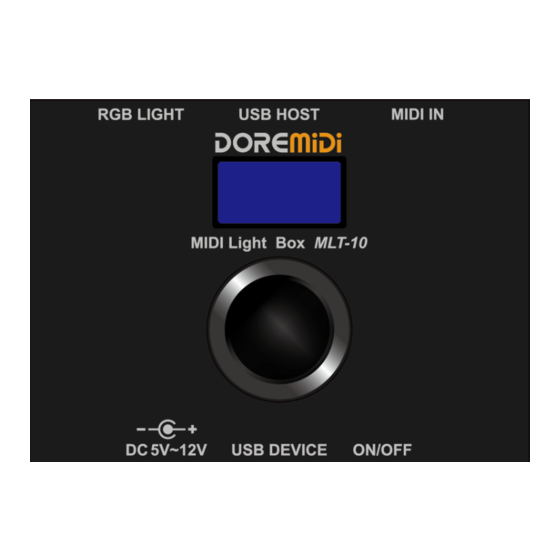

- Page 2 Introduction MIDI light box (MLT-10) is a controller that controls RGB light strips through MIDI messages. MLT-10 can be connected to USB or MIDI DIN five-pin instruments, and the light strip can be controlled by electronic instruments. And MLT-10 can be connected to a mobile phone/computer through Bluetooth MIDI or USB, and cooperate with application software and musical instruments to complete functi ons such as piano learning and MIDI performance.
- Page 3 Standby Consumption 90mA@5V / 70mA@9V / 50mA@12V Working Consumption 1.5A@5V / 1.8A@9V / 1.3A@12V (Max) USB MIDI Compatibility Standard USB MIDI device, compliant with USB class, plug and play. USB HOST Compatibility Compatible with USB Class-compliant USB MIDI devices. Built-in high-speed optical isolator, compatible with all MIDI five-pin output MIDI IN Compatibility interfaces.
- Page 4 LIGHT" port of the product, and ensure that the connection is firm. Connect application software After connecting to the software, the light strip can light up according to the note message sent by the software. When the instrument produces a note, it is also sent to the software. MLT-10 provides two ways to connect the software, please select the connection method according the software.
- Page 5 5.3. Setting Mode Click the knob to the "Mode", and rotate the knob to select the "Follow/Normal/Ripple/All Show/Bar" mode. “Follow” mode requires the MLT-10 to connect to the application software. Other modes are used for MIDI performance. The following is a description of each mode. Mode Display Description...
- Page 6 5.4. Other parameter settings Click the knob to select "Color/Light/Fade/Velocity/MIDI CH/CC#/Language", and rotate the knob to set parameters. Setting Item Display Parameter Description When the light strip is on, the color will be used. USB: Color range: Blue/ IceBlue/ Yellow / Green / Pink/ Mode Color red /White / Random.
- Page 7 If the problem is not resolved, please contact customer service. Manufacturer: Shenzhen Huashi Technology Co., Ltd. Address: Room 910, Jiayu Building, Hongxing Community, Songgang Street, Baoan District, Shenzhen, Guangdong, China Post Code: 518105 Customer Service Email: info@doremidi.cn...
