MT-30
Installation Instructions
INSTRUCTIONS, FIELD
INSTALLATION, CONVERT AMPRO
PC104 TO VDX-6353RD, MT-30
Webasto Charging Systems, Inc.
1333 S. Mayflower Avenue, Suite 100
Monrovia, CA 91016 U.S.A.
Telephone 1–866–767–4242
IPCService@webasto.com
2020 Webasto Charging Systems, Inc.
21324-76_02.docx
Page 1 of 26
Webasto Charging Systems, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MT-30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Webasto MT-30

Summary of Contents for Webasto MT-30

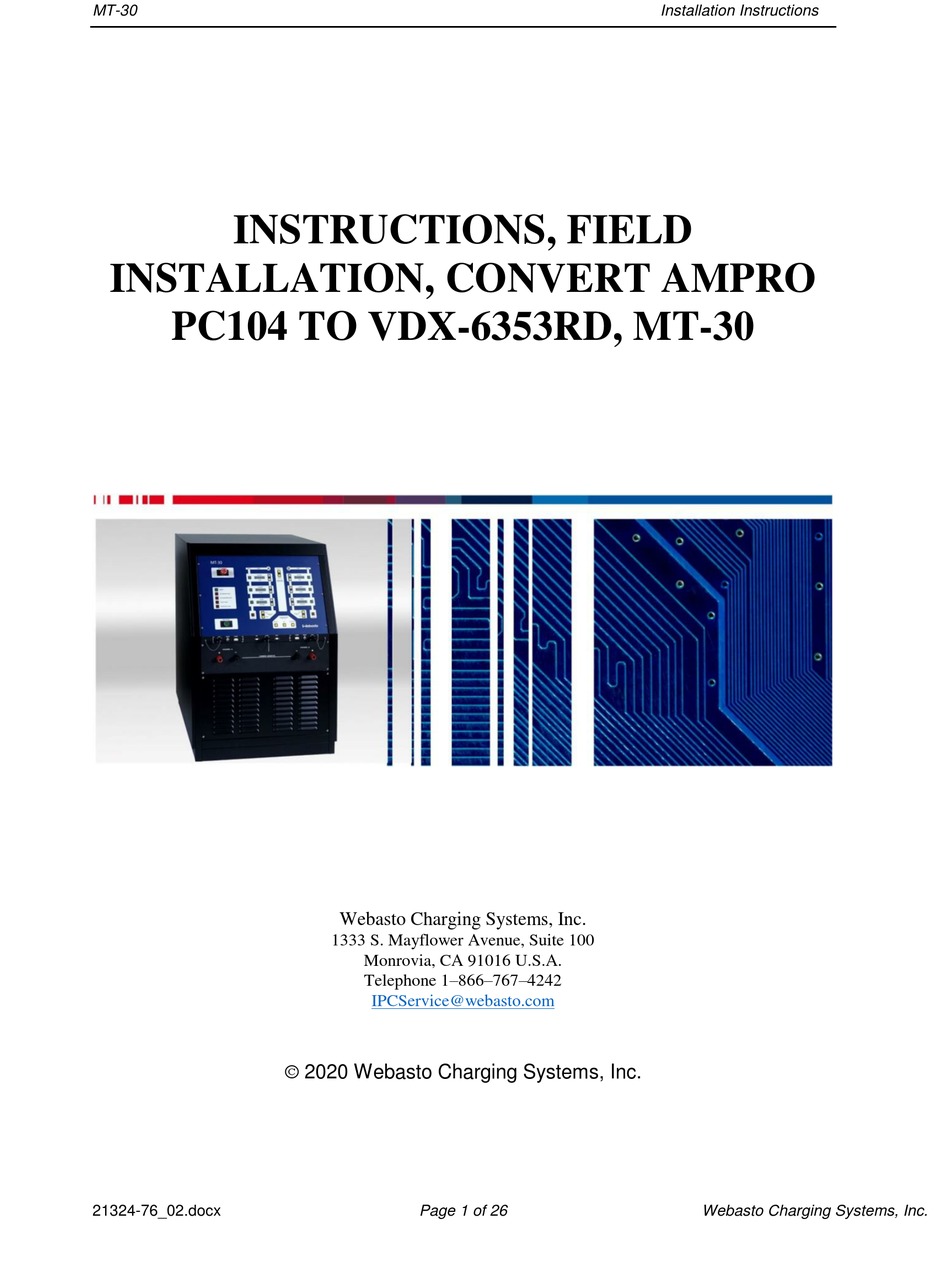

  • Page 1 MT-30 Installation Instructions INSTRUCTIONS, FIELD INSTALLATION, CONVERT AMPRO PC104 TO VDX-6353RD, MT-30 Webasto Charging Systems, Inc. 1333 S. Mayflower Avenue, Suite 100 Monrovia, CA 91016 U.S.A. Telephone 1–866–767–4242 IPCService@webasto.com 2020 Webasto Charging Systems, Inc. 21324-76_02.docx Page 1 of 26 Webasto Charging Systems, Inc.
