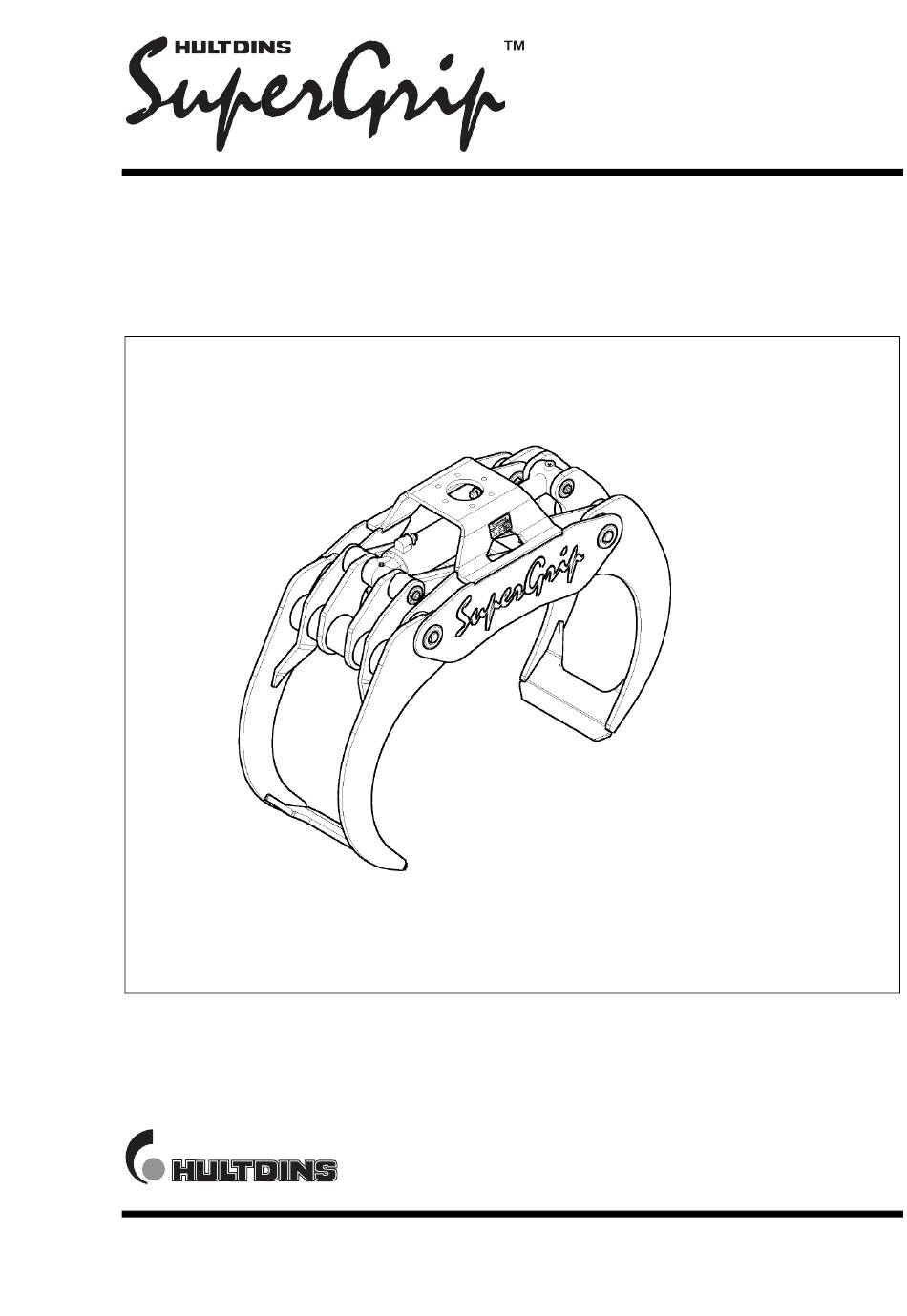

- Page 1 SuperGrip SG Installation manual...
- Page 2 This publication contains instructions for the installation and handling of the SuperGrip SG grapples. The instructions cover both general information for all models, and procedures or specifications applicable to individual models. If doubt should arise concerning the validity of the instructions please consult the nearest dealer for more detailed information.
-
Page 3: Table Of Contents
Welding............6 Modifying the equipment ....... 6 Main parts ..............7 Product description..........8 Labeling..............8 Technical data............9 SuperGrip SG ............9 Special tools............ 9 SG............... 11 SG -R..............12 SG -S ..............13 Functional description........... 14 Installation.............. 15 Installing the rotator ........... -
Page 4: Safety Instructions
S AFE TY INS TRUCTIONS Safety instructions General safety • This page describes important safety instructions, which the operator should have a good knowledge of before the equipment is used. • This product should only be used by operators with proper knowledge and training. •... -
Page 5: Operational Safety
S AF E T Y I NS T RUC T I ONS Operational Safety • Check the grapple for damages at the beginning of each shift. Tighten all fasteners regularly. • Make sure that the hydraulic pressure in the grapple cylinder is adjusted according to the specifications. -
Page 6: Maintenance Safety
It is not approved to: • Modify the grapple without the consent of HULTDIN SYSTEM AB. • Alter the function of the grapple without the consent of HULTDIN SYSTEM AB. • Use spare parts other than original HULTDINS parts. Safety instructions En011501_sg.fm... -
Page 7: Main Parts
MAIN PA RTS Main parts The SuperGrip SG is made up of the following main parts. All parts are replaceable. Fig. 1 Main parts 1 Frame 7 Hydraulic cylinder 2 Female grapple arm 8 Pin-joint system, grapple arm-rod-hydraulic cylinder 3 Male grapple arm... -
Page 8: Product Description
The SuperGrip SG must not be used when lifting rocks or when performing equivalent lifts as there is a risk that the grapple arms or other parts of the grapple may fail, which could result in injury or damaged equipment. -
Page 9: Technical Data
TECHNICAL DATA Technical data 1 5 ° 1 5 ° SuperGrip SG Special tools Ø 8 0 Ø 7 0 1 5 ° 1 5 ° Description Diam. Order No. Mandrel, pin-joint system ..50 mm 0660 207 60 mm... - Page 10 14 mm 10.9 ..500 Nm 30 mm MC6S 12.9 ..500 Nm 17 mm 10.9 ..900 Nm 36 mm Piston ø80......700 Nm Piston ø90/ø100 850 Nm Gland ø80 ......700 Nm Gland ø90/ø100....850 Nm SuperGrip SG en011504_sg.fm...
- Page 11 TECHNICAL DATA Technical data Fig. 6 Dimensions SG 260 SG 300 SG 360 SG 420 SG 520 Gripping area, tip-tip ..0,26 0,30 0,36 0,42 0,52 Max. gripping width (A)..1 525 1 480 1870 2 075 2279 Min. gripping diameter..Max.
-
Page 12: Sg -R
TECHNICAL DATA Technical data SG -R Fig. 7 Dimensions SG 260 R SG 300 R SG 360 R SG 420 R SG 520 R Gripping area, tip-tip ..0,26 0,30 0,36 0,42 0,52 Max. gripping width (A)..1 525 1 480 1870 2 075 2279... -
Page 13: Sg -S
TECHNICAL DATA Technical data SG -S Fig. 8 Dimensions SG 260 S SG 300 S SG 360 S SG 520 S SG 720 S Gripping area, tip-tip ..0,26 0,30 0,36 0,52 0,72 Max. gripping width (A)..1 525 1 480 1870 2279 2290... -
Page 14: Functional Description
F UNCTIONAL DE SCRIP TION Functional description The SuperGrip SG is made up of one frame (1) and two mounted in pin-joint systems on the barrel side (6) and the grapple arms, female grapple arm (2) and male grapple piston rod side (9). -
Page 15: Installation
5. Make sure that the grapple functions correspond with the order of the joysticks at the operator seat. stand 6. Cautiously operate all functions to make sure that everything performs normally. Fig. 11 Connecting the hydraulic hoses en011206_sg.fm SuperGrip SG... -
Page 16: Maintenance Instructions
No fasteners are loose. • The hydraulic hoses are not damaged. • No damages or cracking have occurred on the grapple. • There is no leakage on the grapple. Tighten any loose items and repair any damages. SuperGrip SG en011507_sg.fm... -
Page 17: Lubrication
The first month of operation Fasteners Tightening of the rotator fasteners should be made once a week during the first month of operation. See Technical data regarding wrench size and torque. en011507_sg.fm SuperGrip SG... - Page 18 Hultdin System AB Skolgatan 12, SE-930 70 MALÅ, Sweden Tel +46 953 418 00, Fax +46 953 418 01 E-mail: sales@hultdins.se 0117 - 7000100-EN Hultdins Inc. P.O. Box 1205, 22 Morton Ave. East Brantford, Ontario, Canada N3T 5T3 Tel (519) 754-0044, Fax (519) 754-1569...
