Recommended Enclosures
sealed
QWX2000/10D4
Sealed Enclosure
Box Volume: .75 cu ft.
Ported Enclosure
Box Volume: 1.33 cu ft
Box Tuning: 37Hz
Port Area: 7.06 sq in.
Port Length: 12 in.
QWX2000/12D4
Sealed Enclosure
Box Volume: 1.125cu ft
Ported Enclosure
Box Volume: 1.59cu ft
Box Tuning: 36Hz
Port Area: 12.57 sq in
Port Length: 16in
Please Note: Our suggested box volumes are given as internal air requirements
ported

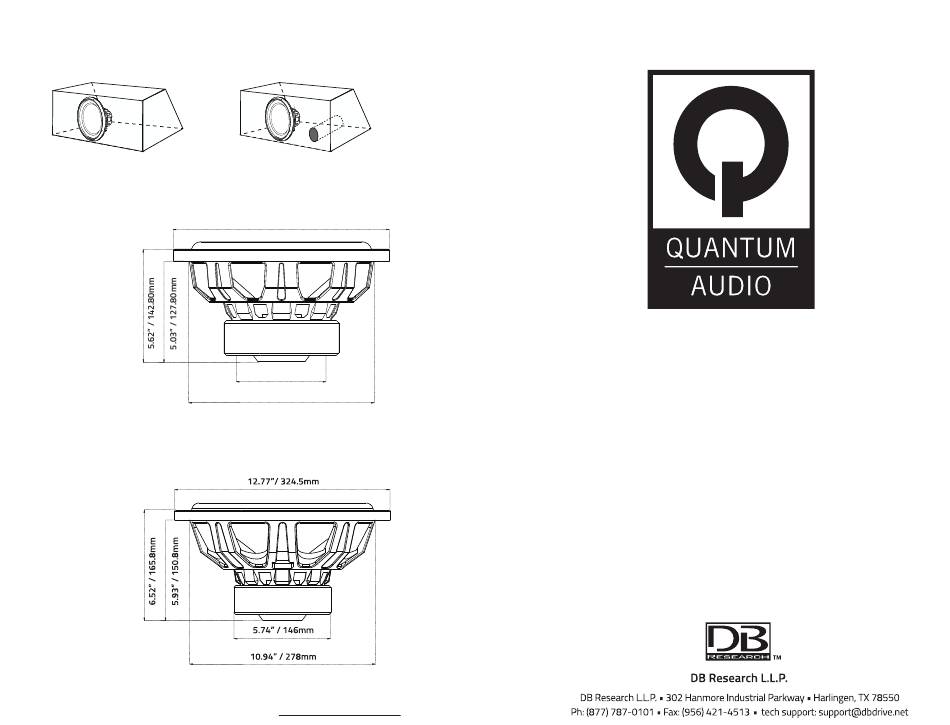

10.82"/ 275mm
5.74" / 146mm
9.24" / 234.91mm
QWX2000/10D4
QWX2000/12D4
Installation Instructions / Owner's Manual
TM
Advertisement
Related Manuals for Quantum Audio QWX2000/10D4
Summary of Contents for Quantum Audio QWX2000/10D4
- Page 1 Recommended Enclosures sealed ported 10.82”/ 275mm QWX2000/10D4 Sealed Enclosure Box Volume: .75 cu ft. Ported Enclosure Box Volume: 1.33 cu ft Box Tuning: 37Hz Port Area: 7.06 sq in. Port Length: 12 in. 5.74” / 146mm QWX2000/10D4 9.24” / 234.91mm...
- Page 2 Fs [Hz] 39.402 Hz 35.557 Hz appreciation of fine musical reproduction. Whether adding to an existing system or including a Quantum Audio subwoofer in a new system, you are certain to notice Re [Ohm] 3.6 ohm+3.6 ohm 3.6 ohm+3.6 ohm immediate performance benefits.
