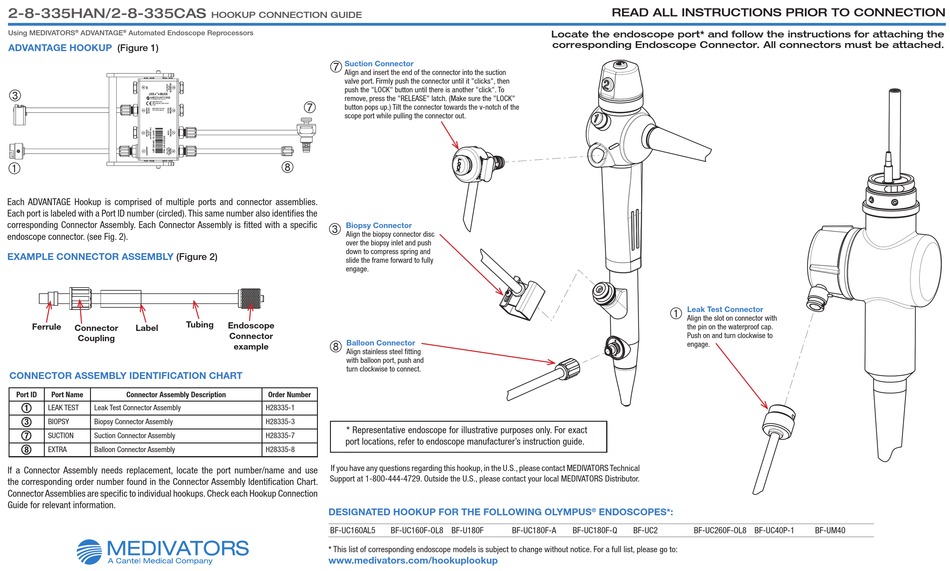

Medivators 2-8-335HAN Hookup Connection Manual

2-8-335HAN/2-8-335CAS
Using MEDIVATORS ® ADVANTAGE ® Automated Endoscope Reprocessors

ADVANTAGE HOOKUP

(Figure 1)


Each ADVANTAGE Hookup is comprised of multiple ports and connector assemblies.
Each port is labeled with a Port ID number (circled). This same number also identifies the
corresponding Connector Assembly. Each Connector Assembly is fitted with a specific
endoscope connector. (see Fig. 2).

EXAMPLE CONNECTOR ASSEMBLY

(Figure 2)
Tubing
Ferrule
Connector Label
Coupling

CONNECTOR ASSEMBLY IDENTIFICATION CHART

Port ID Port Name Connector Assembly Description
1
LEAK TEST Leak Test Connector Assembly
3
BIOPSY Biopsy Connector Assembly
7
SUCTION Suction Connector Assembly
8 EXTRA Balloon Connector Assembly
If a Connector Assembly needs replacement, locate the port number/name and use
the corresponding order number found in the Connector Assembly Identification Chart.
Connector Assemblies are specific to individual hookups. Check each Hookup Connection
Guide for relevant information.
HOOKUP CONNECTION GUIDE
Suction Connector

Align and insert the end of the connector into the suction
valve port. Firmly push the connector until it "clicks", then
push the "LOCK" button until there is another "click". To
remove, press the "RELEASE" latch. (Make sure the "LOCK"

button pops up.) Tilt the connector towards the v-notch of the
scope port while pulling the connector out.

Biopsy Connector

Align the biopsy connector disc
over the biopsy inlet and push
down to compress spring and
slide the frame forward to fully
engage.
Endoscope
Connector
Balloon Connector

example
Align stainless steel fitting
with balloon port, push and
turn clockwise to connect.
Order Number
H28335-1
H28335-3
* Representative endoscope for illustrative purposes only. For exact
H28335-7
port locations, refer to endoscope manufacturer's instruction guide.
H28335-8
If you have any questions regarding this hookup, in the U.S., please contact MEDIVATORS Technical
Support at 1-800-444-4729. Outside the U.S., please contact your local MEDIVATORS Distributor.
DESIGNATED HOOKUP FOR THE FOLLOWING OLYMPUS
BF-UC160AL5
* This list of corresponding endoscope models is subject to change without notice. For a full list, please go to:
www.medivators.com/hookuplookup
Locate the endoscope port* and follow the instructions for attaching the
corresponding Endoscope Connector. All connectors must be attached.
BF-UC160F-OL8 BF-U180F BF-UC180F-A
READ ALL INSTRUCTIONS PRIOR TO CONNECTION
Leak Test Connector

Align the slot on connector with
the pin on the waterproof cap.
Push on and turn clockwise to
engage.
ENDOSCOPES*:
®
BF-UC180F-Q BF-UC2 BF-UC260F-OL8 BF-UC40P-1 BF-UM40
