2-8-611

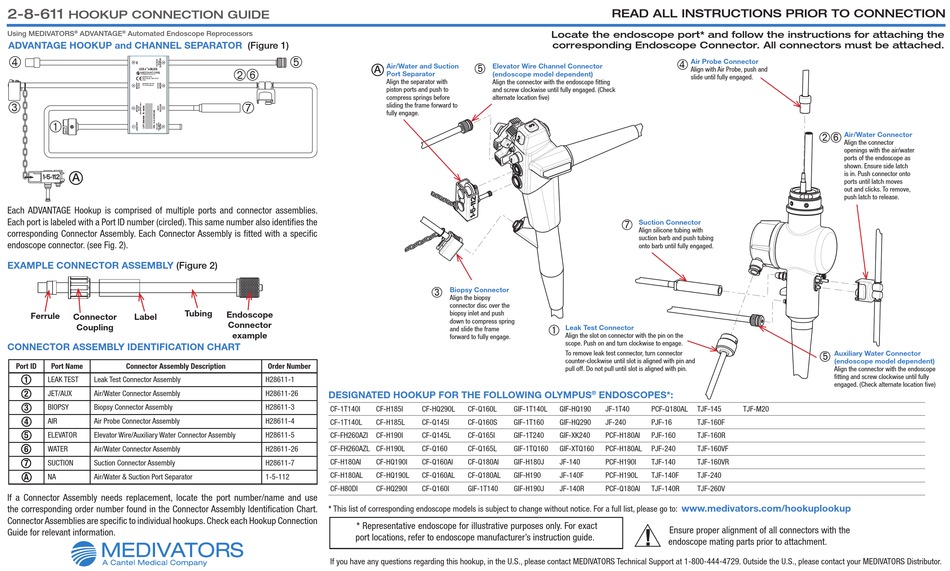

HOOKUP CONNECTION GUIDE
Using MEDIVATORS ® ADVANTAGE ® Automated Endoscope Reprocessors
ADVANTAGE HOOKUP and CHANNEL SEPARATOR



A
Each ADVANTAGE Hookup is comprised of multiple ports and connector assemblies.
Each port is labeled with a Port ID number (circled). This same number also identifies the
corresponding Connector Assembly. Each Connector Assembly is fitted with a specific
endoscope connector. (see Fig. 2).
EXAMPLE CONNECTOR ASSEMBLY (Figure 2)
Tubing
Ferrule
Connector Label
Coupling
CONNECTOR ASSEMBLY IDENTIFICATION CHART
Port ID Port Name Connector Assembly Description
1
LEAK TEST Leak Test Connector Assembly
2 JET/AUX Air/Water Connector Assembly
3 BIOPSY Biopsy Connector Assembly
4 AIR Air Probe Connector Assembly
5 ELEVATOR Elevator Wire/Auxiliary Water Connector Assembly
6
WATER Air/Water Connector Assembly
7
SUCTION Suction Connector Assembly
A
NA Air/Water & Suction Port Separator
If a Connector Assembly needs replacement, locate the port number/name and use
the corresponding order number found in the Connector Assembly Identification Chart.
Connector Assemblies are specific to individual hookups. Check each Hookup Connection
Guide for relevant information.
(Figure 1)

Air/Water and Suction
A

Port Separator
Align the separator with
piston ports and push to
compress springs before
 sliding the frame forward to
fully engage.
Endoscope
Connector
example
Order Number
H28611-1
H28611-26 DESIGNATED HOOKUP FOR THE FOLLOWING OLYMPUS
H28611-3
CF-1T140I CF-H185I
H28611-4
CF-1T140L CF-H185L
H28611-5 CF-FH260AZI CF-H190I
H28611-26 CF-FH260AZL CF-H190L
CF-H180AI CF-HQ190I
H28611-7
CF-H180AL CF-HQ190L
1-5-112
CF-H80DI CF-HQ290I
* This list of corresponding endoscope models is subject to change without notice. For a full list, please go to:
* Representative endoscope for illustrative purposes only. For exact
port locations, refer to endoscope manufacturer's instruction guide.
If you have any questions regarding this hookup, in the U.S., please contact MEDIVATORS Technical Support at 1-800-444-4729. Outside the U.S., please contact your MEDIVATORS Distributor.
Locate the endoscope port* and follow the instructions for attaching the
corresponding Endoscope Connector. All connectors must be attached.
Elevator Wire Channel Connector

(endoscope model dependent)
Align the connector with the endoscope fitting
and screw clockwise until fully engaged. (Check
alternate location five)
Biopsy Connector

Align the biopsy
connector disc over the
biopsy inlet and push
down to compress spring
Leak Test Connector

and slide the frame
Align the slot on connector with the pin on the
forward to fully engage.
scope. Push on and turn clockwise to engage.
To remove leak test connector, turn connector
counter-clockwise until slot is aligned with pin and
pull off. Do not pull until slot is aligned with pin.
ENDOSCOPES*:
®
CF-HQ290L CF-Q160L GIF-1T140L GIF-HQ190
CF-Q145I CF-Q160S GIF-1T160 GIF-HQ290
CF-Q145L CF-Q165I GIF-1T240 GIF-XK240
CF-Q160 CF-Q165L GIF-1TQ160 GIF-XTQ160
CF-Q160AI CF-Q180AI GIF-H180J JF-140
CF-Q160AL CF-Q180AL GIF-H190 JF-140F
CF-Q160I GIF-1T140 GIF-H190J JF-140R
READ ALL INSTRUCTIONS PRIOR TO CONNECTION
Air Probe Connector

Align with Air Probe, push and
slide until fully engaged.
Suction Connector

Align silicone tubing with
suction barb and push tubing
onto barb until fully engaged.
JF-1T40 PCF-Q180AL TJF-145 TJF-M20
JF-240 PJF-16 TJF-160F
PCF-H180AI PJF-160 TJF-160R
PCF-H180AL PJF-240 TJF-160VF
PCF-H190I TJF-140 TJF-160VR
PCF-H190L TJF-140F TJF-240
PCF-Q180AI TJF-140R TJF-260V
www.medivators.com/hookuplookup
Ensure proper alignment of all connectors with the
endoscope mating parts prior to attachment.
Air/Water Connector

Align the connector
openings with the air/water
ports of the endoscope as
shown. Ensure side latch
is in. Push connector onto
ports until latch moves
out and clicks. To remove,
push latch to release.
Auxiliary Water Connector

(endoscope model dependent)
Align the connector with the endoscope
fitting and screw clockwise until fully
engaged. (Check alternate location five)
