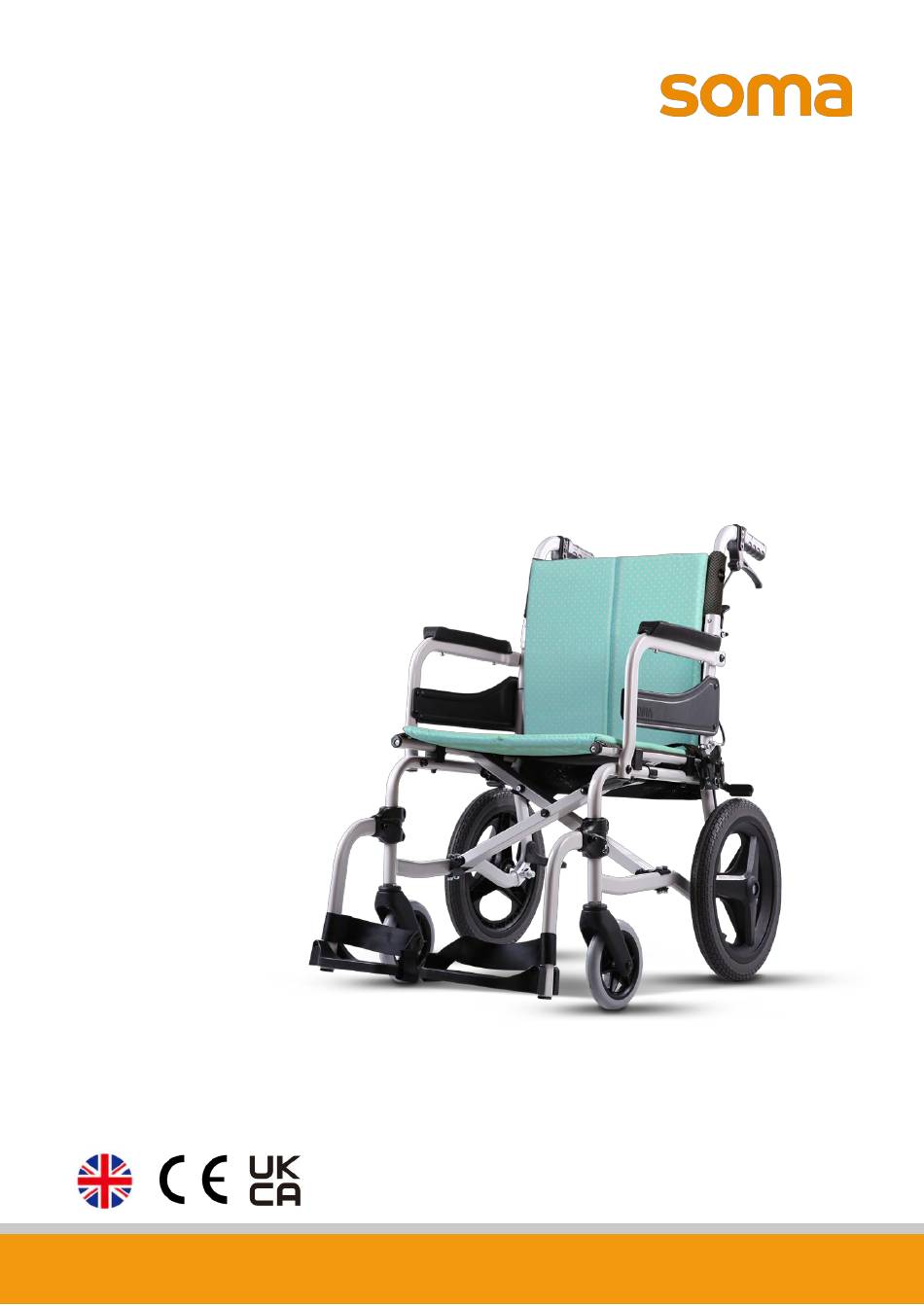

  • Page 1 User manual SOMA 215 (SM-250.5/ SM-250.5TL)
  • Page 3 GENERAL WARNING ⚫ DO maintain your chair well, in particular check the tyre (tire) pressure since this affects the efficiency of the brakes. ⚫ DO make sure both brakes are applied before getting in or out of the chair. ⚫ DO make sure both brakes are applied when the chair is not being pushed or used.
  • Page 4 ⚫ If you have any defective parts or lose any parts, please contact your dealer for repair and/or replacement. Please only use parts authorized by SOMA. Use of parts that are not authorized by SOMA will void your warranty. ⚫ Part numbers are listed on our bill of materials (explosion drawings), which we give to our authorized dealers and service providers.
  • Page 5 If you cannot contact your dealer, please contact another authorized SOMA dealer for service. If all else fails, contact SOMA directly via our website or give us a call and we can refer you to your new service provider.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE ............................... 1 2. SAFETY ..............................2 2.1 Doorways............................2 2.2 Leaning ............................2 2.3 Inclines ............................2 2.4 Kerb (Curbs) ..........................3 2.5 Stairs ............................... 3 2.6 Streets ............................4 2.7 General ............................4 2.8 Upholstery ............................. 4 2.9 Maximum User Weight Limit ....................
  • Page 7 4.17 Going Up Curbs Forwards With an Attendant..............17 4.18 Going Up Curbs Backwards With an Attendant ............... 17 4.19 Rear Wheel Disassembly (only applicable for SM-250.5TL) .......... 17 4.20 Rear Wheel Assembly (only applicable for SM-250.5TL) ..........18 4.21 Mounting the Pelvic Belt ....................... 18 4.22 How to Use and Adjust the Pelvic Belt ................

  • Page 8: Preface

    1.2 This owner's manual is written for SOMA wheelchair: SOMA 215 series. 1.3 The symbols used in this owner's manual are explained below. Pay special attention to the parts marked with these symbols.

  • Page 9: Safety

    2. SAFETY 2.1 Doorways The safest way to operate the chair is on level floors that are free of obstacles. Whenever possible use a ramp to enter or exit a facility. Keeping your hands on the push rims will allow you to maintain maximum balance. Do not try to force yourself over an obstruction by propulsion and never use the sides of a doorway to pull yourself through a passageway.

  • Page 10: Kerb (Curbs)

    2.4 Kerb (Curbs) 2.4.1 Whenever possible get help from an assistant/attendant (if you have assistance make sure that your chair is equipped with push handles). 2.4.2 Avoid hard impacts when descending a curb. A hard impact could adversely affect the chair. 2.4.3 Never try to scale or descend curbs that exceed a normal height (30-50mm).

  • Page 11: Streets

    Figure 2.4 Figure 2.5 2.6 Streets 2.6.1 Always use extreme caution when crossing streets. Reflective tape on the chair and/or your clothing will make you more visible to drivers. 2.6.2 Avoid potholes and rough terrain that might cause the casters to be stuck. (See Figure 2.5) 2.7 General 2.7.1 The expected service life of the product is two years, presuming that the product is...

  • Page 12: Maximum User Weight Limit

    2.9 Maximum User Weight Limit Refer to "Maximum User Weight" in Section 8. SPECIFICATIONS. Loads exceeding maximum capacity can damage your wheelchair and cause malfunctions yielding a safety hazard. The warranty does not cover damage caused by improper operation of the wheelchair.

  • Page 13: Labeling

    2.11 Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference.

  • Page 14: Intended Use & Parts

    3.1.1 The SOMA 215 series is a self-propelled or transit wheelchair. That is, it can either be propelled by the user (self-propelled) or by an attendant (transit). 3.1.2 SOMA 215 series are suitable for users up to 100 kg in weight. Hand brakes are provided for both rear wheels.
  • Page 15 10. Seat Upholstery 4. Rear Wheel (Fixed or Quick Release)* 11. Tipping Lever 5. Cross Frame(Cross Bar) 12. Footrest 6. Caster 13. Heel Loop 7. Backrest Upholstery 14. Footplate *Remark: Quick release rear wheels can only be mounted to SM-250.5TL.

  • Page 16: Operation

    4. OPERATION 4.1 Unfolding 4.1.1 Unfold the push handle. (See Figure 4.1) 4.1.2 Holding the armrests, pull outwards. (See Figure 4.2) 4.1.3 Pointing your fingers inward with the palm of your hand on the frame, push down until the seat is fully lowered. Make sure the frame is firmly seated in its holder. (See Figure 4.3) 4.1.4 Lift the footrests upward, swing them towards the middle and push them down until they are fully locked.

  • Page 17: Folding

    4.2 Folding 4.2.1 Flip up the footplates. (See Figure 4.6) 4.2.2 Lift the footrests upward, swing them outward to the side and push them down until they are fully locked. (See Figure 4.6.1 and Figure 4.6.2) 4.2.3 Pull up on the seat upholstery by holding it in the center of its front and back edge. (See Figure 4.7) 4.2.4 Press the two release levers on the backrest frame (push handle tubes) to fold the backrest down for compact storage and easy transport.

  • Page 18: Footplate Height

    4.4 Footplate Height 4.4.1 To adjust footplate height use the tool provided to loosen the bolt at the bottom of the footrest arm. 4.4.2 Adjust to required height and re-tighten. (See Figure 4.11) Figure 4.11 Figure 4.12 SUGGESTION: ●Make sure that the footplate height is adjusted properly according to the user's calf length to reduce pressure on the body.

  • Page 19: Transporting And Storing

    (See the picture at the right.) WARNING: ● As of this date, SOMA 215 (SM-250.5/ SM-250.5TL) can NOT be used as seats in any vehicles. That is, we recommend that users are NOT transported in any vehicle while seated in the wheelchair. In the case of accident or a sudden stop, the user or passengers may be at risk of getting injury.

  • Page 20: Transferring Out

    4.8.5 Release both hand brakes. CAUTION: ● Always ensure that the front casters are in line with the rear wheels and pointing forwards and that the back of the chair is secure either against a wall or firmly held by an attendant. ●...

  • Page 21: Attendant Pushing And Self-Propelled

    brake is the lever at the side of the wheelchair. ● Please ensure that neither the tread on your tires nor the brake block has become too worn. If pneumatic tires are fitted, please maintain at the recommended tire pressure for the same reason. ●...

  • Page 22: Tilting By The Attendant

    4.10.7 Before crossing the tracks, please stop completely and look both ways. 4.10.8 Cross the tracks perpendicular to avoid your wheels getting stuck. 4.10.9 Do not drive at full speed over the railroad tracks. 4.10.10 Be careful going through a doorway that your hands and arms do not get injured.

  • Page 23: Tilting By The User

    4.12 Tilting by the User 4.12.1 Make sure your feet are on the footplates and will not slip off. 4.12.2 Release both brakes. 4.12.3 Grasp both push rims and give a firm, sudden forward push immediately before the obstacle, continue the momentum (be ready to keep pushing) until the obstacle is mounted.

  • Page 24: Going Down Curbs Backwards With An Attendant

    Please note: for safety's sake we do not recommend using this method. 4.19 Rear Wheel Disassembly (only applicable for SM-250.5TL) SM-250.5TL can be fitted with 22" quick release rear wheels. If your wheelchair is equipped with quick release rear wheels, please follow these instructions in the below to detach the rear wheels.

  • Page 25: Rear Wheel Assembly (Only Applicable For Sm-250.5Tl)

    4.20 Rear Wheel Assembly (only applicable for SM-250.5TL) To mount the rear wheels back to SM-250.5TL, please follow these instructions in the below: 4.20.1 First ensure that the brake is in the OFF position. 4.20.2 Take up the wheel with axle and press the hub cover in the centre of the axle, as above.

  • Page 26: How To Use And Adjust The Pelvic Belt

    4.22 How to Use and Adjust the Pelvic Belt 4.22.1 For your safety, when you sit on the wheelchair, fasten the pelvic belt. 4.22.2 The most comfortable way of using the pelvic belt is to keep it as 45 degrees (See Figure 4.26) 4.22.3 Make sure that the total length of the pelvic belt is sufficient.

  • Page 27: Inspection And Maintenance

    5.1.7 The wheels and tyres (tires) should be checked periodically for cracks and wear, and should be replaced by a qualified technician. 5.1.8 A qualified technician can be found with an authorized distributor/dealer. CAUTION: ● Visit a SOMA wheelchair dealer for inspection and maintenance if you find anything abnormal.

  • Page 28: Regular Maintenance Record

    5.2 Regular Maintenance Record In order to ensure that your wheelchair is in good condition, please contact SOMA authorized dealers regularly and make further wheelchair inspection and maintenance records. We recommend that you inspect and maintain your wheelchair every six months.
  • Page 29 Ⅴ ⚫ No excessive side movement or binding when lifted and spun Ⅴ ⚫ Inspect for cracked, bent or broken spokes ARMRESTS Ⅴ ⚫ Inspect the detachable armrest button for effective locking ⚫ Make sure the armrest detaches and flips back properly Ⅴ...

  • Page 30: Options And Accessories

    6. OPTIONS AND ACCESSORIES ⚫ Backrest Bag ⚫ Multi-Purpose Pelvic Belt ⚫ Standard size. ⚫ Attaches to all SOMA manual ⚫ Attaches to all SOMA manual wheelchairs. wheelchairs. CAUTION: ● Attaching accessories may alter the overall stability and center-of-gravity of the...

  • Page 31: Troubleshooting

    ⚫ Check caster bracket angle. 4. Squeaks and Rattles ⚫ Check for loose nuts and bolts. 5. Looseness in Chair ⚫ Check for loose nuts and bolts. If you cannot solve the problem by yourself, contact your SOMA wheelchair dealer for help.

  • Page 32: Specifications

    8. SPECIFICATIONS Product Model SOMA 215 (SM-250.5) Nominal seat width (mm) Caster x Rear wheel size (in) 6 x 14F 6 x 20F Maximum user weight (kg) Overall length with legrest (mm) Overall width (mm) Overall height (mm) Folded length (mm)
  • Page 33 * The actual product specifications differ from the data in the table by ±10 mm ±0.5 kg. * The actual product specifications may vary according to different configurations. * SOMA reserves the right to modify information herein without further notice. * If you want to know more about the measurement methods of wheelchair specifications, please scan the QR code to watch the instructions on the SOMA website.
  • Page 34 Product Model SOMA 215 (SM-250.5TL) Nominal seat width (mm) Caster x Rear wheel size (in) 7 x 14F 7 x 20F 7 x 22Q Maximum user weight (kg) Overall length with legrest 1010 1020 1045 (mm) Overall width (mm) Overall height (mm)
  • Page 35 * The actual product specifications differ from the data in the table by ±10 mm ±0.5 kg. * The actual product specifications may vary according to different configurations. * SOMA reserves the right to modify information herein without further notice. * If you want to know more about the measurement methods of wheelchair specifications, please scan the QR code to watch the instructions on the SOMA website.

  • Page 36: Cleaning & Recycling

    9. CLEANING & RECYCLING 9.1 Cleaning In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow. We suggest that you not use your wheelchair in the rain or snow. If you are traveling and get caught in the rain, we suggest you try to find shelter while waiting it out.

  • Page 37: Warranty

    10.2.3 Consumable parts such as brakes, bearings, footplates, pads, side guards, upholsteries, wheels and similar parts are excluded from the warranty. 10.2.4 Warranty maintenance can be performed by authorized SOMA wheelchair dealers only. 10.2.5 The manufacturer is not responsible for the transportation costs for repair and replacement.

  • Page 38: The Manufacturer Is Not Responsible For The Following Costs

    10.3.4 The product or part has not been maintained or serviced in accordance with the manufacturer’s recommendations as shown in the User Manuals and/or the Service Manuals. 10.3.5 Use or install parts or accessories which are not manufactured or not approved by the manufacturer.

  • Page 39: Transfer Of Warranty Rights

    10.7 Transfer of Warranty Rights If you purchase a second-hand SOMA wheelchair while it is still within the warranty period, bring this user manual and the wheelchair to the authorized dealer and perform necessary product inspection, maintenance and warranty inheritance procedure.
  • Page 40 110400000632 Release Date: Jun. 2023 V.08...
