Manual Wheelchair Owner's Manual
SM-100.5 Series
(SM-100.5&SM-150.5)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-100.5 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SOMA SM-100.5 Series

Summary of Contents for SOMA SM-100.5 Series

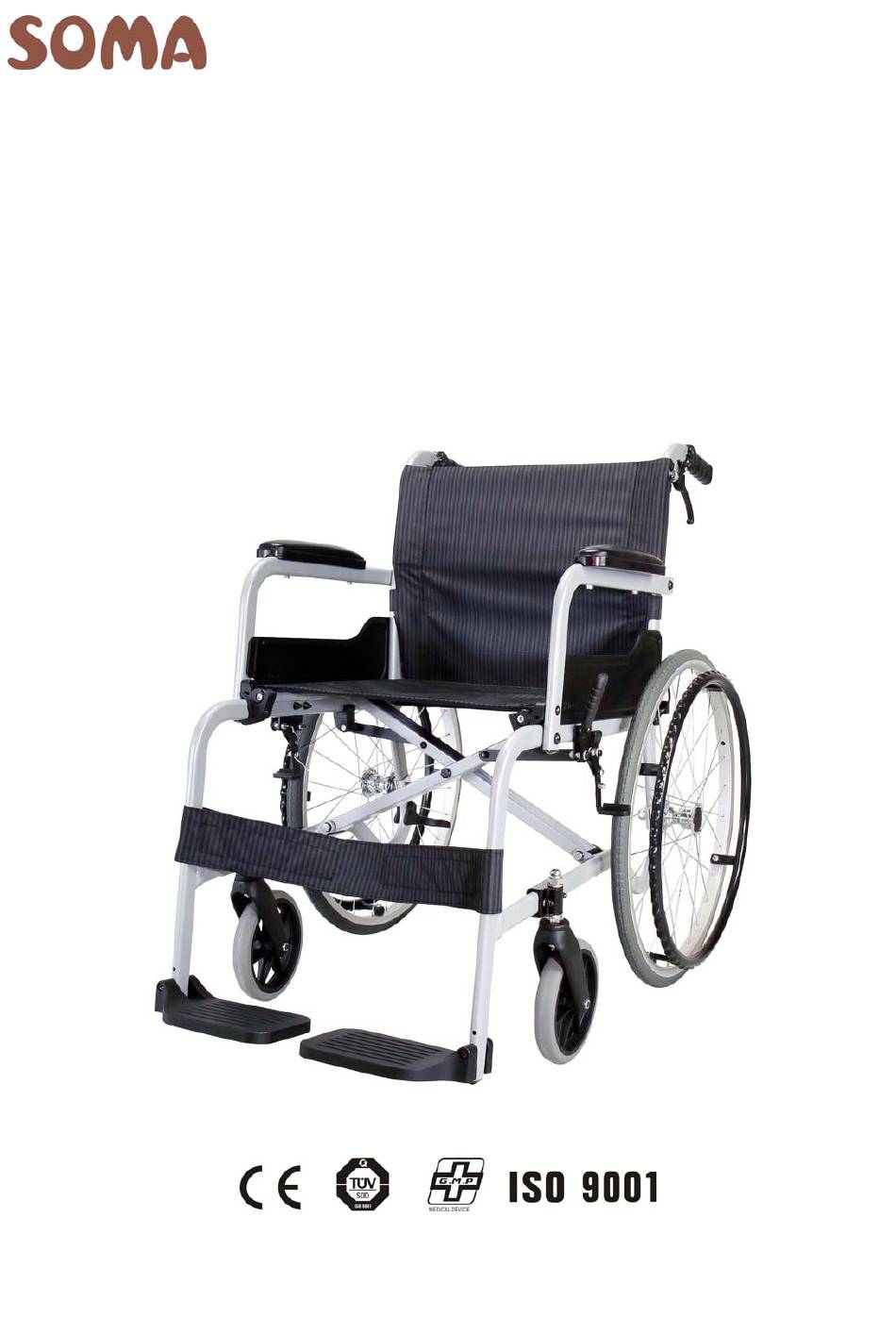

  • Page 1 Manual Wheelchair Owner's Manual SM-100.5 Series (SM-100.5&SM-150.5)
  • Page 2 GENERAL WARNING  DO maintain your chair well, in particular check the tyre (tire) pressure since this affects the efficiency of the brakes.  DO make sure both brakes are applied before getting in or out of the chair.  DO make sure both brakes are applied when the chair is not being pushed or used. ...
  • Page 3  DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by means of any removable (detachable) parts of the wheelchair may result in injury to the user and/or assistant or damage to the wheelchair.  DO NOT use the wheelchair when back joint folded to against tipping over backwards. It is only for folding and storage purpose.
  • Page 4 CE MARKING  This wheelchair complies with the requirements of the Medical Devices Directive 93/42/EEC. CAUTION:  When prescribing wheelchairs for use by full or partial amputees (above or below knee, single or double) or other conditions that affects the user's natural center of gravity and might cause the wheelchair to tip or the person on the wheelchair to fall off, we suggest contacting your therapist or dealer as well as attaching anti-tippers, pelvic belt, or other additional safety accessories.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE ............................. 1 2. SAFETY ............................1 2.1 Doorways ..........................1 2.2 Leaning ..........................2 2.3 Negotiating Inclines ....................... 2 2.4 Kerb(Curbs) ........................2 2.5 Stairs ............................. 3 2.6 Streets ..........................3 2.7 General ..........................3 2.8 Upholstery ..........................
  • Page 6 4.11 Tilting by the Attendant................... 13 4.12 Tilting by the User ...................... 14 4.13 Going Down Curbs ....................14 4.14 Going Down Curbs Forwards With an Attendant ........14 4.15 Going Down Curbs Backwards With an Attendant ........15 4.16 Going Up Curbs ......................15 4.17 Going Up Curbs Forwards With an Attendant ..........

  • Page 7: Preface

    1.2 This owner's manual is written for Karma wheelchair: SM-100.5 series. 1.3 The symbols used in this owner's manual are explained below. Pay special attention to the parts marked with these symbols.

  • Page 8: Leaning

    push rims will allow you to maintain maximum balance. Do not try to force yourself over an obstruction by propulsion and never use the sides of a doorway to pull yourself through a passageway. 2.2 Leaning Do not lean over the side of your wheelchair since such an action may cause you to lose balance and fall.

  • Page 9: Stairs

    2.5 Stairs 2.5.1 Always use two or more assistants. Tilt the wheelchair to its point of equilibrium. One assistant (at the back) holds the wheelchair up against the first step, gripping the handles firmly to lift. The second assistant, holding firmly a fixed part of the front frame, lifts the wheelchair above the stairs and holds it while the first attendant places one foot on the following step and repeat the operation.

  • Page 10: Upholstery

    2.8 Upholstery 2.8.1 When cleaning the upholstery, use warm water and a mild soap. 2.8.2 Upholstery cleaner/foam can also be used, but avoid other cleaning solvents. 2.9 Anti-tippers Please purchase anti-tippers and always use them to avoid personal injury. The distance between anti-tipper and wheels is more than 5cm;...

  • Page 11: Labeling

    your own safety as well as that of others. ALWAYS follow the Highway Code when outdoors and the guidelines written in this owner's manual. 2.11.2 Do not let children stand or play on the wheelchair. (See Figure 2.7) 2.12 Labeling Please carefully read all the labeling on the wheelchair before driving it.

  • Page 12: Parts Description (Sm-100.5 Wit 22" Series)

    3.1.3 The casters have PU tyres tires for greater durability. 3.1.4 Rear wheels are 22 inches in diameter and solid PU tyres (tires). 3.1.5 SM-100.5 series are equipped with 16″ rear wheels. 3.2 Parts Description (SM-100.5 Series With 22") 1. Push Handle 8.

  • Page 13: Parts Description (Sm-150.5 Wit 16" Series)

    3.3 Parts Description (SM-100.5 Series With 16") 1. Push Handle 8. Armrest 2. Attendant Brake 9. Side Panel 3. Parking Brake 10. Seat Upholstery 4. Cross Frame(Cross Bar) 11. Calf Strap 5. Rear Wheel 12. Footplate 6. Caster 13. Tipping Lever 7.

  • Page 14: Folding

    Figure 4.1 Figure 4.2 Figure 4.3 Figure 4.4 CAUTION: ● When completing step 2, never put your fingers around the sides or under the chair as they can be trapped between the seat and the frame. (See Figure 4.5) Figure 4.5 4.2 Folding 4.2.1 Flip up the footplates.

  • Page 15: Footplate Height

    4.3.3 DO NOT: Try to remove the wheels while the wheelchair is occupied even when using anti-tippers. 4.4 Footplate Height 4.4.1 To adjust footplate height use the Karma tool provided to loosen the bolt at the bottom of the footrest arm. 4.4.2 Adjust to required height and re-tighten.

  • Page 16: Footrest Installation And Adjustment

    4.6 Footrest Installation and Adjustment Install footrest： 4.6.1 Loose screws by using 5mm Allen key which bundled in the tool box and adjust the length to an appropriate position to fit user’s leg-length. (Figure 4-16). Figure 4.16 4.7 Transporting and Storing Make sure the wheelchair is folded when it is stored.

  • Page 17: Transferring In

    4.8 Transferring In 4.8.1 Engage both hand brakes. 4.8.2 Swing the footplates up. 4.8.3 The user lowers himself/ herself into the seat using the armrests for support. 4.8.4 Turn the footplates back down, so that the user can place his feet on them. Ensure that the heels rest against the heel supports to prevent contact with the casters.

  • Page 18: Attendant Pushing And Self-Propelled

    ● Please ensure that neither the tread on your tires nor the brake block has become too worn. If pneumatic tires are fitted, please maintain at the recommended tire pressure for the same reason. ● Please ensure that occupant's fingers do not get caught in the brake. ●...

  • Page 19: Tilting By The Attendant

    4.10.6 Always be careful not to go too fast or turn too quickly and try to achieve a smooth steady ride. 4.10.7 Before crossing the tracks, please stop completely and look both ways. 4.10.8 Cross the tracks perpendicular to avoid your wheels getting stuck. 4.10.9 Do not drive at full speed over the railroad tracks.

  • Page 20: Tilting By The User

    the chair will feel unsafe. ● Lower with a straight back; keep your foot on the anti-tipper and lower the chair slowly forwards softly to the ground. 4.12 Tilting by the User 4.12.1 Make sure your feet are on the footplates and will not slip off. 4.12.2 Release both brakes.

  • Page 21: Going Down Curbs Backwards With An Attendant

    4.14.2 Move the chair slowly and carefully forwards while tilting it back slightly. Be ready to take the weight when the rear wheels cross the curb edge. Ensure that both rear wheels touch the ground at the same time to avoid tipping the chair. 4.14.3 Gently lower the front casters.

  • Page 22: Inspection And Maintenance

    4.19.1 Please note: avoid flights of steps particularly if no extra help is available. 4.20.2 Use ramps or lifts wherever possible. 4.1.3 Two attendants are necessary, each capable of carrying at least half of the combined weight of the person and the wheelchair. 4.19.4 Each helper should bend at the knees and grip the main frame: with the front attendants hands just under the front of the seat, with the back attendant's hands holding the frame just under the push handles.

  • Page 23: Regular Maintenance Record

    5.1.8 A qualified technician can be found with an authorized distributor/dealer. CAUTION: ● Visit a Karma wheelchair dealer for inspection and maintenance if you find anything abnormal. 5.2 Regular Maintenance Record To make sure your wheelchair is in good condition, visit your Karma wheelchair dealer regularly for maintenance (and keep records accordingly) every six months after purchasing.
  • Page 24 CASTERS  Inspect the casters for smooth rotation of the caster wheel and caster Ⅴ assembly  Inspect the caster for wear in the bearings/mountings and for tyre (tire) wear Ⅴ or damage REAR WHEELS  Quick-release axles lock properly; lubricate if necessary Ⅴ...

  • Page 25: Optiona And Accessaries

    6. OPTIONA AND ACCESSARIES  Backrest Bag  Multi-Purpose Safety Belt  Standard size.  Attaches to all Karma manual wheelchairs.  Attaches to all Karma manual wheelchairs. CAUTION: ● Attaching accessories may alter the overall stability and center-of-gravity of the chair.

  • Page 26: Specifications

    8. SPECIFICATIONS （±10 ㎜, ±0.5kg） Model SM-100.5F16" SM-100.5F22" SM-150.5F16" SM-150.5F22" Wheels 7"*16" 7"*22" 7"*16" 7"*22" Overall Length 930 ㎜ 970 ㎜ 930 ㎜ 970 ㎜ Overall Width 650 ㎜/676 ㎜ Overall Height 870 ㎜ Total Weight 10.6（±0.5）kg 11.3（±0.5）kg 11.0（±0.5）kg 11.7（±0.5）kg Seat Width 400 ㎜/450 ㎜...

  • Page 27: Cleaning & Recycling

    Static Stability Test (According to 7176-1:1999) Dummy used is 100 kg SM-100.5&150.5 18” F22” Tipping Angle F22" 17.2° Front Wheels Unlocked 11.6° Backward Rear Wheel Locked 14.4° Sideways 9. CLEANING & RECYCLING 9.1 Cleaning In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow.

  • Page 28: Warranty

    not have access to the world wide web please use your local phone directory, ask for operator assistance or go to your local government center for more information. Earth Day is every day. 9.4.2 Check with your local recycling center on where and how to recycle your wheelchair as this information varies from region to region.

  • Page 29: The Responsibilities Of The User

    10.4.2 Inspection, adjustment, cleaning, etc. 10.4.3 Karma designated self-inspection costs. 10.5 The Responsibilities of the User 10.5.1 Fully adhere to operation guidelines set forth in this owner's manual. 10.5.2 Perform self-inspection and basic maintenance. 10.5.3 Keep a record of self-inspections and basic maintenance. 10.5.4 Not permit any alteration, addition, or modification or use of parts not manufactured by Karma.
  • Page 30 Full name: Gender: Date of Birth: Address: Model: Serial Number: Date of Purchase: Dealer's Data Name of the Store: Phone Number and Address: If you have any suggestions on how to improve our products, please do not hesitate contacting your local dealer to let us know what you think of your wheelchair. Thank you and enjoy.
  • Page 32 110400000426 Rev:01 2018.05...
