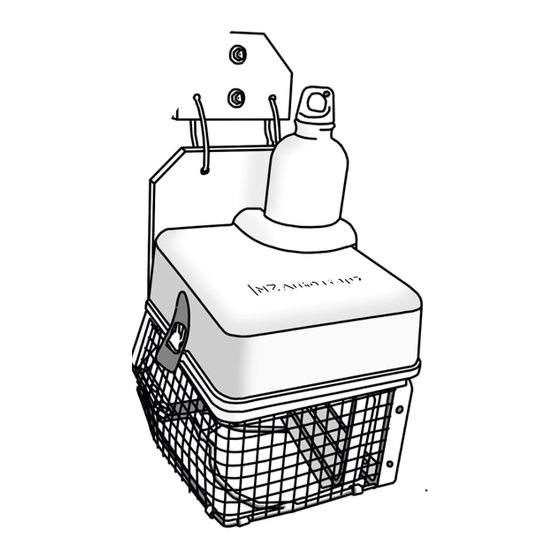

Summary of Contents for NZ AutoTraps AT220

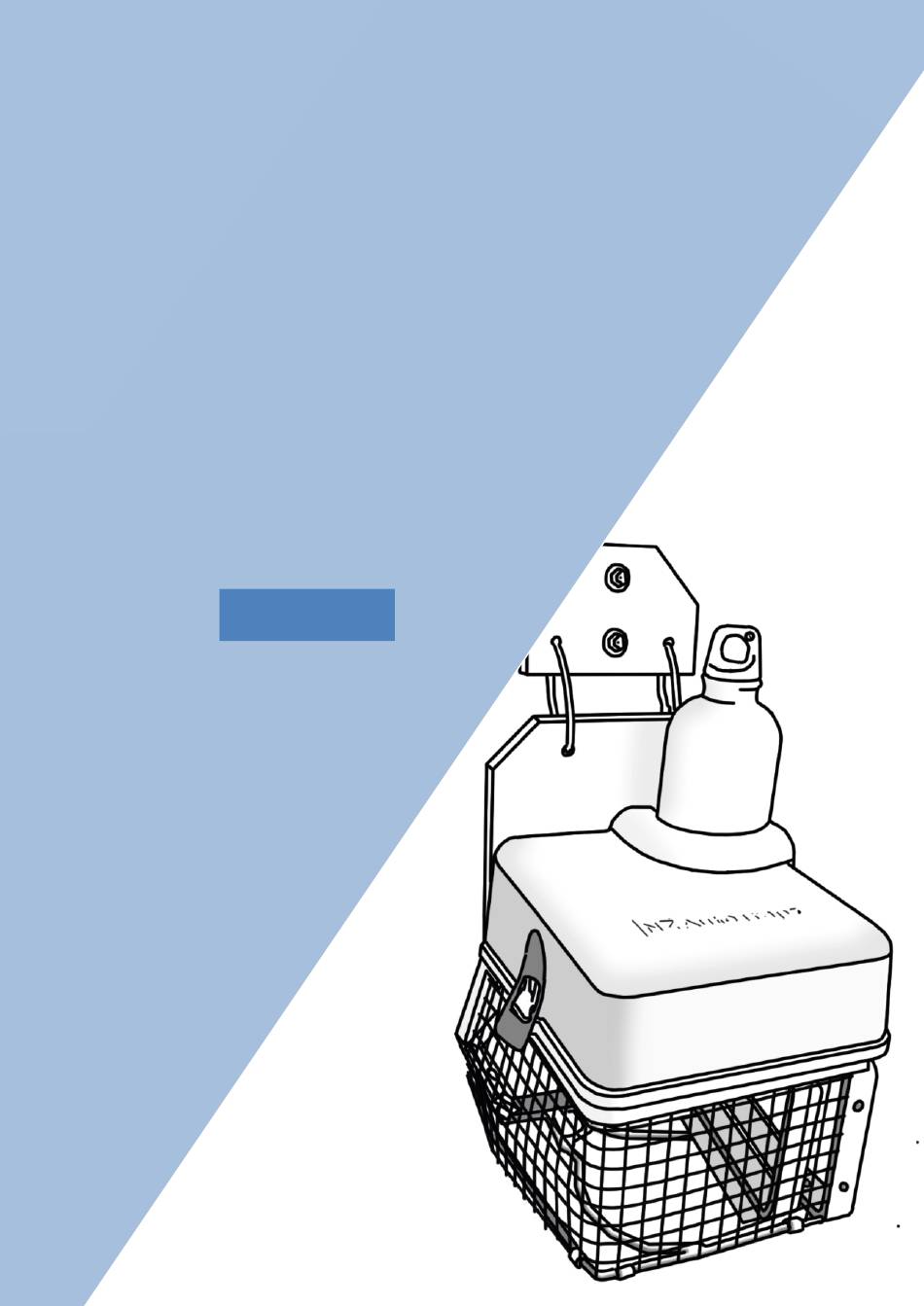

- Page 1 AT220 Manual NZ AutoTraps...
-
Page 2: Table Of Contents
ONTENTS AT220 Components ..........2 Health & Safety: ............3 Trap Button and LED ..........5 Setting up the AT220 ..........6 Package contents: ............6 Mounting the AT220: ........... 7 Filling the bait container: ........... 9 Connecting/Replacing the battery: ...... 10 Charging the Battery .......... -
Page 3: At220 Components
2 AT220 C OMPONENTS Bait Spring kill Bottle power Trigger Kill Bar Possum Trap PCB keyhole controller Rechargeable Reset Drive battery. NZ AutoTraps AT220 Manual 5/3/2022... -
Page 4: Health & Safety
& S EALTH AFETY The AT220 is designed to kill Possums and can cause serious harm to the user if not treated with care and caution. The trap trigger is sensitive and can be activated by a bump or knock. - Page 5 ✓ If intervention in the path of the kill bar is necessary, then we recommended to use the NZAT Long Gripper, page 16 NZ AutoTraps AT220 Manual 5/3/2022...
-
Page 6: Trap Button And Led
These are used for manual control of the trap and diagnostics. It is important to identify these before continuing as they are required in a substantial portion of the tasks. Please find them now Button LED (light) NZ AutoTraps AT220 Manual 5/3/2022... -
Page 7: Setting Up The At220
AT220 ETTING UP THE ACKAGE CONTENTS AT220 automatic resetting and rebaiting trap • 1x battery pack • 1x complementary battery charger (Single purchases only) * • 500lm bait bottle • 2x mounting screws *Bulk and repeat purchases may not include a charger... -
Page 8: Mounting The At220
AT220: OUNTING THE Follow carefully to maximise the capabilities of the AT220 WARNING: BEFORE MOUNTING OR HANDLING THE AT220 BE SURE THE KILL BAR IS DOWN AND THE BATTERY IS DISCONNECTED For Possums, rats, and mice: The trap is best mounted 300mm above a ramp or small platform. - Page 9 Check bait block overflow: The best trap and ramp position is when bait block overflow runs on to the keyhole and then on to the ramp. Reposition the trap or ramp as required to let the bait overflow fall on to the ramp NZ AutoTraps AT220 Manual 5/3/2022...
-
Page 10: Filling The Bait Container
Reposition the trap or ramp if the excess bait misses the ramp. Select trap Auto. Press the Button 4 times, LED changes to green and the trap reset will restart. Extra Bait can be Purchased from our Website: NZAutoTraps.com NZ AutoTraps AT220 Manual 5/3/2022... -
Page 11: Connecting/Replacing The Battery
If the trap is not set: the LED will be constant green and begin resetting OR the LED will blink a red fault code. Refer to LED functions page 17 for all the LED functions. NZ AutoTraps AT220 Manual 5/3/2022... -
Page 12: Charging The Battery
APPROXIMATELY AN HOUR FOR THE RED LED TO INDICATE IT IS CHARGED WARNING: WHEN YOU UNPLUG THE USB END ALSO UNPLUG THE BATTERY. DO NOT LEAVE THE BATTERY CONNECTED TO THE USB FOR EXTENDED PERIODS NZ AutoTraps AT220 Manual 5/3/2022... -
Page 13: Setting To Auto
The trap kill bar should be in the set position. Press the Button once if the LED blinks green your trap is set and working. If not blinking green see Button and LED page 17. NZ AutoTraps AT220 Manual 5/3/2022... -
Page 14: Quick Visit Checks
Button once to get the green light, the trap is now in manual mode and the trigger is active. THE TRAP CAN STILL FIRE IF BUMPED. NZ AutoTraps AT220 Manual 5/3/2022... -
Page 15: Clearing Set Up
LEARING To make clearing easier we want the trap to partially set See Following page for how this should appear when correctly completed: NZ AutoTraps AT220 Manual 5/3/2022... - Page 16 Trigger the trap and try again. Amber / red LED: Note: Manual Pump mode will time out after 20 minutes. Use Option 1 if you are wanting to disable the trap for extended periods. NZ AutoTraps AT220 Manual 5/3/2022...
-
Page 17: Clearing Debris
Disconnect the battery if you are wanting this state for extended periods. WARNING: DO NOT PUT HANDS OR FINGERS UNDER THE KILL BAR. MAINTAINANCE OF THE TRAP CAN BE PERFORMED SAFELY WITHOUT PLACING HANDS INSIDE OF THE TRAP NZ AutoTraps AT220 Manual 5/3/2022... -
Page 18: Led And Button Functions
The Button has 4 different press combinations, 1 press, 2 presses, 3 presses and 4 presses. Remember to delay at least three seconds between combinations. The trap has three different modes, automatic, reset drive manual and pump drive manual. NZ AutoTraps AT220 Manual 5/3/2022... -
Page 19: Led Functions
Drive timeout. Check for a kill bar jam WARNING: THE TRAP MAY STILL TRIGGER!!! LED constant Trap is resetting or No action required green waiting to reset To press the Button will start the reset sequence NZ AutoTraps AT220 Manual 5/3/2022... - Page 20 The Button will run the amber Manual bait pump when pressed 4 presses to end manual. If left, manual will timeout Trap just triggered. No action required. Possum detector is Bump trap, LED should working flicker red NZ AutoTraps AT220 Manual 5/3/2022...
-
Page 21: Button Functions
Four presses to exit hold in or bait if trap is in manual manual manual Note 1: Wait at least 3 seconds between press combinations. But when completing a combination, you will want to click the button quickly NZ AutoTraps AT220 Manual 5/3/2022... -
Page 22: Making The Trap Safe
If the battery is flat Press the Button once if there is no LED the battery may be flat. It is necessary to replace the battery to trigger the trap WARNING: NEVER ENTER THE TRAP ASSUMING UNPLUGGED IS SAFE NZ AutoTraps AT220 Manual 5/3/2022... -
Page 23: Long Term Safe
Long term safe is where the kill bar is down, and the battery is disconnected. To make the trap “Long Term Safe” first make the trap short term safe as described above then disconnect the battery. NZ AutoTraps AT220 Manual 5/3/2022... -
Page 24: Trouble Shooting
ROUBLE HOOTING Use this guide to step through a trap problem ’ ½ RAP WON T RESET OR IS ONLY NZ AutoTraps AT220 Manual 5/3/2022... -
Page 25: Trap Keeps Going Off
RAP KEEPS GOING OFF NZ AutoTraps AT220 Manual 5/3/2022... -
Page 26: Trap Wont Trigger
RAP WONT TRIGGER NZ AutoTraps AT220 Manual 5/3/2022... -
Page 27: Contact Details
10 C ONTACT ETAILS Website: NZAutoTraps.com Email: workshop@nzautotraps.com NZ AutoTraps AT220 Manual 5/3/2022...
