2. Installation Procedure
First software setup should be done, and then do the USB connection as shown below.
Software Setup à Restart your Computer à Hardware Setup à Using USB Card Reader
3. Software Setup for Windows Operating Systems
3.1. Software Setup for Windows 98/98SE/ME/2000/XP only
Before connecting the USB Card Reader into USB port, install the device driver as per the following
instructions.
1.
Insert the Installation CD in the CD-ROM drive.
2.
The software will be automatically installed on your computer. Otherwise, Double -click the CD-ROM
icon in My Computer to browse the contents in the Setup Disc. Then, double -click the Setup icon.
3.
Follow the on-screen instructions to complete the software setup.
4.
After the installation is complete, restart the system.
The software driver revision number is mentioned in README.TXT in the Setup Disc. After completing
device driver setup, refer to Hardware Setup and install the USB Card Reader.
3.2. Hardware Setup
After completing device driver setup for your USB Card Reader and restarting the system, refer to following
instructions to connect the USB Card Reader.
1.
Connect USB cable of your reader unit to the available USB port of your computer.
2.
Your computer automatically recognizes the USB Card Reader.

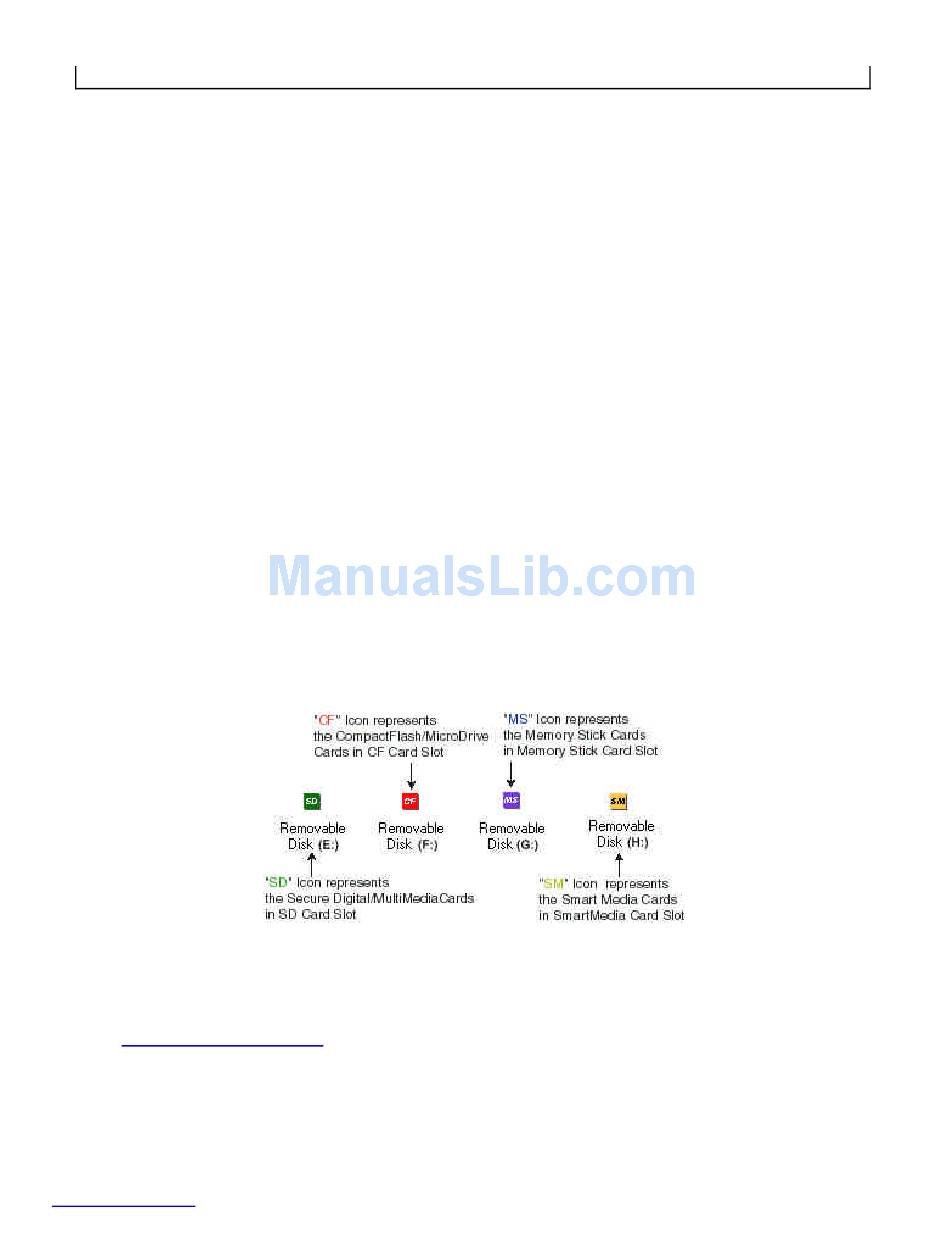

Double click on My Computer. You will see four Removable Drive icons representing the four sockets
3.
in the USB Reader as shown below.
Note: If you are having Windows XP earlier than Service Pack1, you will not see the above icon images.
Instead, you will only see four removable drive letters representing the sockets in the USB Reader. If you
want the above icon images to show up, please download and install Service Pack1 from Microsoft web
site
http://www.microsoft.com
you can rename the cards as "CF", SD", "SM" and MS" to help you distinguish the cards on your
computer.
The installation of your USB Card Reader is now complete.
www.simpletech.com
and then reinstall the USB driver. Alternately, when you format the cards,
3 of 7
Document Number: 61600-00049-001
