Atek ARF S 58 User Manual

• The installation of the product is carried out by the customer who purchases the product, according to the wiring diagrams,
installation information, etc. in this manual.
• Maintenance and repair should be done by the technicians authorized by the manufacturer firm.
• There must be minimum distance between the sensor and control unit. Avoid additions except the suitable connector unless
it needs.
• Keep away the sensor cable from as high power energy cables, contactor, motor, switched power supplies, inductive and
capacitive noisy supplies.
• Shielding edge of the sensor cable must be ground connected.
• Not to damage the sensor supply directions and voltage must be paid attention (For TTL sensor max. 5V; PP, HTL, HPL sensor
max. 30V). Don't energize before all connections completed.
• Transport and storage should be at their original packaging and an ambient temperature of -40°C / +100°C in such a way that
they will not be exposed to dust, humudity, impact, vibration, falling or water.
• Chemicals such as alcohol, thinner etc. should not be used for cleaning the product. The product should be wiped with a
damp cloth.
• The product may be damaged and may become unusable if used outside of the specifications in the user manual.
• The product will be out of warranty if used outside of the specifications in the user manual and opened or repaired other
than authorized services.
SIGNAL
A(+)
A(-)
B(+)
B(-)
C(+)
C(-)
D(+)
D(-)
R(+)
R(-)
+V
0V

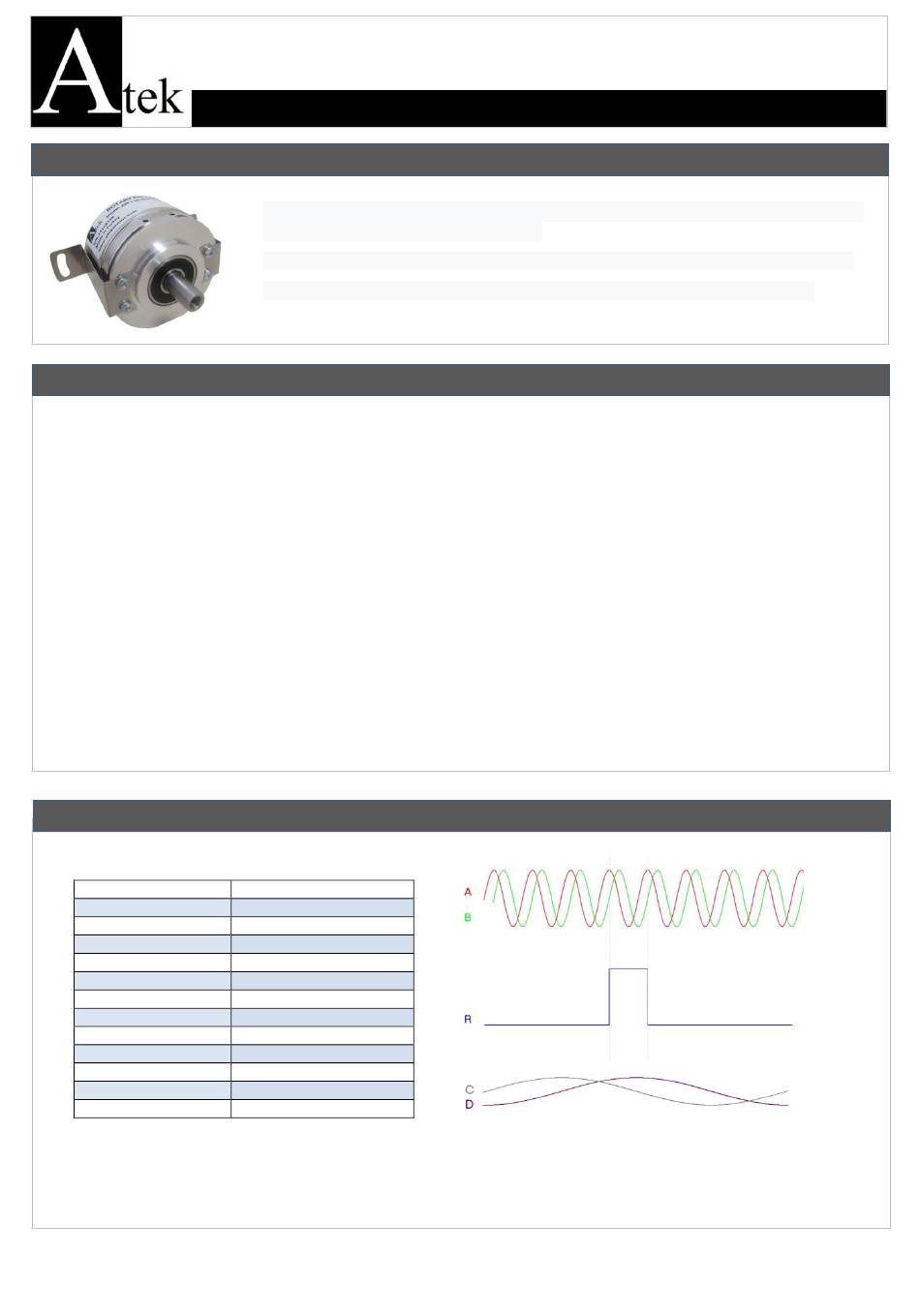

A and B signals are incremental signals, 2048 units are produced in one turn. R (reference) signal is generated 1 unit in 1
round. C and D signals are absolute signals. They are generated 1 unit in 1 round.
KK-ARF.002 01.03.21 Rev No:2
SINCOS ROTARY ENCODER
USER MANUAL

GENERAL INFORMATIONS

ARF S 58 series SinCos rotary encoders measure with magnetic and optical principle. They
offer 2048 pulse resolution per revolution.
They are particularly suitable for applications in the field of elevator and drive technology.
Thanks to their high signal quality, they work stably without being affected by noise.

WARNINGS

ELECTRICAL CONNECTIONS

CABLE COLOR
Yellow
Blue
Green
White
Orange
Purple
Light Blue
Brown
Pink
Grey
Red
Black
ARF S 58
1
