Control Panel Type ABS CP 112/212
ON
ON
ON
ON
ON
ON
EN
User Guide
www.sulzer.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABS CP 112 and is the answer not in the manual?

Questions and answers

Related Manuals for Sulzer ABS CP 112

Summary of Contents for Sulzer ABS CP 112

  • Page 1 Control Panel Type ABS CP 112/212 User Guide www.sulzer.com...
  • Page 2 Sulzer. Sulzer assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.

  • Page 3: Table Of Contents

    Control panel type ABS CP 112/212, User Guide CONTENTS About this guide, audience and concepts Overview of functions and usage Menus: Status and settings 2.1 Select language ............. . 7 2.2 Menus: status information and all settings .

  • Page 4: About This Guide, Audience And Concepts

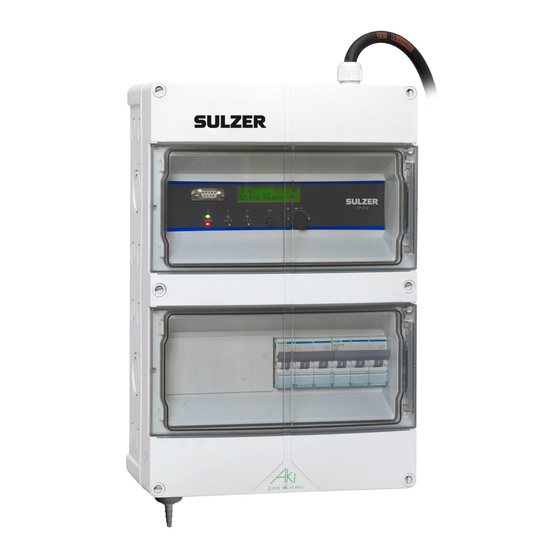

    About this Guide, Audience and Concepts ABOUT THIS GUIDE, AUDIENCE AND CONCEPTS This guide describes the pump control panels CP 112 ⁄ 212. The difference be- tween the two products is that CP 112 is intended for one pump whereas CP 212 can control two pumps.

  • Page 5: Overview Of Functions And Usage

    Control panel type ABS CP 112/212, User Guide OVERVIEW OF FUNCTIONS AND USAGE CP 112 and CP 212 are control panels for one and two pumps respectively. These units have the same functionality in terms of their capability to control pumps and manage alarms —...
  • Page 6 Chapter 1 Overview of Functions and Usage The menu selection knob The menu selection knob has two functions: ● By rotating the knob in either direction, you do one of the following: ○ Scroll through menu items. ○ Change the value of a menu item (the value is either a number or an item in a list of alternatives;...

  • Page 7: Menus: Status And Settings

    Control panel type ABS CP 112/212, User Guide MENUS: STATUS AND SETTINGS This chapter describes all settings that need to be properly set before the pump controller is used. How to use the menu selection knob to enter and save values...
  • Page 8 Chapter 2 Menus: Status and Settings Table 2- 2. Settings, sorted clockwise (Sheet 1 of 2) Menu item Value Comment {Analogue, Choose method of level control: an analogue level-sensor or Sensor Type Air Pressure, start/stop floats. Start/stop float} Scaling 100%= Value in m/ft/bar Scaling 0%= Value in m/ft/bar...
  • Page 9 Control panel type ABS CP 112/212, User Guide Table 2- 2. Settings, sorted clockwise (Sheet 2 of 2) Menu item Value Comment Nominal Curr. P1 Amperes CP 112 ⁄ 212 has a current transformer for each pump. {Off, Low current, Dry Run Det.
  • Page 10 Chapter 2 Menus: Status and Settings...

  • Page 11: Technical Data And Emc Compatibility

    Control panel type ABS CP 112/212, User Guide TECHNICAL DATA AND EMC COMPATIBILITY Technical data Ambient operating temperature: –20 to +50 °C 180mm Ambient storage temperature: –30 to +80 °C Cabinet and mounting: DIN rail, IP65. Mounting holes: see figure 5.5x9mm...
  • Page 12 Sulzer Pump Solutions Ireland Ltd, Clonard Road, Wexford, Ireland Tel +353 53 91 63 200, Fax +353 53 91 42 335, www.sulzer.com 2014 Copyright © Sulzer...

This manual is also suitable for:
