Draper SLX 110V Instructions Installation & Operation

Scissor Lift - SLX 110V
Ceiling-recessed video projector lift

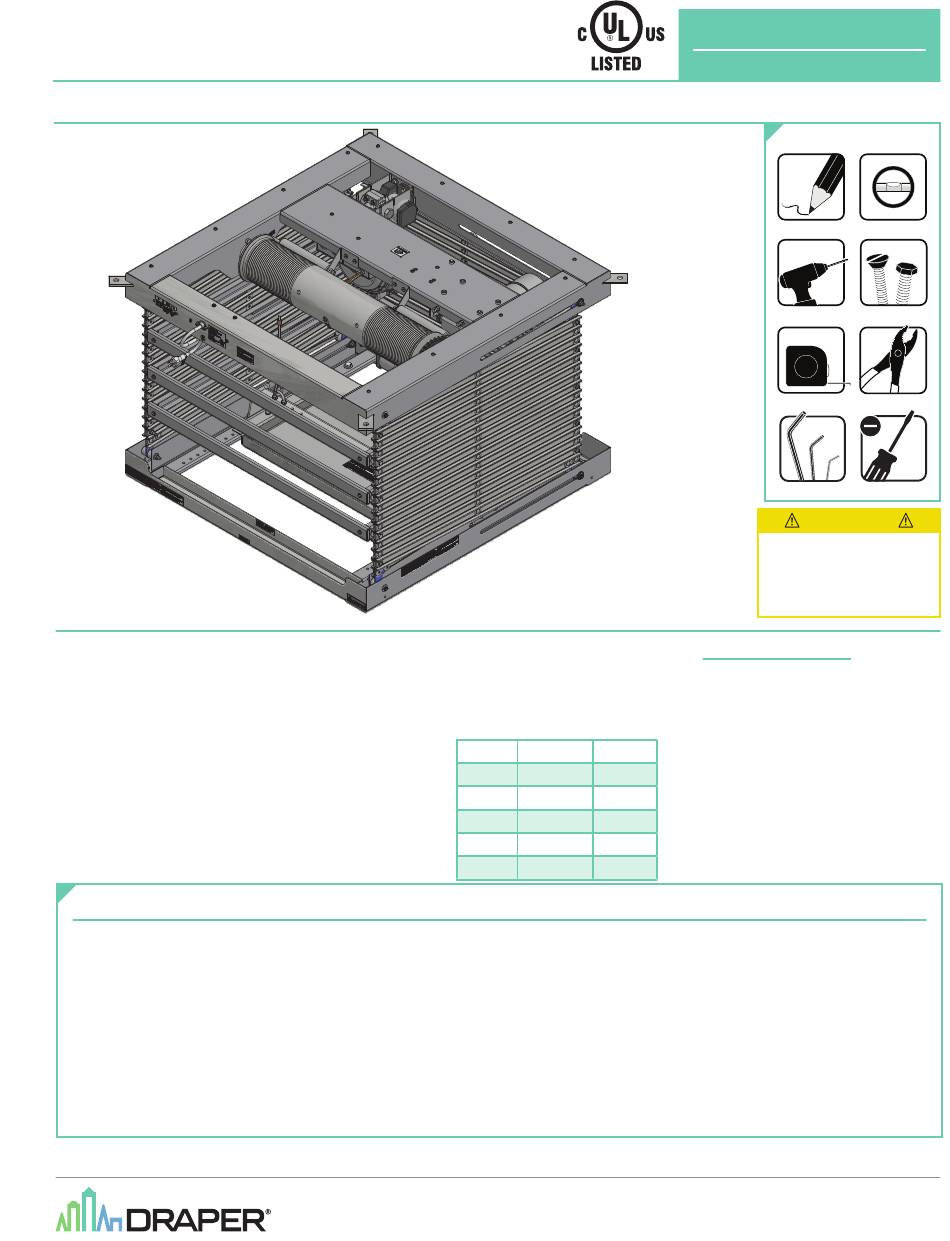

Overview - Components

Overview - Planning

1. Based on screen location and projector
specifications, determine proper position for
projector installation.
2. Confirm that there is adequate space for
installation and operation. Minimum clearance
above ceiling level varies according to height
of projector, optional projector mounting
bracket, optional ceiling closure and optional
Environmental Housing.
3. Arrange to provide service access to the unit.
Contents
Overview - Components .......................................................................................1
Overview - Planning ..............................................................................................1
PLEASE READ - Safety Information ....................................................................2
Section 1 - Hanging Unit ......................................................................................3
Section 2 - Operation............................................................................................3
Section 3 - Adjusting for Level or Center of Gravity ........................................4
Section 4 - Installing Projector ...........................................................................4
Section 5 - Attaching Universal Projector Mount to Projector Pan ..............4
Section 6 - Installing Optional Environmental Air Space Housing ...............5
Installing Optional Ceiling Trim Kit .............................................................................5
4. When installed with Environmental Air Space Housing
unit is suitable for use in an environmental air space
in accordance with Section 300.22
Electrical Code, and Section 2-128, 12-010
the Canadian Electrical Code, Part 1, CSA C22.1.
5. Total capacity of lift including cables, closure, projector,
and bracket:
SLX10 453 LBS
435 LBS
SLX14
418 LBS
SLX17
SLX21 393 LBS
375 LBS
SLX24
350 LBS
SLX28
Section 7 - Installing Ceiling Closure .................................................................5
Section 8 - Connecting Controls to Data Cable Splitter Board ....................6
Section 9 - Clearing and Resetting Show Position ..........................................6
Section 10 - Optional Delay Feature ...................................................................6
Section 11 - Electrical Connections ...................................................................7
Section 12 - Operation ..........................................................................................7
Section 13 - Testing Safety Limit Switches .......................................................7
Section 14 - Adjusting Limit Switches ...............................................................7
Section 15 - Wiring Schematic ............................................................................8
Section 16 - Dimensions ......................................................................................8
INSTRUCTIONS
INSTALLATION & OPERATION
As Soon As Lift Arrives
of the National 1. Open carton and inspect for damage.
(C)
and 12-100 of
(3)
2. Locate the following parts:
A. The unit itself
B. Controls
205KG
C. Any optional equipment
197KG
190KG
178KG
170KG
159KG
If you have any difficulties installing or servicing your
Scissor Lift SLX, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: ScissorLiftSLX_110UL_Inst22
© 2022 All Rights Reserved
TOOLS REQUIRED
LEVEL
PENCIL
POWER DRILL HARDWARE
(by others)
TAPE MEASURE
PLIERS
SCREWDRIVER
HEX WRENCH
CAUTION
Read and understand
all warnings
(Page 2
before
of this document)
beginning installation.
