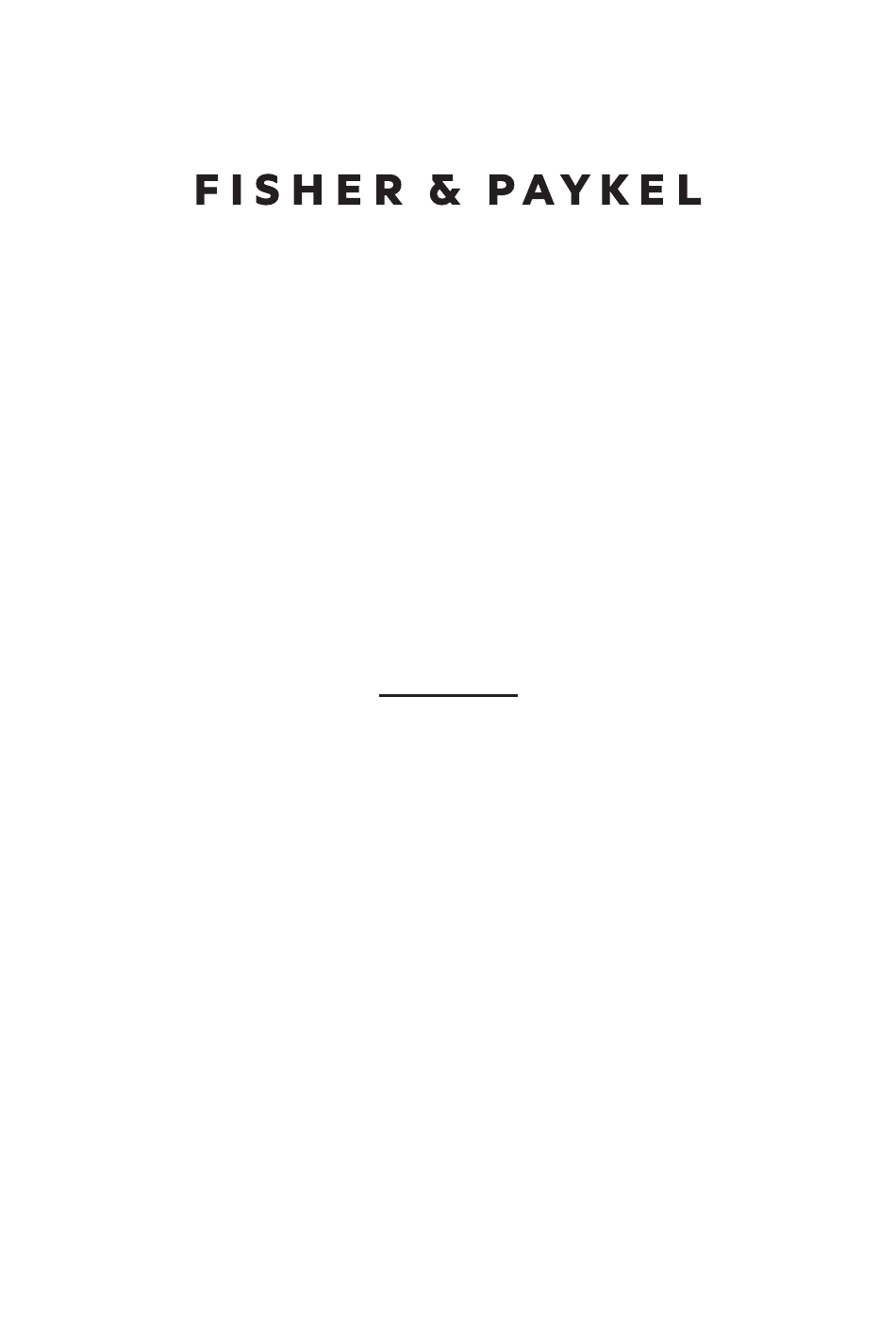

- Page 1 FABRIC CARE CABINET FC1260H1 & FC1260HG1 models USER GUIDE NZ AU...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings First use Setting a cycle Loading suggestions Cycle options Favourite Delay Start Key Lock Wi-Fi connection and Remote Mode Settings Cleaning Water tank Troubleshooting Fault codes Manufacturer’s warranty and service guide Registration To register your product visit our website: fisherpaykel.com/register... -
Page 5: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet box), ensure that it is positioned so that it does not come into contact with water or moisture. - Page 6 Do not overload the cabinet beyond its rated capacity. Ensure air can flow freely around items. MODEL MAXIMUM CAPACITY* MAXIMUM CAPACITY* (ITEMS) (HANGERS) FC1260H1 & FC1260HG1 *Capacity refers to the maximum number of items the cabinet can treat at any one time.
- Page 7 SAFETY AND WARNINGS Never put dripping wet clothes in the cabinet as excess water may cause an electrical fault. Do not under any circumstances dry an electric blanket or any other electrical, plastic or rubber items in the appliance, unless the care label specifically states it is safe to do so.
- Page 8 SAFETY AND WARNINGS contaminated by hair care products be placed in this appliance, they should first be washed in hot water with extra detergent — this will reduce, but not eliminate the fire hazard. They should not be removed from the appliance and piled or stacked while hot. Items that have previously been cleaned in, washed in, soaked in or spotted with flammable liquids or solids, eg petrol/gasoline, kerosene, dry cleaning solvents, vegetable or cooking oil, acetone, denatured alcohol, some brands of spot removers,...
-
Page 9: First Use
FIRST USE Features and accessories 1 Top rail 2 Rear racks (folding) 3 Lower rack (removable) 4 Hanger storage hooks 5 Hangers 6 Lint filter* 7 Water tank 8 Drip tray *Located behind front grille. - Page 10 FIRST USE Control panel 1 Display 2 On/Off 3 Favourite 4 Delay Start 5 Key Lock 6 Remote mode 7 Function indicators 8 Function selector 9 Fabric Care indicators !0 Fabric Care selector !1 Capacity indicators !2 Capacity selector !3 Start/Pause...
-
Page 11: Setting A Cycle
SETTING A CYCLE Hang or place items in the cabinet. Allow enough space between items for air to flow freely. Ensure items are not touching the base or sides of the cabinet. Check the water tank. : Ensure the tank is empty. : Empty any REFRESH/DEODORISE/SANITISE water in the tank, then refill with fresh tap... - Page 12 SETTING A CYCLE Selecting a fabric type Press to scroll through options. FABRIC CARE Selecting the load size Press to scroll through options. CAPACITY Starting or pausing the cycle Press START/PAUSE Cancelling the cycle Press POWER...
-
Page 13: Loading Suggestions
LOADING SUGGESTIONS For best results, place similar items in the cabinet together and do not exceed the maximum capacity selected for the cycle. Hangers Use the hangers for shirts, blouses, pants, dresses, coats and other longer items. Only use the supplied hangers. Use the clips to secure items such as pants, skirts, strapless items or delicate tops. - Page 14 LOADING SUGGESTIONS Rear racks The racks are adjustable so you can hang a variety of clothing items, from shirts and blouses to dresses and suits. Adjust the racks to fit items of different sizes and shapes. Use the rear racks to drape items or to lay items flat.
- Page 15 LOADING SUGGESTIONS Lower rack Place shoes on the lower rack. Do not place items directly on the base of the cabinet. The lower rack can be removed to create more space for longer items. Lift the rack up to remove.
-
Page 16: Cycle Options
CYCLE OPTIONS Your cabinet has a number of cycle options to suit your fabric care needs. Selecting the most appropriate cycle for each particular load will help ensure you get the best results. Maximum capacity will vary depending on the function and fabric type selected. Some fabric types are unavailable with certain functions to ensure optimal fabric care. -
Page 17: Favourite
FAVOURITE Save your preferred cycle options for quick access next time you use the cabinet. Once you have saved a cycle, press to access the saved cycle. FAVOURITE Only one cycle can be saved at a time. Select your preferred cycle options. Press and hold to save. -
Page 18: Delay Start
DELAY START You can delay the start of a cycle between 15 minutes and 12 hours. You need to select your cycle options before setting DELAY START Select your preferred cycle options. Press to cycle through the DELAY START time options. Press to confirm. -
Page 19: Key Lock
KEY LOCK Lock the cabinet controls to prevent accidental use by children or when cleaning. When locked, the controls will be unresponsive, except for the button. POWER can be set at any time including while a cycle is running. KEY LOCK Press and hold to lock or unlock KEY LOCK... -
Page 20: Wi-Fi Connection And Remote Mode
WI-FI CONNECTION AND REMOTE MODE Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features. Getting started Ensure your home Wi-Fi network is turned on. You will be given step-by-step guidance on your mobile device. -
Page 21: Settings
SETTINGS Audio Turn button press and end of cycle sounds Alerts for notifications and faults will ON/OFF. still sound. Default: Press and hold KEY LOCK FAVOURITE Snd OFF Snd ON together until appears in the display. Factory default Reset and any other saved settings back to the factory default. FAVOURITE Press and hold KEY LOCK... -
Page 22: Cleaning
CLEANING Surfaces and accessories Wipe with a damp cloth and mild detergent, then dry with a clean, lint-free cloth. We do not recommend using the following cleaning products as they may cause damage: Plastic or stainless steel scouring pads Abrasive, solvent, household cleaners Acid or alkaline cleaners Hand washing liquids or soap Stainless steel cleaners or polishes... -
Page 23: Water Tank
WATER TANK When using the function, water is collected in the water tank in the base of the cabinet. Empty the water tank before or after every load. REFRESH/DEODORISE/SANITISE Before using the functions, fill the water tank with fresh REFRESH DEODORISE SANITISE tap water to the max line. -
Page 24: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Cabinet will not No power. Ensure the cabinet is plugged in and the start power supply is turned on at the wall. The door is not Ensure the door is firmly shut. properly closed. Water tank full, empty or not Ensure the water tank is correctly properly in place. - Page 25 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Cabinet is beeping Cabinet has a fault. Try turning the cabinet off and waiting and displaying one minute before turning it back on. a code If the fault code persists contact Customer Care. Refer to 'Fault codes'. Cycle taking Fabric type selected not Ensure the fabric type selected is...
-
Page 26: Fault Codes
FAULT CODES How do I know if there is a problem? Your cabinet will beep and an alert will show in the display. What to do First try to fix the issue and clear the alert according to the steps in the following table. If the problem persists 1 Note down the fault code. -
Page 27: Manufacturer's Warranty And Service Guide
MANUFACTURER’S WARRANTY AND SERVICE GUIDE To access your Warranty and Service Guide Scan the QR code with your smartphone to access your warranty and book a service, or view online at https://www.fisherpaykel.com/nz/ help-and-support/warranty-information To access your Warranty and Service Guide Scan the QR code with your smartphone to access your warranty and book a service, refer to your separate warranty and service book or view online at https://www.fisherpaykel.com/au/help-and-support/... - Page 28 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
