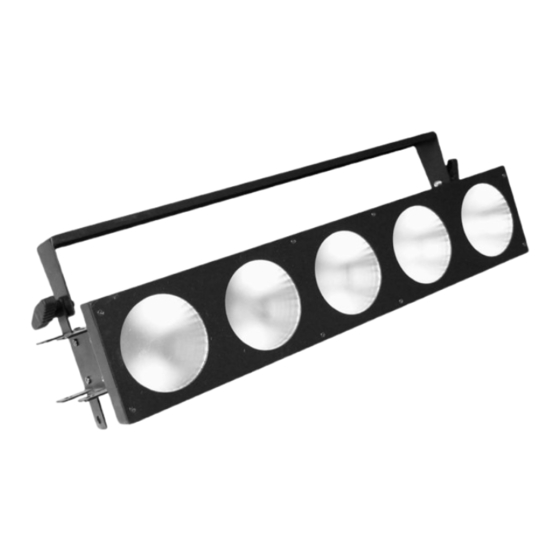

- Page 1 MadMax 5x10W COB LED Matrix Ref. nr.: 150.682 INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES...
- Page 2 ENGLISH Congratulations to the purchase of this Beamz Professional light effect. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock.
- Page 3 NEDERLANDS Hartelijk dank voor de aanschaf van dit Beamz Professional lichteffect. Neemt U a.u.b. een paar momenten de tijd om deze handleiding zorgvuldig te lezen, aangezien wij graag willen dat u onze producten snel en volledig gebruikt. Lees deze handleiding eerst door alvorens het product te gebruiken. Volg de instructies op anders zou de garantie wel eens kunnen vervallen.
- Page 4 DEUTSCH Vielen Dank für den Kauf dieses Beamz Professional gerat. Nehmen Sie sich einen Augenblick Zeit, um diese Anleitung sorgfältig durchzulesen, damit sie die Möglichkeiten, die unser Produkt bietet, sofort voll ausnutzen können. Lesen Sie erst die Anleitung vollständig vor der ersten Inbetriebnahme durch. Befolgen Sie die Anweisung, da sonst jeglicher Garantieanspruch verfällt.
- Page 5 ESPAÑOL Enhorabuena por la compra de este efecto de luces Beamz Professional. Por favor lea atentamente este manual antes de usar el aparato para disfrutar al completo de sus prestaciones. Seguir las instrucciones le permite no invalidar la garantía. Tome todas las precauciones para evitar que se produzca fuego o una descarga eléctrica.
- Page 6 Features Voltage: AC100-240V 50/60Hz Power: 50W Light source: 5pcs 10W RGB 3in1 LEDs 1, 3, 5, 7, 15, 18DMX channels selectable Each LED can be controlled individually Sound controlled via built-in microphone Adjustable sound sensitivity Function: Color mix, automatic color change, built-in program and strobe effect with adjustable speed, dimmer, master/slave LED display, easy to control Full DMX512 control...
- Page 7 2,DMX operation 1CH mode: Show 000-007 Blackout 008-022 Show 1 023-037 Show 2 038-052 Show 3 053-067 Show 4 068-082 Show 5 083-097 Show 6 098-112 Show 7 113-127 Show 8 128-142 Show 9 143-157 Show 10 158-172 Show 11 173-187 Show 12 188-202 Show 13 203-217 Show 14...
- Page 8 18CH Mode: CH1,CH4,CH7, 000-255 Red 1/2/3/4/5 CH10,CH13 CH2,CH5,CH8, 000-255 Green 1/2/3/4/5 CH11,CH14 CH3,CH6,CH9, 000-255 Blue 1/2/3/4/5 CH12,CH15 CH16 000-255 Color CH17 000-255 Dimmer CH18 000-255 Strobe Fan timing function:temperature: 40°~ 60°, fans start to work, from slow to fast, the temperature higher, the fans speed will be faster.
-
Page 9: Ce Declaration Of Conformity
Tel : 0031546589299 Fax : 0031546589298 The Netherlands Product number: 150.5682 Product Description: MadMax 5x10W COB LED Matrix Regulatory Requirement: EN 60598-1/-2-17 EN 55015 EN 61547 EN 61000-3-2/-3-3 The product meets the requirements stated in the above mentioned Standards. 13-12-2012... - Page 10 Specifications and design are subject to change without prior notice.. www.tronios.com Copyright © 2013 by TRONIOS the Netherlands...
