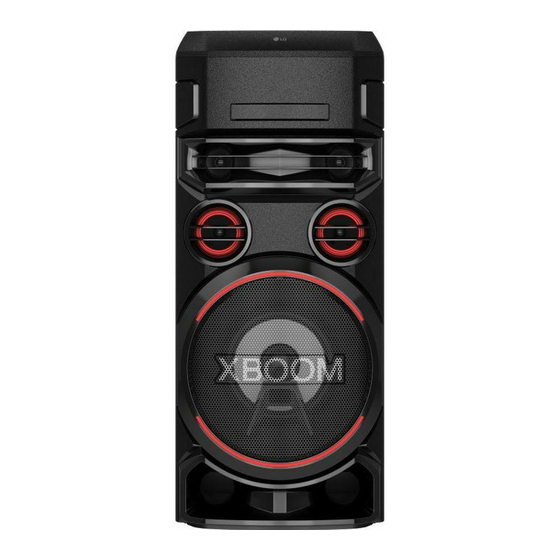

LG ON7 Simple Manual

Additional Information
Specifications
Refer to the main label on
Power Requirements
the unit.
Refer to the main label on
Power Consumption
the unit.
Approx. 330.0 mm x
Dimensions (W x H x D)
785.0 mm x 344.0 mm
Bus Power Supply (USB) 5 V 0 500 mA
Design and specifications are subject to change without
notice.
Caution
y Connect the power cord to wall outlet directly if
possible. Or when you use an extension cable, it is
highly recommended to use an extension cable of 110
V / 15 A or 230 V / 15 A, otherwise the unit may not
operate properly because of the lack of power supply.
y Do not overload the extension cord with excessive
electrical load.
Note
y Do not look directly at the light emitting part when the
LIGHTING is turned on.
y If the illumination brightness is glaring, switch on the
room lights or turn off the LIGHTING of the unit.
ON7-F.DLKALLK_SIM_ENG_MFL71690605.indd 2
Replacement of battery
POWER: This unit operates on a mains supply of 200 -
240 V ~ 50 / 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved
main plug. When replacing the fuse, always use a fuse
of the same rating and approved to BS 1362. Never
use this plug with the fuse cover omitted. To obtain
a replacement fuse cover contact your dealer. If the
type of plug supplied is not suitable for the mains
sockets in your home, then the plug should be removed
and a suitable type fitted. Please refer to the wiring
instructions below:
Warning: A mains plug removed from the mains lead of
this unit must be destroyed. A mains plug with bared
wires is hazardous if inserted in a mains socket. Do not
connect either wire to the earth pin, marked with the
letter E or with the earth symbol 6 or coloured green
or green and yellow. If any other plug is fitted, use same
rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE: As the colours of the
wires in the mains lead of this unit may not correspond
with the coloured marking identifying the terminals in
your plug, proceed as follows: The wire which is coloured
blue must be connected to the terminal which is marked
with the letter N or coloured black. The wire which is
coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
SIMPLE MANUAL
Mini Hi-Fi
Audio
Please read this manual carefully before operating your set and retain it for
future reference.
To view the instructions of advanced features, visit http://www.lg.com and
then download Owner's Manual. Some of the content in this manual may
differ from your unit.
MODEL
ON7
MFL71690605
2004_Rev02
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
2020-08-10 9:43:19
