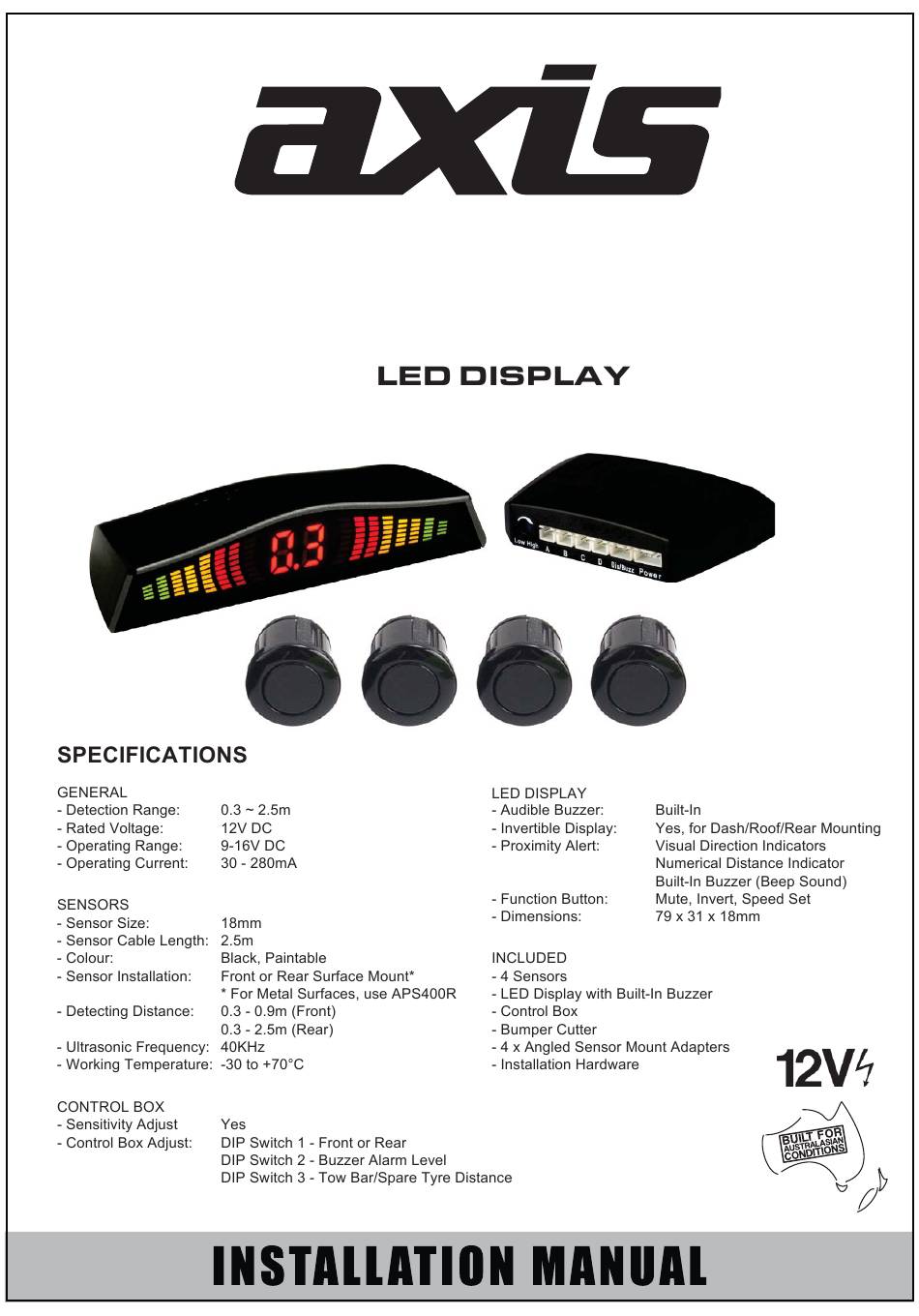

- Page 1 MOBILE SAFETY APS400 4 SENSOR PARKING SYSTEM with YEAR WARRANTY...
-
Page 2: General Installation Diagram
GENERAL INSTALLATION DIAGRAM Control box Display Reversing light Speed signal (WHITE) Front installation only Foot brake (YELLOW) Front installation only Ground (BLACK) Power (RED) Reversing light circuit Control box Display Sensitivity adjustment NOTE: Two wiring options for front installation. See page 3 for instructions on setting speed trigger Foot brake/Brake light positive signal - See page 3 for operating front sensors from foot brake... -
Page 3: Led Display
* NOTE FOR FRONT INSTALLATION A: If the signal speed is set, when the real speed becomes lower than the set speed, the system will activate. If the real speed is higher than set speed, the system will not power on. B: If the signal speed is not set when the foot brake is pressed, the system will only work for 15 seconds. -
Page 4: Dip Switch
DIP SWITCH Function Control box Select front or back system Dip switch1 front system 0.3-1.0m 1 2 3 Dip Switch 0.3-2.5m back system DOWN Function: Buzzer Initial Alarm Control Dip switch 2 (for front system Yellow LED light start to alarm at 0.5m only) start to alarm at ight... - Page 5 SENSOR INSTALLATION DIAGRAM Fix the position of sensors. No obstacle should be detected at 90° from the top view otherwise the system will false alarm. Installation distance d gram 0.6-0.8m 0.3-0.4m Best position for sensors Best position for sensors Installation diagram for sensors with direction markings Installation diagram Installation when vertical to the ground.
- Page 6 Smooth slope Smooth round objects Objects absorbing wave, e.g.cotton Objects hard to be detected ADVISED POSITION TO INSTALL THE SENSOR A.Four drill holes A.B.C.D should be in line. B. 0.5-0.8m vertical to the ground. 0.55m is recommended. C. Vertical, tidy surface without metal components is preferred.
- Page 7 SELECT DRILLING POSITION FOR SENSOR A & D A. Choose suitable drilling positions for A and D sensor and mark For best detection angle, position A & D sensor 8 - 13cm from the edge. Preferred distance is 11cm SELECT DRILLING POSITION FOR SENSOR B & C A.
-
Page 8: Sensor Installation
DRILLING A. Use a small drill bit to locate position B. Drill with the bumper cutter supplied SENSOR INSTALLATION A. Insert the sensors into the holes and secure B. Arrange wiring neatly and securely OTHERS Mount the display on the dashboard, above the mirror, or at rear of cabin in view of mirror... -
Page 9: Control Box Installation
CONTROL BOX INSTALLATION Install control box inside the boot. Keep away from heat, moisture and vibration. NOTE: Control box is not waterproof. 2.5m... -
Page 10: Main Features
PARKING SENSOR SYSTEM This system consists of ultrasonic sensors, a control unit and display. This system detects the distance between the vehicle and obstructions by ultrasonic sensors installed at the rear or front of the vehicle. The distance and direction of the obstruction will be displayed on the LED with three step signals. -
Page 11: Installation Steps
INSTALLATION STEPS 1. Carefully choose position for sensors 2. Select drilling position for sensor A & D 3. Select drilling position for sensor B & C 4. Locate the position and drill 5. Install the sensors and hide the wires 6. -
Page 12: Consumer Warranty
Please complete details below in the event of warranty service being required. Purchaser’s Name: Purchaser’s Address: CC 71M Serial Number: APS400 Model Number: Date of Purchase: Dealer Name: Dealer Address: Invoice/Sales Docket no:...
