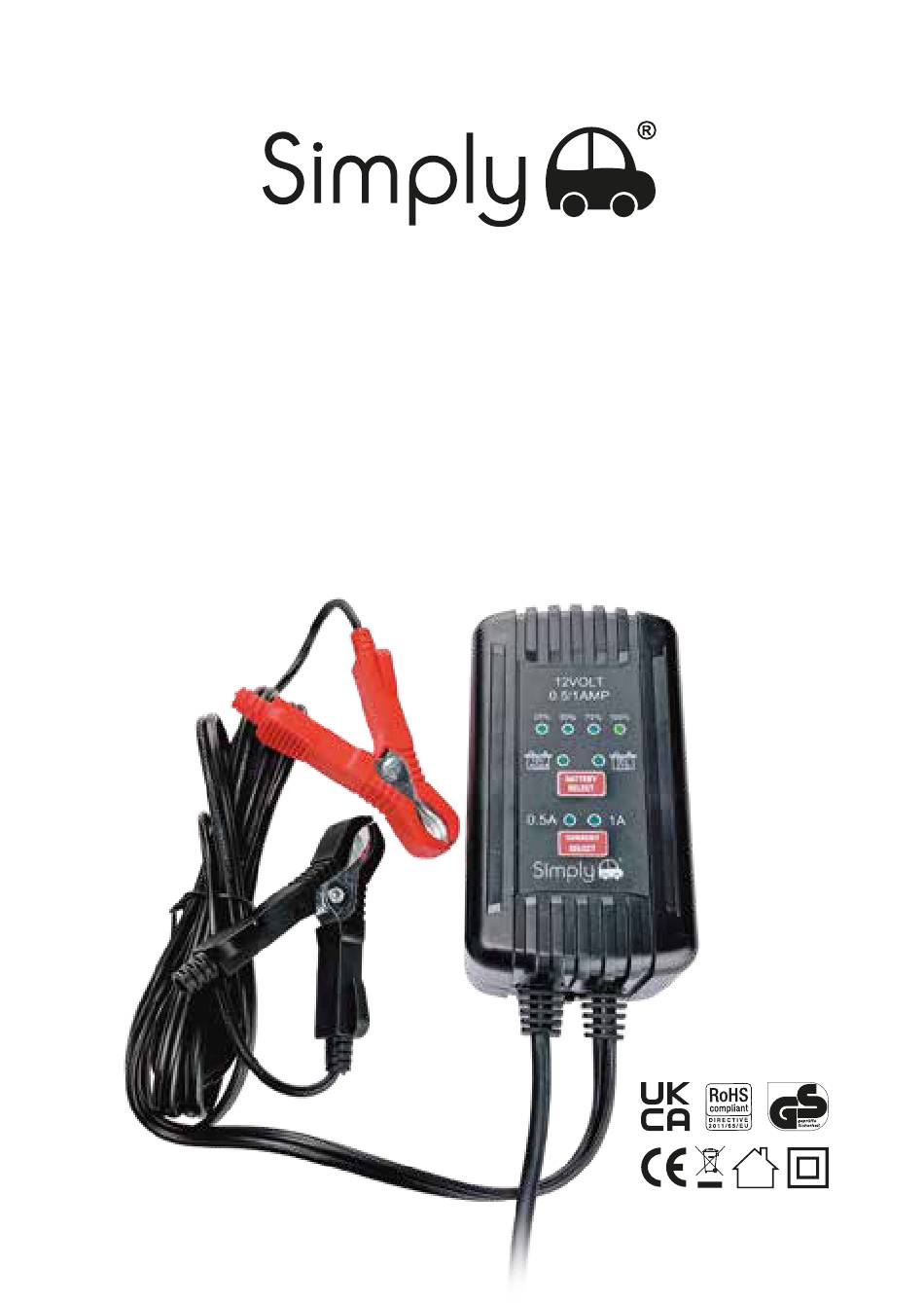

- Page 1 0.5A/1A 12V AUTOMATIC BATTERY CHARGER INSTRUCTION MANUAL BTC-4004 Please read before use Save this manual for future reference...
- Page 2 There are certain applications for which tools and equipment are designed. Simply Auto strongly recommends that this products NOT be modified and/or used for any application other than for which it was designed. Read and understand all warning and operating instructions before using any tool or equipment.
- Page 3 • Do not set the charger on flammable materials, such as carpeting, upholstery, paper, cardboard, etc. • Never smoke or allow sparks or flames in the vicinity of the battery or engine. WARNING: RISK OF EXPLOSIVE GAS. • Operate the charger as far away from the battery as DC charger cables permit. •...
- Page 4 Preparing to Charge 1. Determine voltage of battery to be maintained by referring to the vehicle manual. 2. If it is necessary to remove battery from vehicle to charge, or to clean terminal, always remove grounded terminal from battery first. Make sure all accessories in the vehicle are off, so as not to cause an arc.
- Page 5 4. Determine which post of battery is grounded (connected) to the chassis. If NEGATIVE post is grounded to chassis (as in most vehicles), see 5. If POSITIVE post is grounded to the chassis, see 6. 5. For negative-grounded vehicle, connect POSITIVE (RED) clamp from battery charger to POSITIVE (POS, P, +) engine block away from battery.

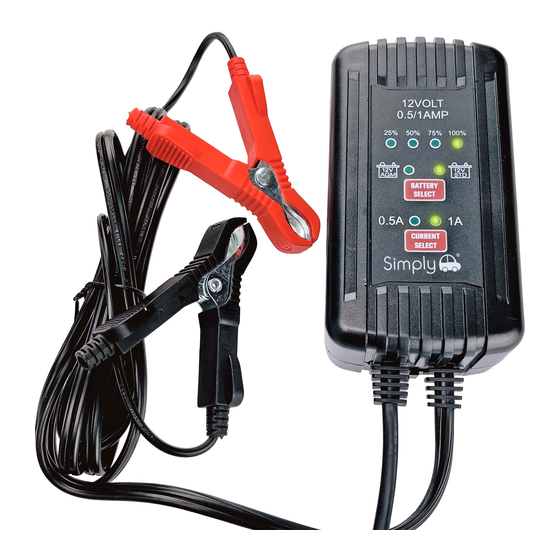

- Page 6 ● Built-in circuit protection guards against overcharging or short circuit. ● Automatically check the polarity(requires a minimum of 2.5 volts battery voltage). ● Convenient, color-coded clamps for easy, correct installation. ● Charges with high frequency, pure DC current. Battery Charger and Components AC wall charger Charging indicator...
- Page 7 IMPORTANT: ALWAYS disconnect the AC power cord from AC power outlet before connecting (or disconnecting) the charger to (or from) the battery. Connecting the Charger and Charging the Battery with Battery Clamps The charger’s output leads have color-coded battery clamps (RED-POSITIVE and BLACK-NEGATIVE).
- Page 8 1 hour until the battery voltage recover at proper range SPECIFICATIONS PARAMETERS Input power supply: AC 230V 50/60Hz Maximum input power: 20W Output voltage: DC 12 V Output current: 0.5/1A Part of Simply Brands Adaptable charging battery: 6-100AH simply-brands.com...
