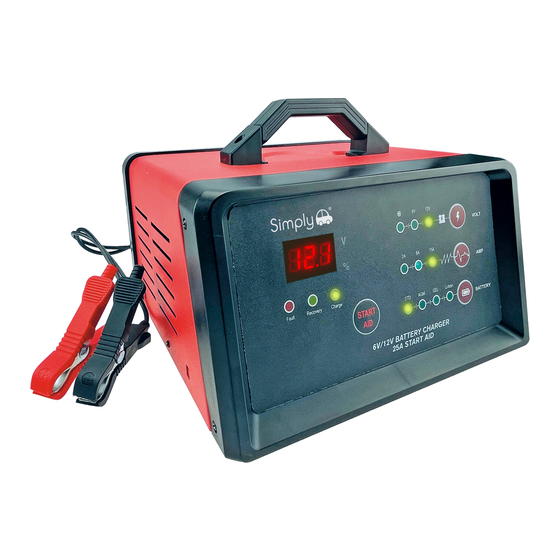

- Page 1 2A/8A/15A 6V/12V AUTOMATIC BATTERY CHARGER WITH 25A START AID INSTRUCTION MANUAL BTC-6015 Please read before use Save this manual for future reference...
-
Page 2: Safety Guidelines - Definitions
There are certain applications for which tools and equipment are designed. Simply Auto strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed. Read and understand all warning and operating instructions before using any tool or equipment. - Page 3 WARNING: Do not use battery charger with dry cell batteries that are commonly used with home appliances. These batteries may burst and cause injury or damage to property. • Use only attachments recommended or sold by the battery charger's manufacturer. Use of non-recommended attachments may result in a fire, electric shock, or injury.
- Page 4 ASSEMBLY INSTRUCTIONS Remove all cord wraps and uncoil the cables prior to using the battery charger. This battery charger is for use on a nominal 230 volt circuit . Preparing to Charge 1. Determine voltage of battery to be maintained by referring to the vehicle manual. 2.
- Page 5 Follow these steps when the battery is installed in a vehicle: 1. Position AC and clamp cords away from hood, door, or moving engine parts. 2. Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
- Page 6 • 7-Step Charging Program: Desulphation, Soft Start, Bulk Charge, Absorption, Battery Test, Recondition and Floating. This allows for optimization of battery power, without overcharging or damaging. • Multifunction:the charger will provide 25A current output for 60s at most to re-start your car. •...
- Page 7 XX.X V Battery voltage in volt. XX % Battery capacity level REVERSE POLARITY When clamps connected with battery reversely, LED display will show the code, FAULT indicator light in red. SHORT-CIRCUIT When clamps connecting short-circuit, LED display will show the code, FAULT indicator light in red.
-
Page 8: Charging Instruction
8.Start Aid If battery requires current to start batterythis modelcan provide 25Aoutput for jumping start,for 60s at most.The button indicator will light in red.And LED screen displays JUMP STARTING code.Please wait for 30s after each 'START AID' CHARGING INSTRUCTION IMPORTANT: ALWAYS disconnect the AC power cord from AC power outlet before connecting (or disconnecting) the charger to (or from) the battery. - Page 9 Reason Possible solutions Power On/Off Problem • Check that the charger is properly connected to a live AC Outlet. • Check that the correct battery selection setting has been selected for the battery being charged. Power Off Unit not charging, Screen indicates •...
-
Page 10: Maintenance And Care
BATTERY CONNECTION If the charger does not connected properly, charging will not start, Make sure the charger is connected to the battery and the connection points are clean and making a good connection or make sure no reverse connections at the battery. CHARGING COMPLETION Charge completion is indicated by the charging status indicator turning on (LED indicator shows fully charged state) . -
Page 11: Specifications Parameters
9. Never charging on the condition that contains flammable and explosive gases. 10. Do not come close to the battery during charging. 11. The battery should be placed in ventilated well area. 12. The product should not be operated by children, those who have psychiatric disorders and lack of experience, except that is supervised and instructed by supervisor.
