thank you for purchasing a Sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
Wear eye
instructions
protection
1. Safety
warNiNG! Wear approved eye protection. Wear appropriate Personal Protective equipment. A full range of Personal Protective
equipment is available from your sealey dealer.
warNiNG! ensure that Health & safety, local Authority regulations and general workshop practice regulations are adhered to when
using tools.
Do Not use tools if damaged.
8
maintain tools to ensure that they are in an adequate condition for safe use and optimum performance.
9
ensure that a vehicle that has been raised by a jack is adequately supported. use axle stands.
9
Wear suitable clothing to avoid snagging. Do Not wear jewellery. tie back long hair.
9
Account for all tools, parts and components being used. Do Not leave these in or near the engine. return tools to suitable storage
9
after use.
these instructions are provided as a guide only. Always refer to the vehicle manufactures' service instructions or a proprietary
manual to establish the correct procedure and data.
warNiNG! the warnings, cautions and instructions in this manual cannot cover all possible conditions and situations. the operator /
user must apply caution and common sense (good practical sense).
warNiNG! incorrect or out of phase camshaft timing can result in contact between the valve head and the piston crown. this will cause
damage to the engine.
2. iNtroDuctioN

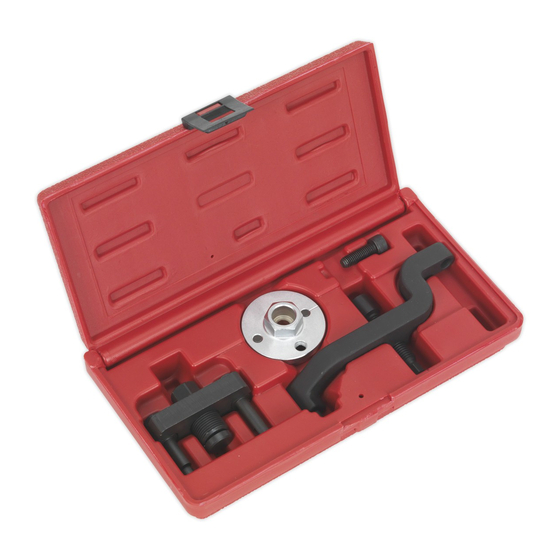

suitable for removing the water pump on Pumpe duse, diesel, gear drive engines. essential to align the engine in the tdc position. supplied
in a storage case.
3. coNteNtS
item:
part No:
1
Vse6000.01
2
Vse6000.02
3
Vse6000.03
4
Vse6000.04
© Jack sealey limited
instructions for
water pump removal kit vw
model no:
Wear protective
Wear safety
gloves
footwear
Description:
oem No:
camshaft tdc tool
t10225
Gear puller
t10221A
Water Pump Puller
t10221A
socket cap screw
_
Original Language Version
vSe6000
Wear protective
clothing
Vse6000.V2 | issue 1 27/01/17
