Summary of Contents for Permobil VoltPro

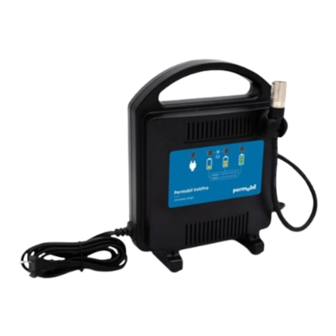

- Page 1 User manual American English for Australia Permobil VoltPro...
- Page 3 Dear Permobil User We congratulate you on your choice of off-board battery charger. Our goal is for you to continue to feel satisfied with your choice of both vendor and product. Before you begin using your new off-board battery charger, it is important that you read and understand the contents of these operating instructions, and in particular the safety instructions.
- Page 4 Text Produced and published by Permobil Edition: 4 Date: 2021-03-01 Order no: 336654 eng-AUS...
- Page 6 +1 800 231 3256 E-mail: orders.au@permobil.com E-mail: support@permobil.com Web: www.permobil.com Web: www.permobil.com Head office of the Permobil group Permobil AB Per Uddéns väg 20 861 36 Timrå Sweden Tel.: +46 (0)60 59 59 00 Fax: +46 (0)60 57 52 50 E-mail: info@permobil.com...
-
Page 7: Table Of Contents
Contents Permobil VoltPro Introduction ..............................9 Warranty ............................10 Standards and regulations ........................10 Technical support..........................10 Reporting incidents ..........................11 Scrapping and recycling ........................11 Scope of delivery ..........................12 Safety................................13 Types of warning signs ........................13 Warnings and precautions ........................14 Labels and symbols ..........................19 Operation..............................23 Charging instructions ..........................23... -
Page 9: Introduction
This user manual covers the functions of your off-board battery charger, model numbers 616273 & 616350. This product is intended for use with Permobil’s power wheelchairs. It is not intended for use by children without supervision, including cleaning and maintenance of the product. It is not a toy for children to play with. -
Page 10: Warranty
• Electrically powered wheelchairs, scooters and their chargers – Requirements and test methods (EN 12184). • Relevant subsections of IEC 60335. • Relevant subsections of the wheelchair standard series ISO-7176. Technical support In the event of technical problems, contact Permobil. -
Page 11: Reporting Incidents
Permobil VoltPro Introduction Reporting incidents If an incident occurs, please contact Permobil by phone or e-mail. Scrapping and recycling Contact Permobil for information about scrapping agreements in force. -
Page 12: Scope Of Delivery
Permobil VoltPro Introduction Scope of delivery Included in this delivery is off-board battery charger , charging connector holder and screw to attach the charging connector holder. The plug shown on power cable is an example. The actual plug will correspond to the requirements of your market. -
Page 13: Safety
Permobil VoltPro Safety 2 Safety Important safety instructions. Save these instructions. Types of warning signs The following types of warning signs are used in this manual: WARNING! Indicates a hazardous situation which, if not avoided, could result in serious injury or death as well as damage to the product or other property. -
Page 14: Warnings And Precautions
Permobil VoltPro Safety IMPORTANT Indicates important information. Warnings and precautions WARNING! Explosive gases The battery can emit explosive gases while charging. Do not expose to flames and sparks. Provide adequate ventilation during charging. Disconnect the charger from the power outlet before connecting or... - Page 15 Permobil VoltPro Safety WARNING! Acid leakage Make sure that the battery charger setting matches the type of batteries that are installed in your power wheelchair. If the wrong charger setting is used, the batteries can be exposed to overcharging which increases the risk of overheating.
- Page 16 Permobil VoltPro Safety WARNING! Incompatible with non-rechargeable batteries Only charge lead acid rechargeable batteries with your battery charger. If you charge non-rechargeable batteries with your battery charger, the batteries can explode and cause bodily harm. WARNING! Overheated battery charger Do not cover the charger. If you do, the charger can become overheated which can damage the charger and/or melt the plastic housing.
- Page 17 Service and other work on the battery charger should be carried out by qualified service technicians. In case of doubt, always contact a qualified service technician or Permobil. Faulty service can cause the function and safety of the product to deteriorate.
- Page 18 Permobil VoltPro Safety IMPORTANT Incorrect voltage supply Only connect the battery charger to a power outlet with the recommended voltage. If the charger is connected to the incorrect voltage supply, e.g. when travelling between countries, the wheelchair cannot be charged.
-
Page 19: Labels And Symbols
Permobil VoltPro Safety Labels and symbols Information shown on the warning label: Item number: The internal Permobil item number including revision number. S/N: The product’s serial number. Input: The operating voltage that the battery charger needs to function. Figure 2. An example of the warning label. - Page 20 Permobil VoltPro Safety Caution CE certification symbol Environmental protection rating IP44 specifically means that this product is protected from tools and small wires > 1 mm and that it is protected from water spray from any direction, i.e. splash-proof. Class II electrical equipment...
- Page 21 Permobil VoltPro Safety RCM, Australian regulatory compliance mark For indoor use only The assignment of the charging connector pins must be as shown: 1. Positive 2. Negative 3. Inhibit (tied to negative) Figure 3. The charging connector pins.
- Page 22 Permobil VoltPro Safety...
-
Page 23: Operation
Operation Permobil VoltPro 3 Operation A discharged battery should become fully charged in approximately 12 hours. Results can vary depending on the size of your battery and how much charge is left in your battery when you start charging. Occasional use of the wheelchair prior to full charge is acceptable if the need is urgent. -
Page 24: Led Lights
The number of times the LEDs flash indicate the charger setting. If the LEDs flash once, the charger is set for Permobil AGM GEL batteries. If the LEDs flash three times, the charger is set for MK GEL batteries. -
Page 25: Charging Tips
Operation Permobil VoltPro Charging tips Here are some recommendations that will help you reduce charging time, extend the life of your batteries, and maximize your wheelchair’s performance: • Always charge the batteries at room temperature in a well- ventilated area. - Page 26 Operation Permobil VoltPro If the wheelchair will be stored for more than two weeks: • Before placing the power wheelchair in storage, charge the batteries fully and then turn off the wheelchair’s circuit breaker. See the wheelchair’s user manual for further information.
-
Page 27: Troubleshooting
Main power failure. Check the mains in your house. The battery charger has an internal error. Contact Permobil for repair. The battery charger does not detect the Check that the charging connector is Only LED illuminates while the wheelchair’s batteries. - Page 28 Permobil VoltPro Troubleshooting...
-
Page 29: Technical Specifications
Permobil VoltPro Technical specifications 5 Technical specifications Electrical specifications Electrical specifications Output current 10 A ± 8% Output voltage 24 V DC nominal (2x12 V batteries) 220—240 V AC, 50—60 Hz Mains input nominal voltage range 198—264 V AC, 47—63 Hz... -
Page 30: Material, Dimensions, Weight
Permobil VoltPro Technical specifications Material, dimensions, weight Material, dimensions, weight PC / ABS Housing material Housing width 206 mm (8.11") 251 mm (9.88") Housing height 109 mm (4.29") Housing depth Power cable length 1800 mm (70.87") Charging cable (XLR) length 2000 mm (78.74") -
Page 31: Storage And Shipping Conditions
Permobil VoltPro Technical specifications Storage and shipping conditions Storage and shipping conditions Ambient temperature -40° C to +65° C (-40° F to +149° F) Relative humidity 0% to 93%, non-condensing Atmospheric pressure 795 to 1060 hPa... - Page 32 7 330818 365439...
