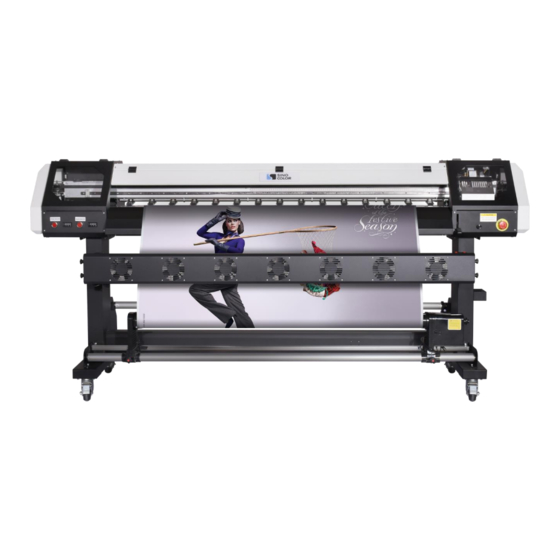

Thanks for your support to Sinocolor Printer.
- Be sure to read carefully to ensure proper and safe use and to fully understand the performance of this product.
This manual is completely stored in a safe place.
- Unauthorized reproduction or transfer of all or part of this manual is prohibited.
- The contents of this manual and the specifications of this product are subject to change without notice.
- This manual and product have been prepared and tested as much as possible. If you find any typographical
errors, please inform us.
-Sinocolor Group. assumes no responsibility for any direct or indirect loss or damage which may occur with
respect to any article made using this product.
第 1 页 /共 38 页
Advertisement
Related Manuals for SINOCOLOR ES-640C
Summary of Contents for SINOCOLOR ES-640C
- Page 1 - This manual and product have been prepared and tested as much as possible. If you find any typographical errors, please inform us. -Sinocolor Group. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to any article made using this product.
- Page 2 目录 Directory 一. USB驱动的安装 USB Driver Installation 二， 墨囊及喷头安装 Damper and Printhead Installation 2.1, 喷头安装墨囊的颜色顺序 Sequence of damper installation 2.2, 软件套色表墨序 Software color offset table ink sequence 2.3，喷头安装 Printhead Installation 三、软件介绍 Software Intrduction 3.1, 软件调试步骤Software Calibration 3.1-1, 校准齿轮比Gear ratio calibration 3.1-2 清洗设置...
- Page 3 The USB disk need to be properly kept. (The document for different model of printer will be different. So please don’t mix them) SinoColor USB Disk Documents Inside the USB Disk 3. 打开计算机的系统属性，选择“设备管理器”： Keep the printer powered on. Check the computer system property (No matter you are using Win7 or Win 10. Only...
- Page 4 双击“WLY”此驱动,显示详细信息点击“Update Drive”： You will find the driver ‘’WLY’’ Double click ‘’WLY’’, will appear its detail information. Left click ‘’Update Driver’’...
- Page 5 选择从电脑浏览 Choose “Browse my computer for drive software”: 点击“浏览”，选择我司控制软件里面的“Drive3.0 WIN10”点击“OK”,然后再次点击“下一步”(根据电脑系统 的版本进行选择): Click ‘’Browse’’, And choose the document in our console software’’ Driver3.0’’- ‘’WIN10’’(Choose according to your computer system) Then click ‘’OK’’- ‘’Next’’...
- Page 6 完成驱动安装： Driver installation finished.
- Page 7 二， 墨囊及喷头安装 Damper and Printhead Installation Sequence of damper installation 2.1, 喷头安装墨囊的颜色顺序 左头 2.2, 软件套色表墨序 Software color offset table ink sequence Click ‘’Maintenance’’ – ‘’Basic_Set’’, set the ‘’Color Offset’’. (Double-click each cell and make the color to be exactly same as below photo) 第...
- Page 8 2.3，喷头安装 Printhead Installation 注意：安装时要注意线的针脚和插口的针脚要接触良好。左喷头线要插在小车板的左插口上，右喷头线要插在小车板 的右插口上，如下图。 Note: Must make sure the pins of the cable connect good with the pins inside the white socket. Left printhead cables insert into the left connector. Right printhead cables insert into the right connecto r. 第...
- Page 9 第 9 页 /共 42 页...
- Page 10 三、软件介绍 Software Intrduction 软件主界面 The main interface of the software 板卡初始化动作之后，通过 USB 数据线连接板卡跟电脑，插上加密狗，打开软件之后左下角打印机状态 会显示高，如下图所示 After the board is initialized, connect the board to the computer via the USB cable and insert the dongle onto your PC. After opening the software, the printer will show ‘’High’’ in the left bottom. Like below photo.
- Page 11 3.1, 软件调试步骤Software Calibration 3.1-1, 校准齿轮比Gear ratio calibration X 尺轮比 X-Gear ratio Calibration 点击 设置里面的Basic，运动设置， 会看到如图所示界面，首先在移动后面填入一个较小值（300），点击移动， 此时，小车移动停止后再点击复位,最后点击运用;再次重复设置一次并保存。 Click - ''Basic Setting''- ''Sports Setting''. Will see interface like above. First fill in a small value (300) behind the ‘’Move’’, click ‘’Move’’, then click the ‘’ Reposition’’ after the 第...
- Page 12 printhead carriage stop moving (You will see the data behind ‘’Gear Ratio changes), click ‘’Apply’’; repeat these steps again (The Gear Ratio Data will change again. After these two steps, the X-Gear Ratio will be done). Y 尺轮比 X-Gear ratio Calibration 首先在材料上做好标记，...
- Page 13 3.1-2 清洗设置 Cleaning Option Introduction Note: Below information only used to tell you how machine will do the cleaning. Setting already done before delivery in factory. So no need to change any data inside. If need change, please contact the after-sale people. 清洗步骤...
- Page 14 8、平台上升到刮墨高度（平台刮墨的脉冲）The platform rises to the scraping height ( move up to scraping pulses) 时脉冲）The wiper is remove to the head position, ready to 9、刮片移除至喷头位，准备刮墨（出刮片 1 scrape the ink (scraping head 1 move out pulses) 位脉冲）The carriage moves to scrape the ink (Move to scarping head 1 10、小车移动刮墨（小车去刮墨...
- Page 15 打印的喷头垂直状态图如下图所示时： You will get two CMYK printing test like below picture. The left CMYK printing test is for left printhead. The right CMYK printing test is for the right printhead. 正确的垂直状态应该是上下两部分完全对齐，成一条直线。所以需要对喷头进行调整，上图所示情况应该是 对喷头“左前推”、“右后拉”进行调整。 Correct vertical test should be : Top part and bottom part are perfectly aligned. First see the vertical printing test of left printhead.
- Page 16 (Don’t remove. Just loose) Step 1: Loose the 1,2,3,4 screws Step 2: turn the screw A counterclockwise a little（Then means left side of printhead will move forward） Step 3: turn the screw B counterclockwise a little (This means pull the right side of this printhead back) Step 4: Fasten the 1, 2, 3, 4 screws.
- Page 17 and "pushed forward on the right". Steps: (Don’t remove. Just loose) Step 1: Loose the 4 screws Step 2: turn the screw A clockwise （Then means pull the left side of printhead back） Step 3: turn the screw B anticlockwise (This means move the right side of printhead forward) Step 4: Fasten the 1, 2, 3, 4 screws.
- Page 18 Then first choose: - Basic Setting- Cleaning Setting-Function Setting Click the “Load-Ink” button, will start to pump ink. And in the mean time, the ‘’Load-Ink’’ button will become ‘’Stop’’. So you can stop pumping as you need. After finished pumping, click ‘’clean’’ Then print nozzle test again to check the nozzle test status.
- Page 19 choose “Base Step ” behind ‘’Step’’, then click” print”, as below picture show: 如上图所示，在 -6 的位置重叠，证明基础步进有- 6 的误差，此时需要将Revise栏中的数字加上– 6（以图中为 例，此时应将3改为-3） ，点击界面下方Apply保存应用 As above picture show: The two lines overlapped on -6 position, It proves that the basic step has an error of -6, so need to add -6 to the figure in”...
- Page 20 3.1-6 双向较准 Bi-Dir Calibration 点击软件设置-基本设置-校准， 可以看到双向设置，如下图所示： —“Basic settings”-‘’Calibration Operation’’ ,will see ‘’Bi-direction Calibration’’ as below picture show: Click 首先需要选择对应的精度。 默认都是 360 精度。选择好相应的速度。低、中、高速的双向值都需要调整， 点击Print打印校准图。 下图在-6的位置上下是对齐的，说明中速下，双向偏差-6，需要在后面调整框中加上-6，点击界面下方 Apply保存应用。 再次点击打印校准图： 当在0位置对齐时，双向校准完成。 First, selecting the corresponding resolution, the default is 360 resolution. Select the corresponding speed. ‘’slow, normal, fast’’...
- Page 21 双向校准精度选择说明： 720X1440 4PASS 对应的双向校准为 360 精度，选择打 8 PASS 时，对应的为 180 精度； 720X2160 6PASS 360 精度双向，12PASS ，180 双向； 720X2880 8PASS 360 精度， 16PASS 180 精度 Information of bidirectional calibration resolution selection: When you choose the printing resolution for one file, If you choose to print 720x1440, 4 pass, then it corresponds to bi-direction calibration of 360 resolution here. If you choose to print 720x1440, 8 pass, then it corresponds to 180 resolution here.
- Page 22 四、打印 Print 4.1 载入打印文件 Upload the printing file 载入打印文件有两种选择，第一种，点击主菜单栏的打开文件界面，根据路径找到 RIP 好的 PRN 文件， 选中之后双击或者点击下方打开。 There are two options for loading the file. The first one is to click ‘’Open’’ in the main interface and find PRN file(after RIP well). Double click on it or click to open. 第...
- Page 23 第二种， RIP 软件直接打印。 打开如下图示“MainTop Print Manager”设置端口“127.0.0.1”直接打印 Second, Print directly from the Rip Software. Open the "MainTop Print Manager" (If your printer is using Maintop Rip Software), setting port "127.0.0.1" as shown below to print directly 第 23 页 /共 42 页...
- Page 24 第 24 页 /共 42 页...
- Page 25 当双击要要打印任务时，会弹出任务属性框，如下图所示 When you double-click the task you want to print, will pop up task properties window like below: 重复打印，当勾选重复打印之后，每次打印完成，车头都会复位，然后再同一白边起始位置开始打印同 一个任务。 多幅设置，可以设置横向幅数和纵向幅数，中间可以设置间隔，间隔的单位是 mm 毫米 区域打印，可以手动选取文件的一部分进行打印，当区域打印时，重复打印，和多幅设置无效 量统计： 表示当前 PRN 文件所需的墨量 Repeat Print: When the ‘’Repeat print ‘’ is chosen, each time when printing completed, th e carriage will back to base point, and then start to print at the same starting point.
- Page 26 第 26 页 /共 42 页...
- Page 27 点击任务属性下面墨量控制，会出现如下图所示界面. 勾上墨量控制，可以对当前 PRN 文件 各墨量进行调节 注：当墨量截取之后，输出的图像精度会降低，点会变粗，一般不建议在此处调节墨量 When click ‘’Ink Limited’’ under the task properties, the interface shown as below. If Tick Ink Limited, then can adjust the amount of ink in the current PRN file. But please kindly note: If reduce the ink amount, the accuracy of the output image will decrease, and the dots will become bigger.
- Page 28 4. 2 开始打印 Start Print 打印: 在软件主界面上方可以对打印进行设置。 Can do the printing setting on the software main interface. 白边设置： 设置 PRN 文件 X 方向起始打印位置。 彩条打印：勾选彩条，彩条详细设置在参数设置界面，可以设置彩条宽度， 彩条到打印图片的距离，彩条只在图片 左侧，右侧，或者在两侧都出 队列打印： 当同时导入多个 PRN 任务时，勾上队列打印，会连着打印完所有任务 车头速度：可以选择高、中、低速，具体速度在系统维护，运动设置界面可调 打印方向： 可以选择单向左，单向右，双向，选择双向打印时，要先调试好双向值 点击“print”即可打印任务。 White Border: Set the position to start printing in the X direction. Tick the color bar, then will print with color bar.
- Page 29 五， 软件功能介绍 Introduction of The Function of Software 5.1 标题菜单栏 Title Menu 打开文件： 导入 RIP 好的 PRN 文件进行打印 设置 ：里面是用来做校准的 停止： 停止打印 暂停：打印过程，暂停打印，小车复位，按钮此时变为 继续，点击继续，任务继续打印停止：停止当前打印任 务 打印：导入好 PRN 文件之后，选种文件，点击打印，开始打印当前任务 闪喷：打开或关闭喷头待机闪喷 喷头状态图： 打印喷嘴测试图。 清洗：当喷头状态不佳时，对喷头进行清洗打印校准图：打印喷头状态图，垂直状态图 车头回零：当车头不在原点时，可以让小车直接复位回到原点 左移：小车向左移动 右移：下车向右移动 进料：材料向前移动 退料：材料向后移动 Open and load task: Import PRN file for printing Set parameters: Do the calibration here.
- Page 30 彩条设置：设置彩条的宽度，离图片距离，位置，左侧、右侧、或者两侧 Color setting: set the width, distance to image, position, left side, right side, or both sides 边缘羽化：默认只需要勾上边缘羽化即可（请勿选择加强羽化），类型一般选择雾喷，幅度根据实际调整，幅度越 大，速度越慢，效果越好。 加强羽化在打印色块，或者喷头状态较差时开启使用，开启加强羽化，打印速度会降低， 但效果会提升很多，可以根据打印出来效果实际调试 Eclosion: Usually only need tick ‘’enable eclosion‘’. Please don’t choose ‘’Fog_B’’. That will generate problem. The ‘’type‘’ generally chooses Fog. ‘’Fog’’...
- Page 31 、系统维护界面 5.3 校准 Calibration Operation 垂直校准： 校准喷头的垂直位置。 第 31 页 /共 42 页...
- Page 32 Vertical calibration: Calibration the printhead vertical position 步进校准：打印前需要对“基础”和需要打印的步进进行校准 Step calibration: before printing, need Calibration of the “base step” and the steps that need to be pr inted 双向校准: 打印前需要对 180 精度，360 精度，低、中、高速分别打印校准图校准，在调试说明里对双向校准图 有详细的说明。 Bi-Dir calibration: Before printing, you need to do calibration for 180 ,360 resolution, low, normal and Fast speed. You can find detail introduction of bi-direction calibration in previous pages.
- Page 33 5.4 运动设置：Sports settings: 电机设置（小车方向）X Motor configuration(carriage moving direction)： 打印控制界面的车头速度在此处设置，低、中速可以根据实际情况自己设置. 高速有一定速度限制，不能超过喷头的喷打频率，建议出厂默认设置。 复位速度 和单向会车速度建议保存出厂设置。 移动、复位：校准 X 齿轮比。 The ‘’Print speed’’ in ‘’ print control’’ interface is set here. The low and normal speed can be set according to the actual situation. There is a certain limit at high speed, which can't exceed the printing frequency of the nozzle. The factory default setting is recommended.
- Page 34 注： 当前界面参数修改之后，都需要点击下方的应用按钮，否则修改参数无效 Note: After modifying the current interface parameters, you need to click Apply butto n below, otherwise the modification parameters are invalid 5.5 清洗设置：Cleaning Setting 装墨功能：点击“装墨”按钮，系统控制墨盏上升到抽墨位置，墨泵开始工作对喷头进行抽墨，按钮显 示变为“停止”，直至手动点击“停止”按钮，墨泵停止抽墨 Function- Load Ink: Click the “Load-Ink” button, will start to pump ink. And in the mean time, the ‘’Load-Ink’’...
- Page 35 六． 系统菜单 System menu 读取闪存参数和写入闪存参数功能暂未开放。 请勿点击 Read Flash Parameters and Write Flash Parameters still not available. Please don’t click. 更改语言： 可以修改软件语言 Change system language: Change choose the language you want to work with this software 加密狗管理，当使用分期加密狗时，到期需要写入密码才能继续使用 Dongle management, when using the staging dongle, you need to write a password to continue using it. 第...
- Page 36 七， 常见故障处理 Frequent Trouble-Shooting： 1、开机无动作 No action when booting （1）、数据线连接有问题，检查光纤线顺序是否对应。（主板显示A） （2）、检查电机信号线是否连接正确，线序是否正确，X,Y 电机信号线是否接反 （3）、检查电机驱动器是否正常 （4）、确认开机动作设置是否正确，重新导入参数或固件 （5）、检查板卡电源，观察 D71、D72、D74，D80 指示灯是否亮 (1) There is a problem with the cable connection. Check if the order of the fiber cables corresponds. (Main board display A) (2) Check if the motor signal line is connected correctly, whether the X, Y motor signal line are reversed. (3) Check if the motor driver is normal (4) Confirm that the boot action settings are correct, re-import parameters or firmware (5) Check the power of the board，whether the D71, D72, D74, D80 light are on.
- Page 37 （3）、提示 Y DPI 太小，软件配置文件不对应，状态图与软件设置不对，一般是单双头，喷头类型不对应等 （4）、软件提示数据交织错误，软件设置白墨通道数不对；二次解密软件版本不对。 (1), The print test has no action, the PRN file in the software is incorrect, contact the SinoColor technical support to solve (2), Software prompt 1 PASS data is abnormal, the software version and the board do not correspond (3), Prompt Y DPI is too small, the software configuration file does not correspond, the state diagram and software settings are wrong, generally single and double head, nozzle type does not correspond, etc.
- Page 38 （3）、小车打印速度超过喷头喷打频率，降低打印速度 （4）、更换板卡测试 (1) There is a problem with the USB interface or the data cable. Try replacing the data cable or replacing the computer interface. (2), 16pi long data cable has a problem, re-plug, or replace (3), The printing speed of the carriage exceeds the spraying frequency of the head, make the speed slower (4), Replace the board 第...
- Page 39 Shanghai Rucai high-quality and cost-effective printing equipment, Recruitment dealers around the country, excellent conditions, welcome to contact us Tel: 021-52063365 Mobile: 18939965809 Contact: Mr. Cai Address: No. 318, Majiazhai Road, Fengxian District, Shanghai 第 39 页 /共 42 页...
