Page 2
- This manual and product have been prepared and tested as much as possible. If you find any typographical errors, please inform us. - Sinocolor Group. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to any article made using this product.
Page 3
Important Notes on Handling and Use This machine is a precision device. To ensure the full performance of this machine, be sure to observe the following important points. Failure to observe them may not only result in loss of performance, but may also cause malfunction or breakdown. Machine 您可以从以下网站下载获取机器信息...
Page 4
OS and other software, the second partition is used to save pictures and work files. Suggest to use original ink from Sinocolor. Had tested carefully before supplying to customer. High quality. And most friendly for printhead. Other ink is not tested, may cause problem of printhead clogging, color difference, strong smell.
Page 5
一 机器部件说明 Description of printer structure 1.1 板卡说明 Board Instruction 主板 Main Board The Main Board is as shown in the above photo 如主板外观图所示 1:主板电源,需接 12V、24V、42V(顺序按照板卡显示连接),电流要求 5A 以上; Mainboard power supply, needs to connect 12V, 24V, 42V ( should be connected as indicated on the board), current is required to be 5A or more 2:吸墨泵、UV 灯接口,输出为...
Page 6
board with the 31P flat data cable, pay attention to the corresponding relationship (P2-P2, P3-P3, P4-P4). 喷头板 Printhead Board 如图上示: 1:通过 31P 扁平线与主板连接,(单头只需要接 P2、P3、P4); Connected mainboard through 31P flat data cable (single head only need to connect P2, P3, P4) 2:光栅解码器接口,注意板卡上标注显示(5V、BX、AX、GED);...
Page 7
注:请注意小转接板上面的“UP”,“DOWN”;连接到对应的喷头板还有喷头。 Note: Please note there is mark of “UP” and “DOWN” on the convert card. Connect to the corresponding printhead board and printhead. Please pay big attention on this printhead data cable connection. Wrong connection may burn the printhead easily.
Page 8

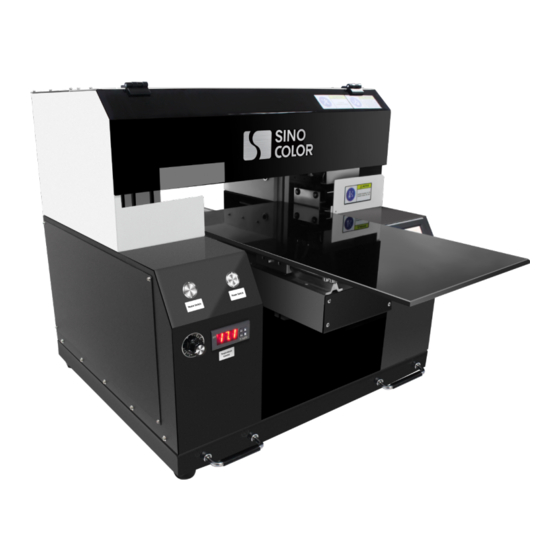

Machine Frame 安装完打印机后,我们现在需要进行对打印机的部分部件的了解。 After install the printer, we need to know the structure of the printer. Front 1: UV灯开关; UV lamp switch 2: 电源开关; Printer Power switch 3:UV灯功率调节旋钮(旋转至30-60); UV lamp strength adjust knob (rotate to 30-60); 4:UV水箱水温显示屏; Display to show the temperature of water in the UV Water box. 5:触控屏;...
Page 9
Rear 1:USB连接口;USB interface 2:Z上限位感应器;Z upper limit sensor 3:Y原点限位开关;Y base point limit sensor 4:墨盒;Ink bottle 5:总开关; The main power 6;电源连接口(注意电压值110V或者220V)Power interface (note: the voltage should be 110V or 220V)
Page 10
墨栈: Capping Station 刮片;Wiper 墨托;Capping unit 3:墨栈固定螺丝;Fixing screw of Capping station 4:墨栈电机;capping station motor 5:Z上限位感应开关; Z upper limit sensor switch 墨栈皮带及齿轮;capping station belt and gear 7:墨栈限位开关。Capping station limit sensor 1: 废墨瓶(注意需要定时清理,防止溢出)Waste ink bottle (Note: need to clean regularly to prevent overflow) 2:...
Page 11
(Note: Don’t connect the printhead cable and the cover of the carriage right now. And if there is anything wrong with the motion, please contact technician) Technician: Mr.Ma Email: support@sinocolor.com.cn Whatsapp /Wechat ID:+86 189 39965808 Skype: sanyi_support 二,墨水安装 Ink installation 加注墨水进入大墨盒(添加2/3位置即可),注意颜色顺序,如下图所示。...
Page 12
当墨盒里墨水液位过低时,机器会发出报警声,并亮起红灯,此时应该添加墨水到墨盒里。液位报警灯位于机器上方, 需对应安装墨水: When the ink level in the ink cartridge is too low, the machine will give an alarm to remind you. And the light will be on. Then need to add ink into the ink cartridge. The alarm lights are located above the machine, and needs. Each one indicate one color. Need to fill in ink according to the light.
Page 13
三, 电脑连接 Computer connection 注意 推荐要求:CPU:3.5 GHz或更高 内存:4GB或更高 硬盘:500GB或更高(NTFS格式) 操作系统:Microsoft Windows 7/10 Ultimate Edition Note Recommended requirements: CPU: 3.5 GHz or higher Memory: 4GB or higher Hard disk: 500GB or higher (NTFS format) Operating System: Microsoft Windows 7/10 Ultimate Edition 注意...
Page 14
disk. While if your PC has only one disk, please ignore). The USB disk need to be properly kept.(The document for different model of printer will be different. So please don’t mix them) 打开计算机的系统属性,选择“Device Manager”: Keep the printer powered on. Check the computer system property (No matter you are using Win7 or Win 10. Only need to open the ‘’...
Page 15
双击“WLY”此驱动,显示详细信息点击“Update Drive”: You will find the driver ‘’WLY’’ Double click ‘’WLY’’, will appear its detail information. Left click ‘’Update Driver’’...
Page 16
选择“Browse my computer for drive software”: Choose “Browse my computer for drive software”: 点击“Browse”,选择我司控制软件里面的“Drive3.0 WIN10”点击“OK”,然后再次点击“Next”(根据电脑系统的版本进行选 择):...
Page 17
Click ‘’Browse’’, And choose the document in our console software’’ Driver3.0’’- ‘’WIN10’’(Choose according to your computer system) Then click ‘’OK’’- ‘’Next’’ 完成驱动安装: Driver installation finished. Close...
Page 18
四,软件控制 Software control 每次打开软件需要连接此加密狗: Each time when you open the software, must insert this dongle into your computer. 机器开启之后,通过 USB 数据线连接电脑,插上加密狗,打开软件之后左下角打印机状态会显示高,如下图所示: After the machine is turned on, connect the computer through the USB cable and plug the dongle. After opening the software, the printer status will show the “high”...
Page 19
校准尺轮比(X,Y): Gear ratio calibration (X, Y) 点击系统维护,X 运动设置, 会看到如图所示界面,首先在移动后面填入一个较小值(100),点击移动,此时,小 车移动停止后再点击复位,最后点击运用;再次重复设置数值(200)再次点击运动,复位,保存。 Click ‘’Maintenance’’, ‘’X Motion Setting’’, you will see the interface as shown, first fill in a small value (100) behind the ‘’Move’’, click ‘’Move’’, then click the ‘’ Reposition’’ after the printhead carriage stop moving (You will see the data behind ‘’Gear Ratio changes), click ‘’Apply’’;...
Page 20
Printhead Installation: (very important, any questions, please contact with technician) Technician: Mr.Jack Email: support@sinocolor.com.cn Whatsapp /Wechat ID:+86 189 39965808 Skype: sanyi_support 安装喷头线需要注意喷头底面连接“BOTTOM”,喷头正面连接“TOP”;如下图示: To install the printhead cables, need to notice the bottom of the printhead to connect “BOTTOM”, and the top of the printhead connect to “TOP”;...
Page 22
将打印头固定在托架上,通过4个固定柱固定喷头;根据墨水色彩模式,连接墨囊在喷头指定位置。 Fix the printhead on the carriage floor, then use 4 fixing posts to fix it. Connect the dampers to the specified position of the printhead according to above photo. Control the machine with console software 使用控制软件控制机器 Pump ink manually 手动抽取墨水...
Page 23
点击“Parameters”,选择“Heads”点击“Load-Ink”; 此时抽墨的墨泵会通过墨托进行抽墨,等待所有墨水出来 (可以从墨托下的连接墨泵的吸墨管看出有没有吸到墨水)然后点击“STOP”停止泵送; 然后单击“Clean” “Normal”按 钮清洁打印头的表面。 Click “Parameters”, select “Heads” and click “Load-Ink”; the ink pump will pump ink from the capping unit. Waiting for all the ink to be pumped out (can see that from the ink tube that connected to ink pump under the capping unit). Then click “STOP”...
Page 24
在平台上安放好材料后,在打印前需要调整喷头底面和材料之间的高度(此高度应为1-2mm)。 将小车移到平台上方,然后用平台上升/下降按键调整平台高度,目视检查喷头底面和材料之间的距离,当它们之间的距离 达到1-2mm时,完成平台高度调整。 After placing the material on the platform, before printing, you need to adjust the height between the bottom of printhead and the material (this height should be 1-2mm). Move the carriage to be above the platform, then use the up/down button to adjust the height of the platform. Visually check the distance between the bottom of the printhead and the material.
Page 25
Note: This is the perfect test image; if there is the lost or broken line, please repeat to pump ink (5-10s) and then clean and print the test chart again; if the nozzle test is still not good after you repeated more than 10 times, please contact technician! Technician: Mr.Ma Email: support@sinocolor.com.cn Whatsapp /Wechat ID:+86 189 39965808 Skype: sanyi_support 五, 校准 Calibration 步进校准:在...
Page 26
双向校准: 在 “Bi-Dir Offset”分别选择“720”,“360”点击“Print”进行校准。点击界面“Apply”。在“-6”的位置上 下是对齐的,说明高速情况下,双向偏差 “-6”,需要在后面调整框中加上 “–6”,点击界面“Apply”(注意:保存完请再 次校准,确保准确性) Bi-Dir Calibration:Select "720", "360" in "Bi-Dir Offset", click “Print”to calibrate. Click “Apply”. Above and below part are aligned at -6 position, means that under fast speed, Bi-Dir error is -6, need to add -6 in the adjustment box. Click "Apply "...
Page 27
六, 载入打印文件,打印测试 Upload the printing file, print test 载入打印文件有三种选择,第一种,点击主菜单栏的打开文件界面,根据路径找到 RIP 好的 PRN 文件,选 中之后双击或者点击下方打开。 There are three options for loading the file. The first one is to click ‘’Open’’ in the main interface and find PRN file(after RIP well). Double click on it or click to open. 第二种,主菜单栏点击任务选择,找到存放...
Page 28
第三种, RIP 软件直接打印。 打开如下图示“MainTop Print Manager”设置端口“127.0.0.1”直接打印 Third, Print directly from the Rip Software. Open the "MainTop Print Manager" (If your printer is using Maintop Rip Software), setting port "127.0.0.1" as shown below to print directly...
Page 29
当双击打印任务时,会弹出任务属性框,如下图所示: When you double-click the task you want to print, will pop up task properties window like below: 任务属性:Function of Task properties: 可以选择重复打印,当勾选重复打印之后,每次打印完成,车头都会复位,然后再同一白边起始位置开始打印 同一个任务。 多幅设置,可以设置横向幅数和纵向幅数,中间可以设置间隔,间隔的单位是 mm 毫米 区域打印,可以手动选取文件的一部分进行打印,当区域打印时,重复打印,和多幅设置无效 Repeat Print: When the ‘’Repeat print ‘’ is chosen, each time when printing completed, the carriage will back to base point, and then start to print at the same starting point.
Page 30
Multiple setting, you can set the X (X Direction) and Y (Y direction) data, the space of two design (X Space, and Y Space). The data for space is based on millimeter. Regional printing, you can manually select to print part of the file. In this case, repeat print and multiple settings are invalid 墨量统计:...
Page 31
注:当墨量截取之后,输出的图像精度会降低,点会变粗,一般不建议在此处调节墨量 But please kindly note: If reduce the ink amount, the accuracy of the output image will decrease, and the dots will become bigger. So don’t to adjust the ink volume here.
Page 32
打印:当任务导入完成,可以点击软件“Print Control”,同时软件界面会显示当前PRN 任务的文件信息,例 如设置起点打印位置“Margin Width”,查看颜色数量,面积等,如下图: Print: When the task uploaded, you can click “Print Control”, and the software interface will show the file information of the current PRN (The format of ripped art) task, for example, set the starting point position -“Margin Width”, and check the number of colors, Area size, etc., as shown below: 白边设置:...
Page 33
七, 软件功能介绍 Introduction of The Function of Software 标题菜单栏:Title Menu 打开文件: 导入 RIP 好的 PRN 文件进行打印 打印:导入好 PRN 文件之后,选种文件,点击打印,开始打印当前任务 暂停:打印过程,暂停打印,小车复位,按钮此时变为 继续,点击继续,任务继续打印停止:停止当前打印任务 闪喷:打开或关闭喷头待机闪喷 清洗:当喷头状态不佳时,对喷头进行清洗打印校准图:打印喷头状态图,垂直状态图 车头回零:当车头不在原点时,可以让小车直接复位回到原点 左移:小车向左移动 右移:下车向右移动 进料:材料向前移动 退料:材料向后移动 Open: Import PRN file for printing Print: After importing the PRN file, select the file and click Print to start printing the current task. Pause: the printing process, pause printing, the car resets, the button changes to <continue>...
Page 34
参数设置界面:”Parameter” Interface 白墨设置:请保持出厂设置。 White ink setting: Please don’t change the parameter here. Keep it as factory setting. 彩条设置:设置彩条的宽度,离图片距离,位置,左侧、右侧、或者两侧 Color setting: set the colorbar width, distance to image, position (left side, right side, or both sides) 边缘羽化:默认只需要勾上边缘羽化即可(请勿选择加强羽化),类型一般选择雾喷,幅度根据实际调整,幅度越大,速 度越慢,效果越好。 加强羽化在打印色块,或者喷头状态较差时开启使用,开启加强羽化,打印速度会降低, 但效果会 提升很多,可以根据打印出来效果实际调试 Eclosion: Usually only need tick ‘’enable eclosion‘’.
Page 35
Then click the “Load-Ink” button, will start to pump ink. And in the mean time, the ‘’Load-Ink’’ button will become ‘’Stop’’. So you can stop pumping as you need.
Page 36
系统维护界面 System maintenance interface 偏差校准 Bias calibration:...
Page 37
双向校准: 打印前需要对 180 精度,360 精度,低、中、高速分别打印校准图校准,在调试说明里对双向校准图有详细的 说明。 Bi-Dir calibration: Before printing, you need to do calibration for 180 ,360 resolution, low, normal and Fast speed. You can find detail introduction of bi-direction calibration in previous pages. 步进校准:打印前需要对“基础”和需要打印的步进进行校准 Step calibration: before printing, need Calibration of the “base step” and the steps that need to be printed 距离校准:分为横向距离和纵向距离校准...
Page 38
看着越流畅,但是在保证不电机不丢步前提下,具体速度需要实际调试确定值。移动、计算,校准 Y 方向齿轮比时 使用,详细在调试步骤中有说明。 The speed of the Y ,have low, middle and high speed. The feeding speed of the parameter setting interface is set here. Y speed more faster, printing process looks more smoother. However, under ensuring that the motor does not lose steps, the specific speed needs to be adjusted actually.
Page 39
八, 系统菜单 System menu: 读取闪存参数和写入闪存参数功能暂未开放。 请勿点击 Read Flash Parameters and Write Flash Parameters still not available. Please don’t click. 加密狗管理,当使用分期加密狗时,到期需要写入密码才能继续使用 Dongle management, when using the staging dongle, you need to write a password to continue using it.
Page 40
九,常见故障处理 Frequent Trouble-Shooting: No action when booting 1、开机无动作 (1)、数据线连接有问题,检查光纤线顺序是否对应。(主板显示A) (2)、检查电机信号线是否连接正确,线序是否正确,X,Y 电机信号线是否接反 (3)、检查电机驱动器是否正常 (4)、确认开机动作设置是否正确,重新导入参数或固件 (5)、检查板卡电源,观察 D71、D72、D74,D80 指示灯是否亮 (1) There is a problem with the cable connection. Check if the order of the fiber cables corresponds. (Main board display A) (2) Check if the motor signal line is connected correctly, whether the X, Y motor signal line are reversed. (3) Check if the motor driver is normal (4) Confirm that the boot action settings are correct, re-import parameters or firmware (5) Check the power of the board,whether the D71, D72, D74, D80 light are on.
Page 41
(4)、软件提示数据交织错误,软件设置白墨通道数不对;二次解密软件版本不对。 (1), The print test has no action, the PRN file in the software is incorrect, contact the SinoColor technical support to solve (2), Software prompt 1 PASS data is abnormal, the software version and the board do not correspond (3), Prompt Y DPI is too small, the software configuration file does not correspond, the state diagram and software settings are wrong, generally single and double head, nozzle type does not correspond, etc.
Page 42
(1) There is a problem with the USB interface or the data cable. Try replacing the data cable or replacing the computer interface. (2), 16pi long data cable has a problem, re-plug, or replace (3), The printing speed of the carriage exceeds the spraying frequency of the head, make the speed slower (4), Replace the board...
Page 43
Shanghai Rucai high-quality and cost-effective printing equipment, Recruitment dealers around the country, excellent conditions, welcome to contact us Tel: 021-52063365 Mobile: 18939965809 Contact: Mr. Cai Address: No. 318, Majiazhai Road, Fengxian District, Shanghai...
