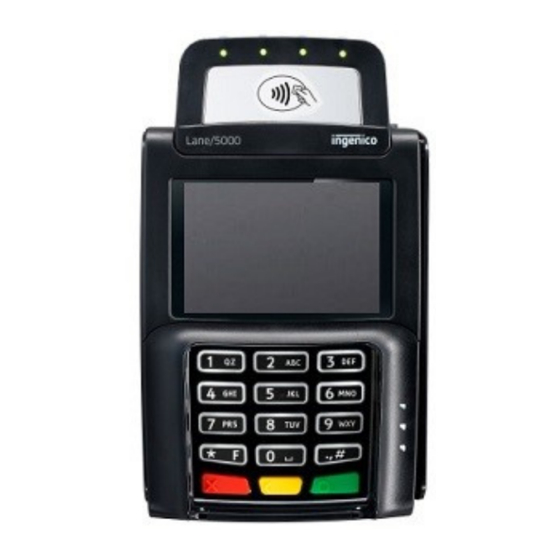

- Page 1 Quick Start Guide Lane 5000 What's in the box? 1.Card Terminal 2.Terminal Cable 3.Power Supply Unit 4.Ethernet Extension Block 5.Ethernet Extension Cable 6.Window Decal...
- Page 2 Function keys Menu - Use this button to access the main functions menu on the terminal Cancel - Use this button to cancel and revert back to the previous screen Clear - Use this button to clear back or delete characters when keying in text/numbers Enter - Use this button to confirm selection on the terminal...
- Page 3 Getting started Connect the Terminal cable to the Lane5000 terminal by connecting the HDMI end to the back of the terminal as shown. Connect the Power supply to the Terminal cable, and connect to an active Ethernet port. *Note the Ethernet extension block and additional cable can be used to extend the cable if required.
- Page 4 EVOPayments.co.uk/support-centre/ uksupport@EVOPayments.com EVO Payments UK Ltd is authorised and regulated by the FCA under the Payment Services Regulation 2017 (FRN 959332) for the provision of payments services and under the Consumer Credit Act (FRN 966552) for the undertaking of terminal rentals.
