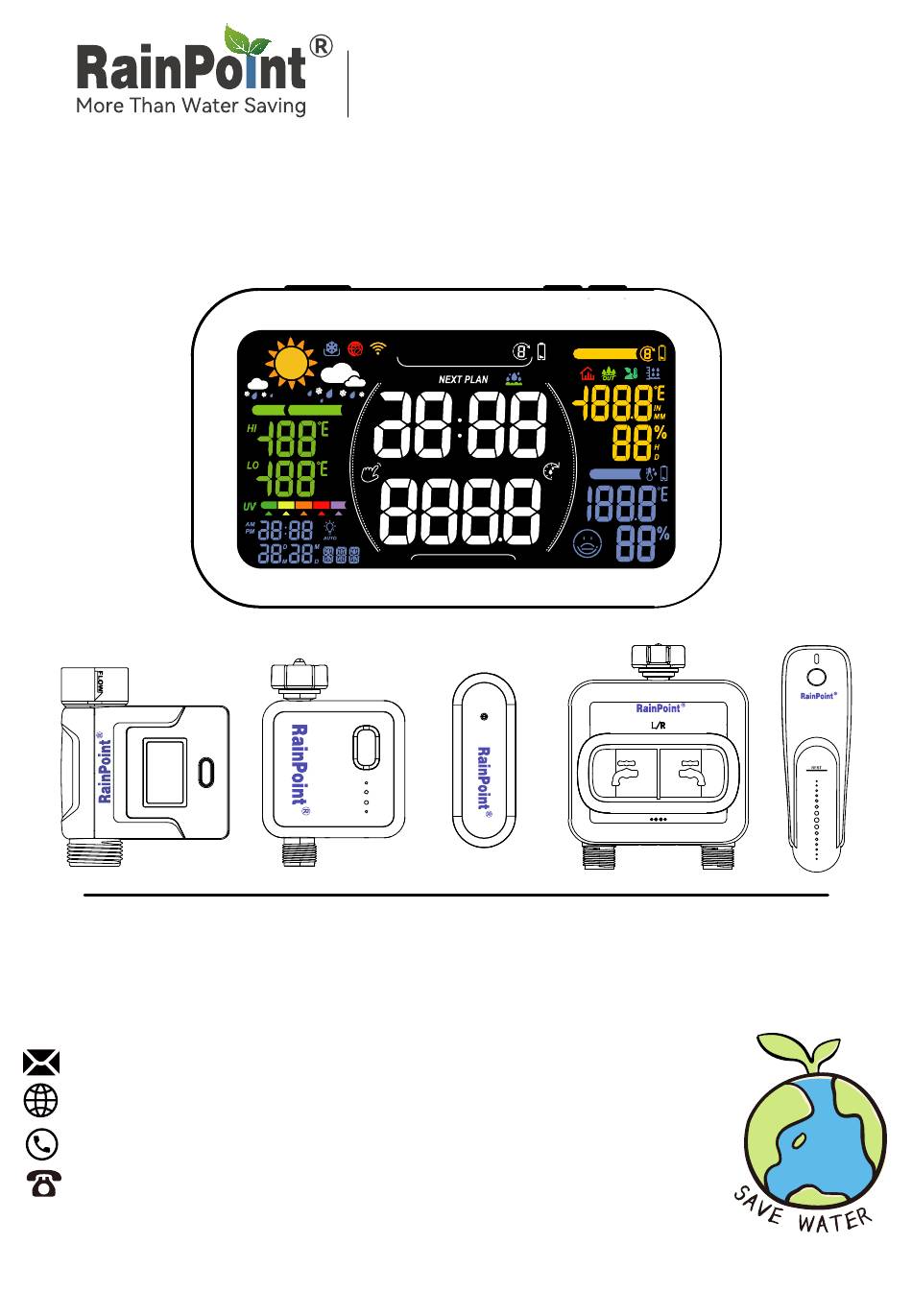

HUB USER MANUAL
Welcome to the RAINPOINT smart family! Please read the manual
before using to learn about the features and functions.
Have Questions?
Email: service@rainpointus.com
WEB： www.rainpointonline.com
WhatsApp: +1 626-780-5952
US Free Hotline(English): +1 833-381-5659
(MON-FRI 9:30 AM-5:30 PM PST)
EU Free Hotline(English Deutsch): +44 800-808-5337
(MON-FRI 9:00 AM-5:00 PM CET )
Smart Garden Irrigation System
SMART GARDEN ZONE.
AM
TODAY
TOMORROW
PM
+
SENSOR NO.
NEXT PLAN
M
D
D
M
LAST USAGE
INDOOR
24H
GAL
L
Advertisement
Table of Contents
Related Manuals for RainPoint HIS019WRF
Summary of Contents for RainPoint HIS019WRF
- Page 1 SENSOR NO. NEXT PLAN TODAY TOMORROW LAST USAGE INDOOR Welcome to the RAINPOINT smart family! Please read the manual before using to learn about the features and functions. Have Questions? Email: service@rainpointus.com WEB： www.rainpointonline.com WhatsApp: +1 626-780-5952 US Free Hotline(English): +1 833-381-5659...
-
Page 2: Table Of Contents
CONTENTS 1. WI-FI DISPLAY HUB HIS019WRF 1.1 Product Overview 1.2 Button Introduction 1.3 LCD Screen Overview 1.4 Specification 2. WORK ON APP 2.1 APP Installation 2.1.1 Download 2.1.2 Before Connection 2.2 Connection 2.2.1 Smart Connection Mode 2.2.2 AP Connection Mode 2.3 APP Overview... -
Page 3: Wi-Fi Display Hub His019Wrf

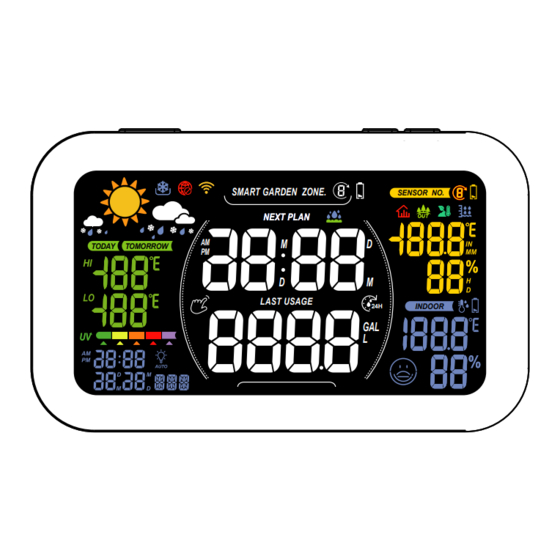

1.WI-FI DISPLAY HUB HIS019WRF-V2 1.1 Product Overview ZONE WIFI SENSOR LIGHT Cable Port （Always keep the cable powered when pairing and remote control） SMART GARDEN ZONE. SENSOR NO. NEXT PLAN TODAY TOMORROW LAST USAGE Note: WIFI connection INDOOR will consume a lot of... -
Page 4: Lcd Screen Overview
1.3 LCD Screen Overview 2 3 4 7 8 9 10 SMART GARDEN ZONE. SENSOR NO. NEXT PLAN TODAY TOMORROW LAST USAGE INDOOR 1. Weather forecast for reference 15. Data of the sensors (If there is no 2. Freezing point alert sensors connect, the screen will 3. -
Page 5: Specification
To get accurate displays, please keep the devices away from any a freezing place, direct sunlight, rain, or any heat place. DRY: Humidity ≤40% COMFORT: 40% ≤Humidity≤ 70% 68°F(20℃) ≤Temperature≤ 82.4 °F(28℃) WET: Humidity ≥ 70% 1.4 Specification Detect Indoor Temperature: (9.9ºC~50ºC)-14ºF~122ºF , (±1℃)±3.6°F Detect Indoor Humidity: 1%RH~99%RH, ±5％RH UV Index: 0~15 5 Levels Backlight: OFF, 10%, 30%, 50%, 100%... -
Page 6: Work On App
2.WORK ON APP 2.1 APP Installation 2.1.1 Download or scan the QR code to download: •HOMGAR APP downloads: •Create an account and log in: Follow the instructions to sign up account or log in with an existing account and start matching devices! - 04 -... -
Page 7: Before Connection
2.1.2 Before Connection To assure your display hub to connect to Wi-Fi, it will need to meet the following requirements: • Please make sure the phone is connecting with 2.4GHz Wi-Fi before using HOMGAR app. The hub has to keep staying under 2.4GHz Wi-Fi to work normally. -
Page 8: Connection
2.2 Connection Tips: Please scan the QR code or search the link to access the video to connect the device quickly and easily. Setup Video: https://www.you- tube.com/watch?v=6tNFDQa3N1k 2.2.1 Smart WiFi Connection •Power on the hub with the power cable and follow the steps below to connect: - 06 -... - Page 9 •After register account and get into the APP " " page, find button on the top right corner of the APP’s Home Page. " •Select Display " , then enter the Rainpoint_2.4G Wi-Fi information and go next. - 07 -...
- Page 10 Tips: Please select 2.4Ghz WiFi If your router is a dual-band router, and you cannot identify the 2.4Ghz or 5Ghz WiFi, please tap the blue words ''Common router setting method'' to name the Rainpoint_2.4G 2.4Ghz WiFi differently,then you can select it individually.
- Page 11 •When "SCAN" appears, check "All steps completed" box and then select "Next" to start searching devices. •When device found, select to add the device and enter the name you prefer. - 09 -...
-
Page 12: Ap Connection Mode
HIS019WRF-V2 •Congratulations! Now you successfully add the device to your APP. 2.2.2 AP Connection If Smart Connection Mode does not work well, you can also try to use AP Connection Mode. • Power on the hub with the power cable and follow the steps below to... - Page 13 • After register account and get into the APP page, find "+" button on the top right corner of the APP’s Home Page. • Select "Display Hub", then enter the Wi-Fi information and go next. - 11 -...
- Page 14 • Click Switch Mode in the upper right corner to switch to AP Connection. • On the device, press and hold the "Wi-Fi" button for about 5 sec until it shows "SCAN ". Hold the "WiFi" button for 2 seconds until the display shows "AP".
- Page 15 • When "AP SCAN" appears, check "All steps completed" box and then select "Go Connecting" to connect the phone with below the hot spots (HomGar_xxx). Note: If the phone pops up with no signal and need to switch WiFi, please do not switch to keep Hot spot of connected devices.
-
Page 16: App Overview
• Congratulations! Now you successfully add the device to your APP. 2.3 APP Overview Tips: Please scan the QR code or search the link to access the video to operate the device quickly and easily. Setup Video: http://bit.ly/3WR5kWP - 14 -... -
Page 17: App Home Page
2.3.1 APP Home Page •Home Management: Set home name, location and other information to manage your garden irrigation system intelligently and accurately. •All Devices: All added devices will be displayed here. •Local Weather: the corresponding weather data will be displayed. •Room System Management: After setting the location of the home, Show the related devices in different rooms. -
Page 18: Plan Page
2.3.2 Plan Page List all of your irrigation plans for water timers. You can manually turn on or off the plan by the button on the right. There is also a manual Rain Delay button to put off all plans if there is raining. 2.3.3 Event Page Review all the events that have occurred. -
Page 19: Me And Basic Settings
2.3.4 Me and Basic Settings Manage your account, home, basic settings, and other options. You can also find unit format and notification button in these settings. Notes: After the hub and sub-devices are connected, the selection of the sub-devices will be displayed on both the APP home page and the "All Devices"... -
Page 20: Device Page
2.3.5 Device Page 1. Device Setting 2. Barometric Pressure 3. Current Temperature and Humidity 4. The Highest and Lowest Temperature 5. The Highest and Lowest Humidity 6. Sub-device Management 7. Device Data Chart - 18 -... -
Page 21: Device Settings
2.3.6 Device Settings Tips: 1. Rain display needs to work with the rain gauge, which is purchased separately. 2. Weather display is the weather display for only today or both today and tomorrow. 3. Warning settings is to set the alert for specific values of temperature and humidity. -
Page 22: Basic Sub-Devices
3.BASIC SUB-DEVICES 3.1 How to Connect If you need to connect the sub-device, please connect the hub or display hub of Rainpoint Smart+ series first. There are two ways you can connect the sub-devices: "Add Device" button on the top right corner of the APP home page "Sub-devices"... -
Page 23: Htv113Frf
3.2 HTV113FRF Smart 1-Zone Water Timer Operation Button Battery Cover " " 1. Find 1-ZONE Water Timer or the icon to add HTV113FRF Smart 1-Zone Water Timer when adding sub-devices. 2. Inset the batteries, and then the indicator will quickly blink in red. At "... -
Page 24: Htv213Frf
3.3 HTV213FRF Smart 2-Zone Water Timer Battery Cover Operation Button " " 1. Find 2-ZONE Water Timer or the icon to add HTV213FRF Smart 2-Zone Water Timer when adding sub-devices. 2. Inset the batteries, and then the indicator will quickly blink in red. At the same time, select "NEXT"... -
Page 25: Hcs014Arf
3.4 HCS014ARF Outdoor Thermo-Hygrometer Sensor " " 1. Find Air Humidity Sensor or the icon to add HCS014ARF Outdoor Thermo-Hygrometer Sensor when adding sub-devices. " " 2. Select Next and start searching devices. At the same time, insert the batteries, and then the red indicator will quickly blink once. Please make sure the APP is already in searching before power on the sensor. -
Page 26: Hcs021Frf Soil Moisture Sensor
3.5 HCS021FRF Soil Moisture Sensor 1. Find＂Soil Moisture Sensor＂or the icon to add the sensor. 2. Inset the batteries, and then the indicator will quickly blink in red. At the same time, select＂NEXT＂on the APP and start searching devices. 3. Keep the sensor and the hub close to each other to connect automatically. ... -
Page 27: Hcs008Frf Water Flow Meter
3.6 HCS008FRF Water Flow Meter 1. Find＂Flow Meter＂or the icon to add the sensor. 2. Insert the batteries and the flow meter will get into the pairing mode automatically. At the same time, select＂NEXT ＂on the APP and start searching devices. 3. -
Page 28: Troubleshooting
4. TROUBLESHOOTING Problems Some Solution 1. The display hub uses 5V adaptor as the main power source, and batteries used only as a backup. 2. Replace a new adaptor. It is important to use Power problem the correct adaptor on all electronic equipment. -
Page 29: Notice
•Please clean the filter regularly and replace it if worn to prolong the timer's working life. 6.WARRANTY POLICY RAINPOINT provides a 3-year limited warranty on this product against manufacturing defects in materials and workmanship. - 27 -... -
Page 30: Fcc Statement
7.FCC STATEMENT: (FCC ID:2AWDBHIS019WRF) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. -
Page 31: Customer Support
If you find it difficult to set up and want to watch the setting tutorial video, please subscribe to our channel: Rainpoint on YouTube. Please scan the QR code to visit the RainPoint channel on YouTube quickly. If the app and the user manual don’t have what you’re looking for, and you need some help, please prepare the Model NO.
