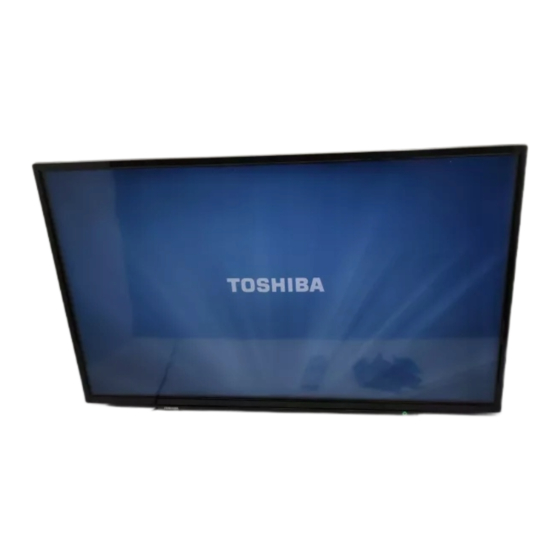

- Page 1 OWNERS MANUAL LCD DISPLAY TD-E323 - TD-E323E For information on warranties and service please visit www.toshiba.eu/services...
-
Page 2: Table Of Contents
Contents Important Safety Information ........2 Vesa Wall Mount Measurements ......7 When Using a Wall Bracket ........7 Connecting to external equipment ......7 Control Buttons on the Display .......9 Turning the Display On/Off ........10 Remote Control ............ 11 First Time Installation..........12 Media Playback via USB Input ......12 CEC and CEC RC Passthrough ......13 Display Menu Contents ........14 Connectivity ............19... -
Page 3: Important Safety Information
• Please place the product in a position that electric Important Safety cables cannot be affected by the operations on the product. Information • Follow all warnings and instructions marked on the product. CAUTION • Follow the on screen instructions for operating the related features. - Page 4 • Do not interfere on your products screen or any other Safety checks surface with a sharp object. Upon completion of service or repair work, request the service technician to perform safety checks to ensure • Do not keep your product in a humid environment. that the product is in proper operating condition.
- Page 5 monitor where it cannot be pushed, pulled over, or other than mentioned in user manual additional knocked down. requirements may be necessary. • Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.
- Page 6 Leaked battery Exclusion Clause fluid that gets into your eye or your clothing may Toshiba shall under no circumstances be liable for loss cause a skin irritation or damage your eye. and/or damage to the product caused by: CAUTION i) fire;...
- Page 7 but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product. UK Power Cord Warning In UK, use BS-approved power cord with molded plug having a black (10A) fuse installed for use with this monitor.
-
Page 8: Vesa Wall Mount Measurements
Vesa Wall Mount Measurements Hole Pattern Sizes (mm) Screw Sizes min. (mm) Length (X) max. (mm) Thread (Y) When Using a Wall Bracket Please use a wall bracket appropriate for the size and weight of the LCD display and two people are required for the installation. - Page 9 Rear Side (2) 1. Audio Out 2. Audio In 3. Ethernet 4. RJ12 (service use only) 5. Video In 6. YPbPr 7. SPDIF Coaxial Out English - 8 -...
-
Page 10: Control Buttons On The Display
Control Buttons on the Display To turn on the Display: Press the centre of the joystick in, the Display will turn on. To turn the Display off: Press the centre of the joystick in and hold it down for a few seconds, the Display will turn into standby mode. -
Page 11: Turning The Display On/Off
Turning the Display On/Off Press the Standby button on the remote or press the centre of the joystick in located on rear left side of the Display to switch it on from standby . Press the centre of the joystick in and hold it down for a few seconds or press the Standby button on the remote to switch display into standby mode. -
Page 12: Remote Control
Standby: Switches On / Off the Display Remote Control Numeric buttons: Enters a number or a letter in the text box on the screen. Signage: Displays Signage Settings menu Volume +/-: Increases or decreases the volume CMS: Opens the predefined Start url (in Signage Settings>Link options menu). -
Page 13: First Time Installation
USB device. not selectable. Please note this information as it Media Browser Menu will be required if contacting Toshiba regarding You can play photo, music and movie files stored on your monitor refer to the Signage Settings Menu a USB disk by connecting it to your Display. Connect... -
Page 14: Cec And Cec Rc Passthrough
This feature will only work if all of the following cir- case volume control keys are directed to connected cumstances occur: audio device. • The USB device is plugged in. Note: ARC is supported only via the HDMI1 input. System Audio Control •... -
Page 15: Display Menu Contents
Display Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Text, Game, Sports, Signage and Natural. Signage mode has been developed to enhance Dynamic contrast, colors and sharpness levels. Contrast Adjusts the light and dark values on the screen. - Page 16 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Please ensure before using headphones that the headphone volume is set to a low Headphone level, to prevent damage to your hearing.
- Page 17 Save model Copies the model information data of the unit to a connected USB device. This information information will be required is you contact Toshiba about your monitor Display Life Time Displays the duration of life of the unit. Controls Sets the OSD (On Screen Display) rotation of your Display.
- Page 18 Select ASCII/HEX protocol for UART 1. Default value is HEX. There is no need to restart the Display after selection in order to work with the protocols correctly. If the selection is changed, the latest selected protocol will be preserved and started when UART 1 the Display is booted up.
- Page 19 You will need to enter the correct PIN to carry out this operation. installation Note: Enter the PIN you have defined during the First Time Installation process. If you have forgotten the pin used, please contact Toshiba service center. English - 18 -...
-
Page 20: Connectivity
Connectivity Troubleshooting Connectivity Internet Connection Not Available / Audio Video To configure wired settings please refer to the Network/ Sharing Not Working Internet Settings section in the System>Settings If the MAC address (a unique identifier number) of menu. your PC or modem has been permanently registered, it is possible that your Display might not connect to Wired Connectivity the internet. -
Page 21: Internet Browser
If you select the media type as Videos and choose to Speed Dial option in the submenu and press the OK button again. Name and Address will be filled a device from the selection menu. Then select the folder with video files in it on the next screen and all automatically according to the site you are visiting. -
Page 22: Controlling With An External Pc
Display to a network and displaying the IP address of the Display. Use the commands in the RS232 Command Table which can be found on Toshiba website.For example, if “GETVOLUME” command is entered, current volume level should be displayed on the putty You can control the product from an external PC via window as shown in the pictures below. - Page 23 Another example; Volume level can be changed by using “VOLUME” command. After sending this command, you can verify the changes from the Display. The last example ; When “GETSOURCE” command is entered, current source should be displayed on the putty window as shown in the picture below.
-
Page 24: Rs232 Hex Commands
RS232 HEX COMMANDS System Features Protocol Test Steps Panel RJ12 and DSUB9 both are connected to UART Panel type 32” (82cm) DLED 0. UART 1 is connected to the OPS module for Resolution 1920x1080 sending OPS to monitor commands. UART 1 is not reachable via the external RS232 or LAN port. - Page 25 Using Your LCD display Product More Effectively Paying attention to the following points with respect to your product will provide a stable performance and also prolong its life. Daily Care • Environmental Factors Do not directly expose your product to humidity, high temperature, fire, direct sun light and dust while using it.
-
Page 26: Notification
Notification TRADEMARK ACKNOWLEDGMENT The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby Audio and the double-D symbol are trademarks of Dolby laboratories. -
Page 27: Trouble Shooting & Tips
Trouble Shooting & Tips Display does not turn on Make sure the power cord is plugged in securely to the mains socket. Check if batteries are of the remote exhausted. Press the Standby button on the Display. No picture This means your Display is not receiving any signal. Check if the correct source is selected. - Page 28 Dimensions Unit (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) 32” Weight : 9.5 Kg English - 27 -...
- Page 29 Disposal... The following information is only for EU-member states: Disposal of products The crossed out wheeIed dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.
- Page 30 Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018. Toshiba will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.
