Model: RM/319
RM/320
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM/319 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RAMTONS RM/319

Summary of Contents for RAMTONS RM/319

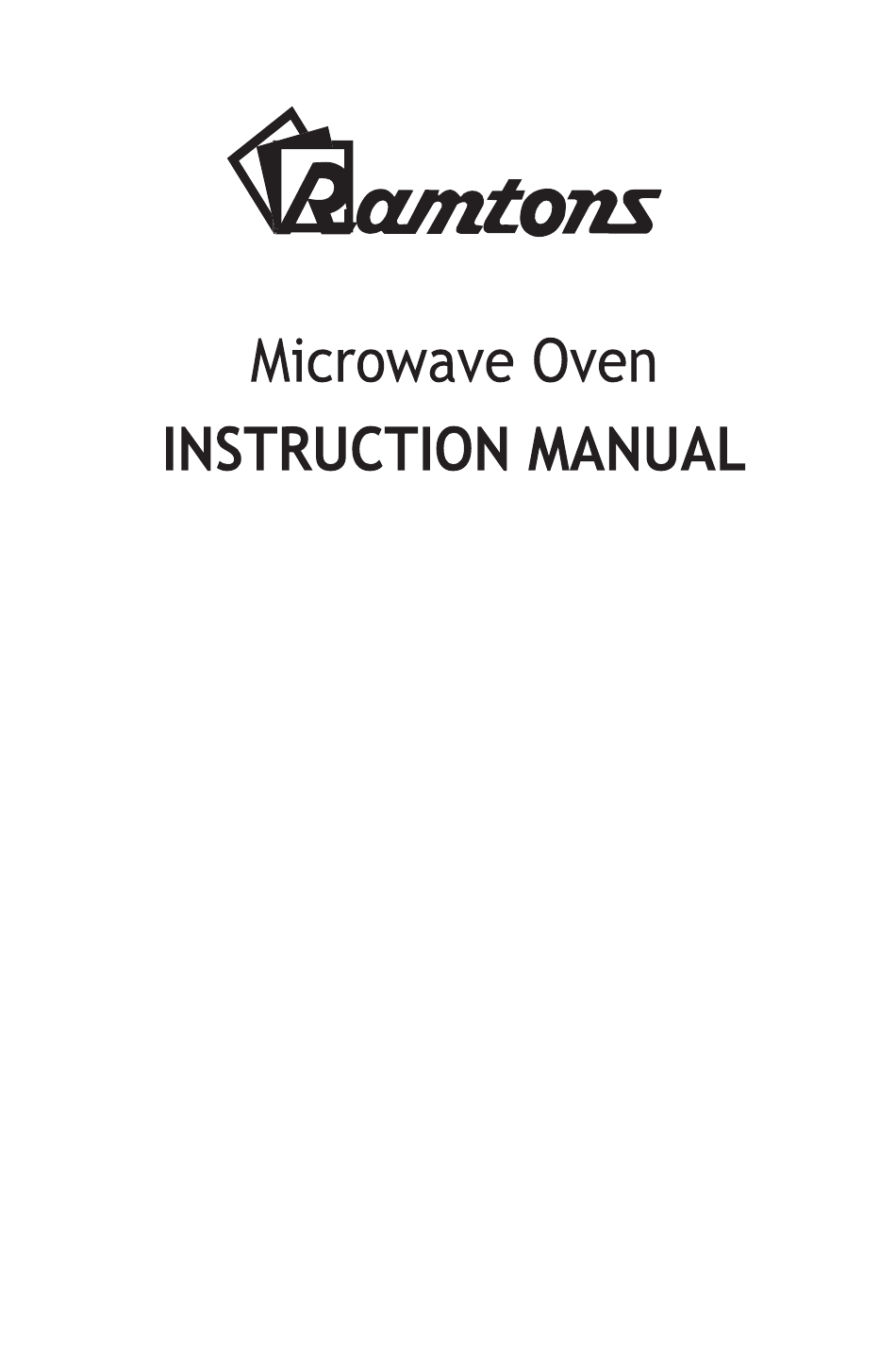

  • Page 1 Model: RM/319 RM/320 Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...

  • Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model: RM/319 RM/320 Rated Voltage: 230V~50Hz Rated Input Power(Microwave):...

  • Page 3: Important Safety Instructions Warning

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock, injury to persons WARNING or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must 13. Install or locate this oven only in not be heated in sealed containers since accordance with the installation they are liable to explode.

  • Page 4: Read Carefully And Keep For Future Reference

    23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 5: To Reduce The Risk Of Injury To Persons Grounding Installation

    To Reduce the Risk of Injury to Persons Grounding Installation DANGER 2)The extension cord must be a grounding- type 3-wire cord. Electric Shock Hazard 3)The long cord should be arranged so that Touching some of the interna components it will not drape over the counter top or can cause serious personal injury or death.

  • Page 6: Materials You Can Use In Microwave Oven

    See the instructions on "Materials you can use in UTENSILS microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not CAUTION safe to use for microwaving. If in doubt, you can test the Personal Injury Hazard utensil in question following the procedure below.

  • Page 7: Materials To Be Avoided In Microwave Oven

    Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe dish. metal handle Metal or metal- Metal shields the food from microwave energy. Metal trim may trimmed utensils cause arcing.

  • Page 8: Turntable Installation

    Turntable Installation a. Never place the glass tray upside down. The glass Hub (underside) tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. Glass tray c. All food and containers of food are always placed on the glass tray for cooking.

  • Page 9: Operation

    OPERATION 1. Power Level 11 power levels are available. Level Power 100% PL 0 Display PL10 PL 9 PL 8 PL 7 PL 6 PL 5 PL 4 PL 3 PL 2 PL 1 2. Clock Setting (1) Press " CLOCK ", "00:00" will display. (2) Press the number keys and enter the current time.
  • Page 10 Example: to cook the food with 50% microwave power for 15 minutes. a. Press "TIME COOK" once. "00:00" displays. b.Press "1", "5", "0", "0" in order. c.Press "POWER"once, then press "5" to select 50% microwave power. d.Press "START/+30SEC." to start cooking. Note:1) In the process of setting, if the "...

  • Page 11: Frozen Vegetable

    POPCORN a) Press " POPCORN " repeatedly until the number you wish appears in the display, "50","100"g will display in order. For example, press "POPCORN" once, "50" appears. b) Press " START/+30 SEC. " to cook, buzzer sounds once. When cooking finishes, buzzer will sound five times and then turn back to waiting state.

  • Page 12: Dinner Plate

    BEVERAGE a) Press " BEVERAGE " repeatedly until the number you wish appears in the display, "1", "2", "3" cup will display in order. One cup is about 120ml. For example, press "BEVERAGE" once, "1" appears. b) Press "START/+30 SEC." to cook, buzzer sounds once. When cooking finishes, buzzer sounds five times and then turn back to waiting state.

  • Page 13: Inquiring Function

    15. Multi-stage cooking At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then defrosting shall be placed at the first stage automatically. Note: Auto cooking cannot work in the multi-stage cooking. Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave power for 10 minutes.

  • Page 14: Troubleshooting

    Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste.

This manual is also suitable for:

Rm/320
