TRIUMPH BOARD 2000 Series Mounting Instructions

MOUNTING INSTRUCTIONS FOR ULTRA SHORT PROJECTOR MOUNT
Model: PROJECTOR WALL MOUNT 2000/3000 Series
Max. Weight Loading: 15Kgs
Mount Assembly Kit
x2
Cable protection grommet
Projector Fixing Kit
A - M3 x 10mm E - M3 x 25mm
B - M4 x 10mm F - M4 x 25mm
x4
C - M5 x 10mm G - M5 x 25mm
D - M6 x 10mm H - M6 x 25mm
I - M3 Washer K - M5 Washer
x4
J - M4 Washer L - M6 Washer
M - M5 x 10mm
x4
N - M5 x 5mm
O - M6 x 15mm
x4
P - Extension Arm
x4
Q - M5 x 10mm
Also Required
- read these instructions carefully before installing your equipment.
install the mount in a suitable location using fixings which are appropriate for the wall material and structure. Consult a
-
qualified builder if you are in any doubt as to the structural integrity of the wall.
- use all available fixing points.
do not attempt to alter or modify any part of the wall mount or it's attachments.
-
do not use if any parts are broken or appear to be damaged.
-
- tighten all bolts and fixings securely. Only use fixings provided with this bracket.
- do not mount your projector near to sources of heat or moisture.
always have a minimum of two persons to install the projector and the mount.
-
1

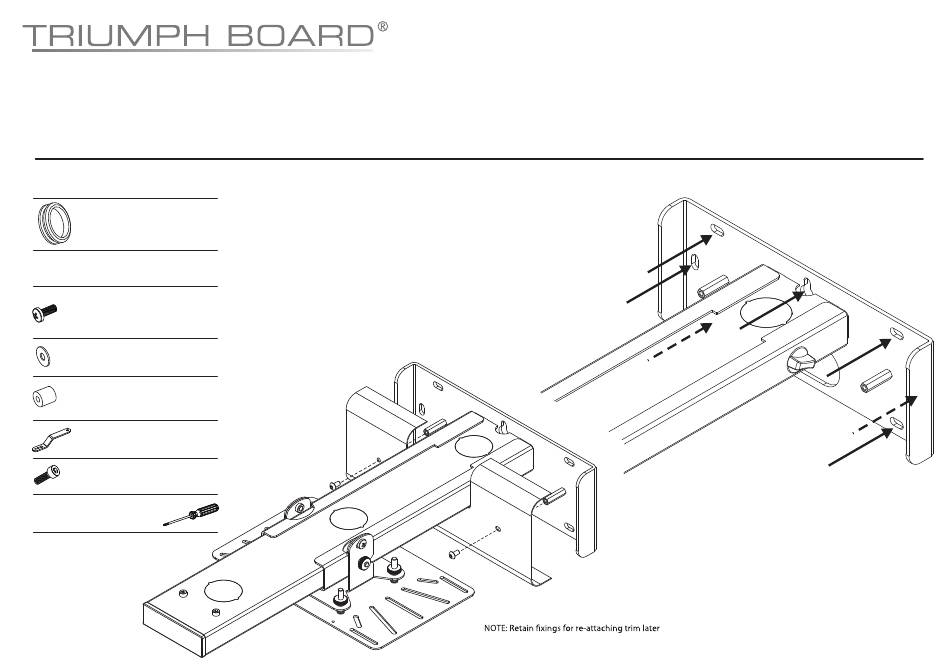

Attach Wall Plate To Wall
For ease of installation mount bracket on wall using position 1
-
and mark other positions using a spirit level. Then remove
fixing from position 1, remove bracket and drill other positions
- Use Fixings suitable for your type of wall construction.
Use All available fixing points.
-
- If in any doubt of the suitability of the wall, it's construction or what
type of fixings to use, consult a qualified builder or installer.
NOTE:
- For mounting TRIUMPH BOARD PROJECTOR PJ2000/3000 UST DLP
projectors locate the wall plate centrally to the screen centre.
a
b
Remove wall plate trim before attaching to wall
1
