HoneyGuaridan S68 - Smsrt Pet Feeder Manual

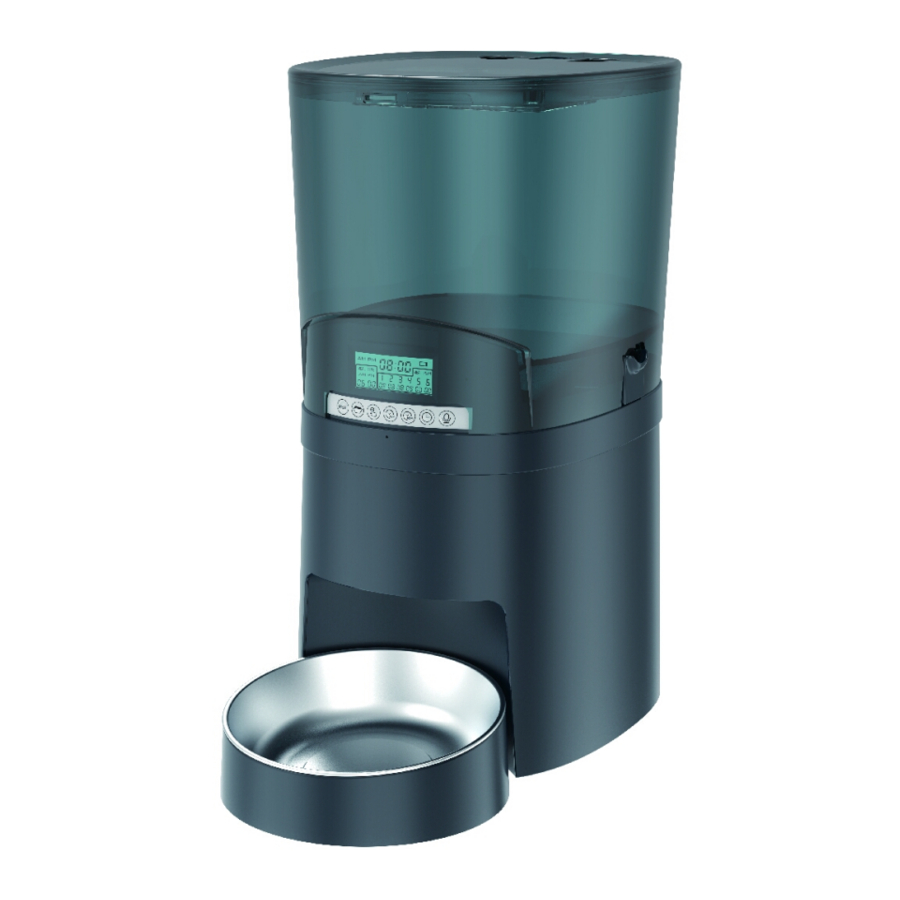

Product Diagram

Packing List

Single Bowl Version:
1 x Pet Feeder, 1 x Stainless Steel Bowl, 1 x Bowl Holder, 1 x Power Adapter, 1 x Desiccant Bag, 1 x User Manual

Dual Bowls Version:
1 x Pet Feeder, 2 x Stainless Steel Bowls, 2 x Bowl Holders, 1 x Power Adapter, 1 x Desiccant Bag, 1 x 2-way Splitter, 1 x User Manual

Notice

1. The feeder is for indoor household use only.
2. The host of the equipment is not washable. The food hopper, the bowl holder and stainless steel bowl can be removed for washing.
3. Please place the feeder horizontally and close the lid to keep the food from spilling out when pets knocked over.

Dual Power Supply

1. Plug the power cord into the feeder.

2. Install 4 D-size alkaline batteries as back up battery. (Batteries are not included)
   *If powered by battery only. The device can work for 3 months.
   *We recommend using both the power adapter and batteries at the same time in case of a power outage. When the external power is cut off, the device will change to battery powered.


• Note: The WiFi function only work on plug-in power. For energy saving, the WiFi is unconnectable and all operations on the app will be unavailable if powered by batteries only.

Single Bowl Installation

• Please assemble the base of the food bowl with the host.


Dual Bowls Installation

(If you purchased the dual bowls version.)

1. Please install the two way splitter into the host.

2. Please assemble the two bowl bases with the connector plate.

3. Put the host in place.


How to Remove the 2-way Splitter

• Please hold the two sides with both hands and press down with thumbs can remove the 2-way splitter.


Add Pet Food

• Press the lid open button to open the lid, pour the pet food into the food container.


1. Dispense each portion size is about 5-6g(16ml) food kibble;
   The dual bowls version dispense one portion to each bowl is about 2.5g.
2. Recommended food size: 0.2-1.2cm(0.07-0.47inch) diameter. Please use food smaller than 1.2cm, otherwise the feeder may get stuck.

Install Desiccant Bag

• Please put the desiccant bag to the desiccant box to keep pet food dry and fresh.

• Note:
  To prevent the mold growth, it is recommended to replace the desiccant bag every 15 days.

Maintenance

• For your pet's health, please clean the food container, stainless steel bowl and bowl holder regularly. The feeder host is not washable, please wipe it with a dry cloth.


Software installation and setup

• Please check and turn on your phone bluetooth and WIFI before connecting

1. Confirm that the machine is powered by the adapter power. (For saving battery power, The WiFi function can only be used when the adapter powered)
2. Confirm that the WiFi network is 2.4Ghz.
   (The feeder only works under 2.4Ghz network, does not support 5Ghz)

1. Install Smart Life APP
   Scan the QR code to download or search"Smart Life"in the app store to download and install the APP.


2. Create your account and agree to connect to the Internet
   Open the Smart Life app, agree to the privacy policy, select correct country, use email or mobile number to register a user account and log in, agree to grant local area network.

3. Agree to Home Data, Notifications, Bluetooth permissions




4. Please check whether the WIFI indicator of the feeder flashes quickly (once per second), if the WIFI indicator light is off, please press the two buttons shown below at the same time for resetting, then you will hear the "beep" sound, The Wi-Fi indicator light will flash quickly for waiting for pairing.

• Note: The WIFI indicator is off when the power adapter is not connected

• Note: You can press both the " "and " "for 3 seconds for factory reset at the same time.

5. Pull to refresh mobile phone interface as the picture:
   Pull to refresh the phone interface to auto search for the devices, the available devices will pop up, click add devices

6. Allow these APP permission, select your 2.4GHz WiFi network and enter the WiFi password.

7. Please be patient for waiting when the APP enters to "add device" page, when the device's WIFI indicator stops flickering and stays on, the APP interface jumps to the device name modification page, click the APP interface pops up the device name modification viewwin- dow, enter a new name and click "Finish", The APP returns to the "Add Device" page, click "Finish"


8. The APP jumps to the feeder control page, and the feeder is successfully connected to the Internet.


Recording Setting

• Press " "and hold for three seconds then you can record for Max 10 seconds after the recording indicator lighting up. Release the button during recording as the recording is completed. After finishing the recording, you can press " " to play your recording. If you need to delete or close the recording function, you can press " " double times until the recording indicator light blinking 3 times, then the recording message is removed.


Feeding

Manual Feeding

1. Enter the feeder control page, click Manual feeding, select the portions of food and click "OK" the feeder will dispense immediately.

2. You can also press and hold the Manually feeding button on the feeder for 3 seconds, after a "beep",The feeder will dispense 1 portion.


Make a feeding meal plan

1. The feeder supports a daily 6-meal feeding plan, click the feeding meals plan button to select the feedings portions volume and meal time, open the feeding meals plan and click Save.

2. If you need to disable a feeding meal plan, click the feeding meal, close the feeding meals plan button, and then click Save.


View feeding records

1. Click " ", pull down to open the page,
   It will be display feeding records.


Basic setting

Click the Setting button to jump to the Settings page.

1. Voice plays times
   The number of times (0 times - 6 times) plays a recording before feeding
2. Backup battery status
   Display battery status

3. Slow feed
   Turn on/off the slow feed function of the feeder
4. 24-Hour
   Turn 24 hour clock on/off

Advanced setting

• Click device Info to enter the advanced settings page.


1. Device Information
   Display device ID, IP, MAC, device time zone, signal strength
2. Offline Notification
   Turn on this function, the APP will notify you when the device Offline.

3. Share device
   This function can be used to Device sharing with your family
4. Add to home screen
   Add the feeder to the home screen for ready access to the feeder control page
5. Remove device
   You can reconfigure the feeder

FQA

Q: Why the LCD screen does not light up when plugged in?
A:

1. Poor connect of the power adapter.
2. There is a problem with the power adapter, please try it with batteries.

Q: Why the food won't come out?
A:

1. Please check the kibble size should range from 2-12mm/0.07-0.47 inch diameter. Try the manual feeding button.
2. Clean the feeder. Disassemble the food tank and clean the chute, and also clean the food outlet.

Q: Does the pet feeder work must with the power adapter and battery at the same time?
A: No need. It can be worked both. In order to prevent power outage, We recommend using the power adapter and batteries at the same time(Batteries are NOT included).

Q: Is there an indicator light when the battery is low?
A: Yes. When the batteries are low, the battery level sign on the LCD screen will turn on. After new batteries are installed, the sign will be turned off.

Q: Why I can't hear any voice recordings when feeding?
A: Please press the Recording button to play. If no sound is heard, you may need to record again.

Q: Can the voice recording be turned off with no affect meal schedule?
A: Yes, you can press the Recording Button twice until the recording indicator blinking 3 times, then the recording mes- sage is removed.

Q: Does the unit reset after 6 feeding, or does it just stop feeding?
A: Once you set the feeding schedule, it repeats everyday until there is no food in the food tank.

Q: For two way distributor system, Why the food dispense not evenly in each bowl?
A: The first few portions may vary and it doesn't mean a faulty equipment. After several feedings it should be almost even.

Q:Why does the phone can't connect to the pet feeder when only use batteries?
A:For saving battery life, The WiFi function can only be used when the adapter powered.
