1,How to put SIM card into IP camera
as shown in Figure 1
2,Connect the camera power, please do not plug in
the network cable. (If you plug in the network cable,
the camera will be connected to the wired network first,
and the 4G network will not work).and Please wait 1 minute, the 4G camera will automatically complete the
4G network connection.

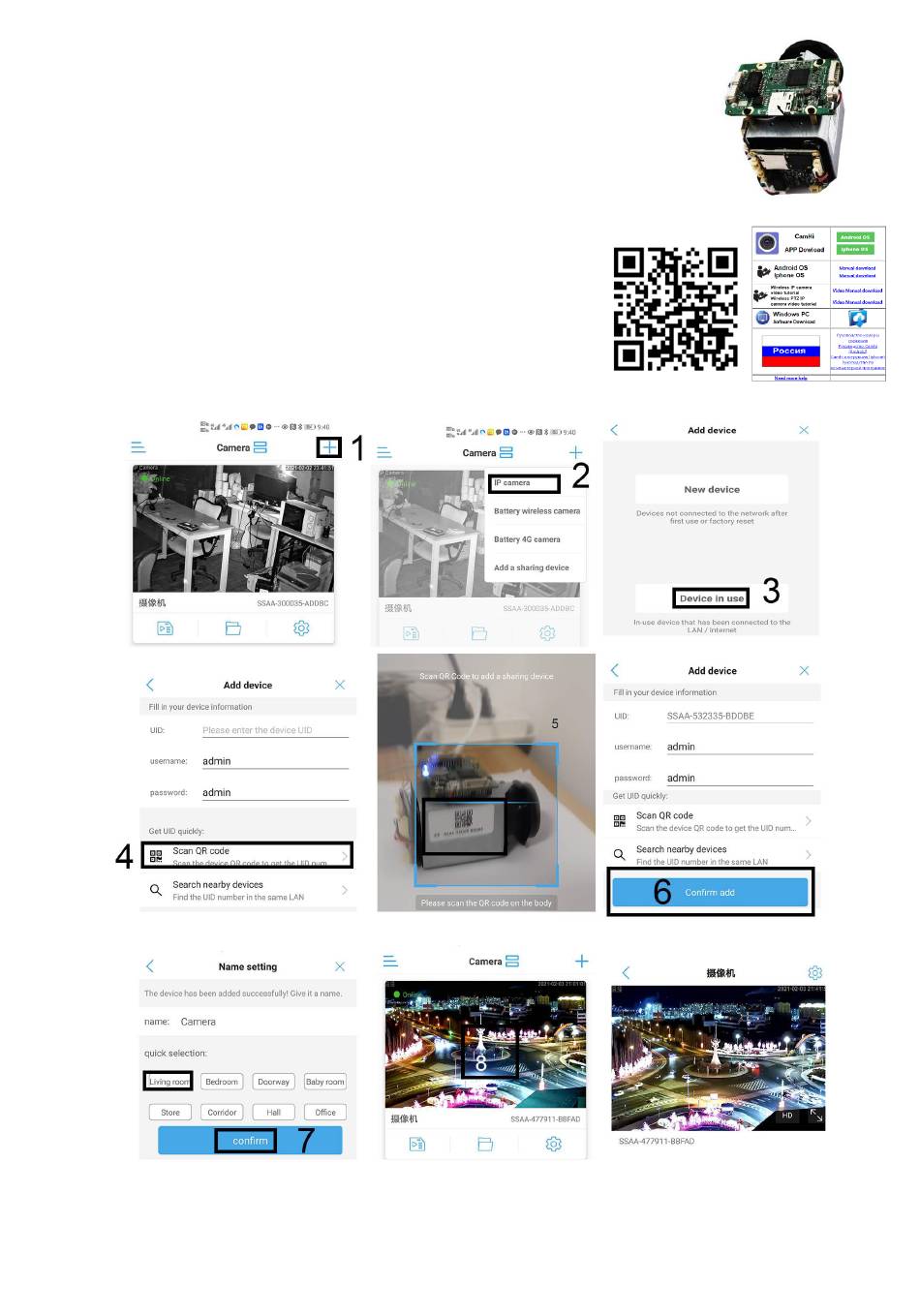

3, How to add camera on smartphone
Download "Camhi" / "Camhipro" ( for IOS and android ) from
APP store，open it and click add. Scan the QR code above to enter
the download page
4,Install Camhipro mobile APP and add camera:
Now 4G camera Configure the connection successfully.
- 1 - / 6
4G router WIFI ZOOM IP Camera Instruction
1
Advertisement
Table of Contents
Related Manuals for Esunstar Technology ALK-AF792
Summary of Contents for Esunstar Technology ALK-AF792
- Page 1 4G router WIFI ZOOM IP Camera Instruction 1,How to put SIM card into IP camera as shown in Figure 1 2,Connect the camera power, please do not plug in the network cable. (If you plug in the network cable, the camera will be connected to the wired network first, and the 4G network will not work).and Please wait 1 minute, the 4G camera will automatically complete the 4G network connection.
- Page 2 4,4G Router hardware description Figure 1 AF792 Dimensional Drawing Product size：49.0*38.0*8.5mm（L*W*H）Installation method: fixed with holes or directly fixed with bolts Hole size：33.0*33.0mm（L*W） 4.2 Interface Overview Table 2: Interface and Status Indicator Description icon Function power interface Module power supply interface, power supply requirement: DC12V After the module is turned on and started, it remains on and flashes when Work light 1 there is a terminal connected to WIFI;...
- Page 3 Use a computer to search for the WIFI signal of the camera. The WIFI name is the WIFI signal starting with MIFI-X, as shown in Figure 3. Select this WIFI signal and enter the connection password: 1234567890. Click the connect button, the computer will automatically connect to the camera via WIFI. As shown in Figure 4, the WIFI connection is successful.
- Page 4 Figure 4 Home page interface 2) Network page: mainly for network settings, including settings for external network connections and wireless internal networks APN setting VPN Setting Figure 6 Wireless Intranet Interface 3) Advanced settings page: including routing, firewall, firmware upgrade, restart, - 4 - / 6...
- Page 5 factory reset, etc Figure 7 Advanced Settings Interface 5.3 Soft restart function Support web based restart routers; The restart time is about 40 seconds, and after 40 seconds, the device fully starts successfully. 5.4 Restore Factory Settings Function Support web based restoration of factory settings. Figure 9 Restore Factory Settings Page The module can also be restored to factory parameters by pressing the Reload button (hardware reset button).
- Page 6 EsunStar Technology Co., Ltd. Address: B505-2, Zerun Center, No. 4088 Banxuegang Avenue, Bantian Street, Longgang District, Shenzhen, Guangdong, China,518129 Contact: Qi quan Email:service@esunstar.net Skype:hkcctv2008@outlook.com WeChat: esunstar - 6 - / 6...
