P03 Series PTZ IP Camera Quick Start Guide
1.

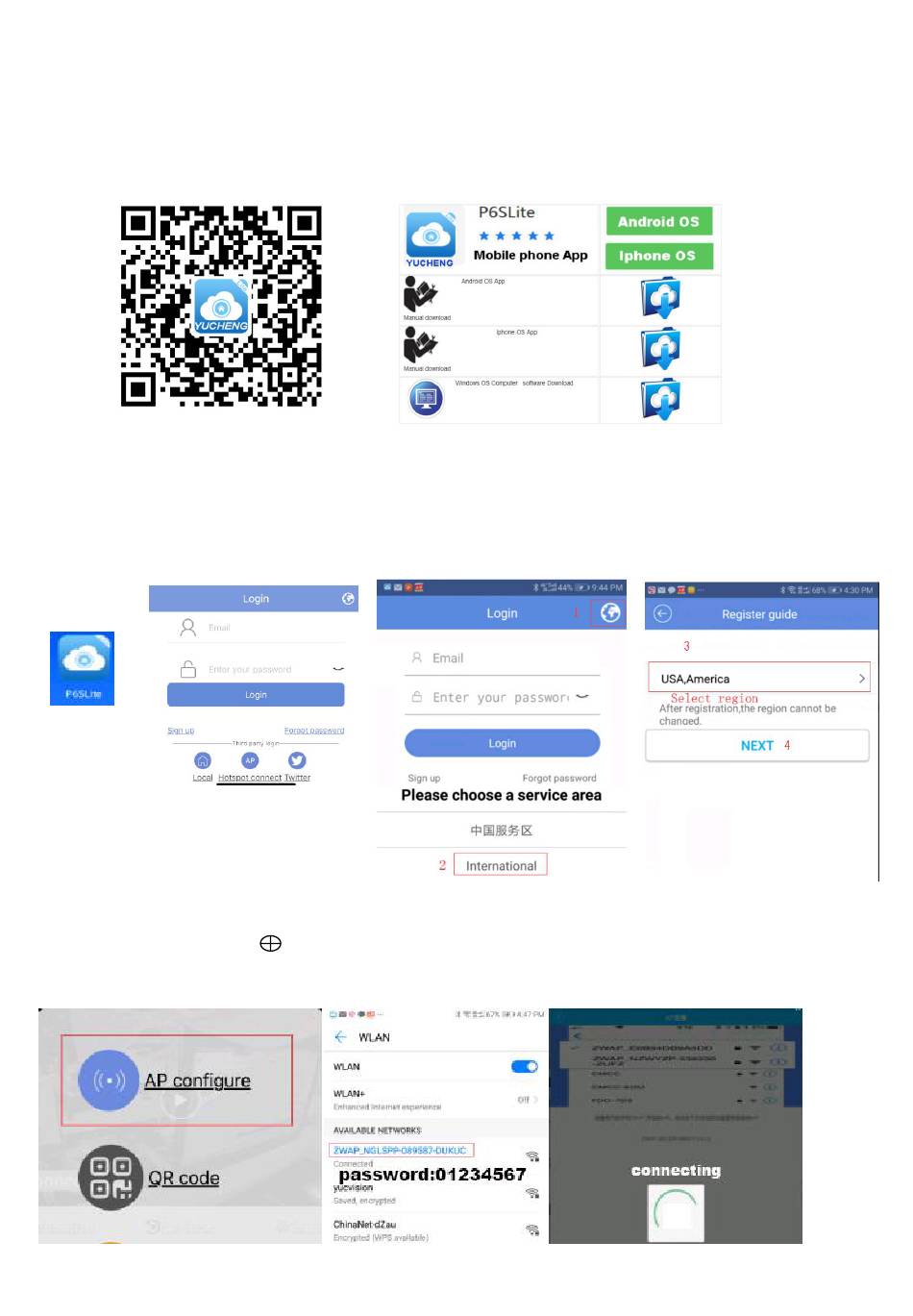

Go to the app store and download the free P6SLite app for your mobile device,available for both Android and iOS. Alternatively you
can scan the QR code below to access the download page directly（1-1）.Click on either the Android OS or iPhone OS button to
download the appropriate version for your device（1-2）.You can also download a Windows version to run on a Windows PC.
2.
Launch the P6SLite app and following the instructions on the screen.
3.
Account registration and server selection;Users can use your e-mail to register an account level. You can also log in to the APP
system directly using aTwitter account or use "Local"login.The user registration is as shown in Figure. Click on the first step in the
figure, select the second step of the lnternational, and then select the third step to register. As shown in Figure, the user can select the
region according to the actual geographical location. Select area (Foreign users can only register by email)
3-1
4.Add cameras
1),AP configuration:
① T
he camera only need to connect 12V power (for WIFI wireless camera)
②
,Open APP Home page, click the
to the prompt until the wifi search screen, select the AP at the beginning of ZWAP. If no WiFi hotspot is displayed, wait for the hotspot to
start. ) Enter the hotspot password 01234567 as shown in Figure 4-2.
Part 1【P6SLite mobile APP Quick Start Guide】
1-1
3-2
icon in the upper right corner. Select "AP configure" Connect as shown in Figure 4-1. According
4-1
Model:P03Z91LW4
1-2
4-2
1
4-3
Advertisement
Table of Contents
Related Manuals for Esunstar Technology P03 Series
Summary of Contents for Esunstar Technology P03 Series
- Page 1 P03 Series PTZ IP Camera Quick Start Guide Part 1【P6SLite mobile APP Quick Start Guide】 Model:P03Z91LW4 Go to the app store and download the free P6SLite app for your mobile device,available for both Android and iOS. Alternatively you can scan the QR code below to access the download page directly（1-1）.Click on either the Android OS or iPhone OS button to download the appropriate version for your device（1-2）.You can also download a Windows version to run on a Windows PC.
- Page 2 ③ , Click on the back button APP of the mobile device to show that it is connected as shown in Figure 2-3.(Note: If the configuration fails in the interface of Figure 4-3, it will return to the interface of Figure 4-2(This indicates that your WIFI password is entered incorrectly );...
- Page 3 4-11 4-12 4-13 4-14 ③ As shown in Figure 4-13, click “Save” in the upper right corner of the device (the password is empty). If the application is successfully saved, the device will return to the device management interface. Click the Home page to display the connected device. Will enter the camera preview interface as shown in Figure 4-14 3）manually add Open APP Home page, click + the icon in...
- Page 4 Click the on the APP interface, and the APP will pop up function button. Click + for ZOOM+,Click - for ZOOM- 2,Manual Focus ,If some scene cameras cannot complete auto focus, users can use manual focus to get a clearer image.:Figure 2-2 Click the on the APP interface, and the APP will pop up function button.
- Page 5 Part 3【PTZ Speed Dome Camera Features】 The PTZ Speed Dome camera has many advanced features. Automatic cruise The camera can automatically cruise between two to sixteen preset views. After setting the presets for up to sixteen different views, the camera can automatically cycle through the set views. Full circle rotation The camera can repeatedly rotate through a full 360°...
- Page 6 Detailed description of function settings Individual custom view presets. The horizontal and vertical positions of the camera, the zoom, and the focus of a view can be saved in any of the custom preset numbers 1 to 80. First rotate and zoom the camera to the position that you want and then press [N]+[SET] where N is any preset numbers from 1 to 80.
