Summary of Contents for Gaggenau CI282102

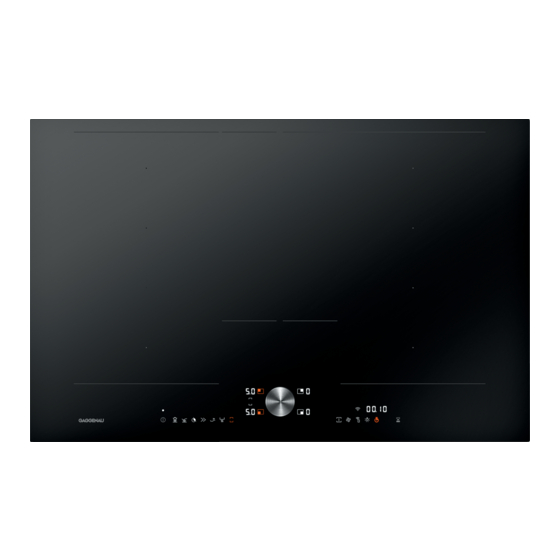

- Page 1 Gaggenau en Information for Use CI 282 Induction hob...
- Page 2 en Safety Table of contents 1 Safety Safety .............. 2 Observe the following safety instructions. Avoiding material damage........ 4 1.1 General information Environmental protection and saving en- ¡ Read this instruction manual carefully. ergy .............. 5 ¡ Keep the instructions, the appliance pass Suitable cookware.......... 5 and the product information safe for future reference or for the next owner.
- Page 3 Safety en dition, non-metal cooking utensils and cook- WARNING ‒ Risk of burns! ware with non-metal handles are used, it is The appliance and its parts that can be safe to use this induction hob as intended. touched become hot during use, particularly the hob surround, if fitted.
- Page 4 en Avoiding material damage If metallic objects come into contact with the WARNING ‒ Danger: Magnetism! fan that is located on the underside of the The removable control element is magnetic hob, this may cause an electric shock. and may affect electronic implants, e.g. heart ▶...
- Page 5 Environmental protection and saving energy en Damage Cause Action Scratches Material residue between the hob and the Keep the rotary knob contact area clean. rotary knob. Damage to the appli- Cooking with frozen cookware. Never use frozen cookware. ance Damage to the cook- Cooking without contents.
- Page 6 en Suitable cookware cooking zone. If cookware is not detected on a cooking To correctly detect the cookware, take the size and the zone, place this on the cooking zone with the next material of the cookware into consideration. All cook- smallest diameter.
- Page 7 Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance frying, energy savings as well as greater ease of clean- 5.1 Cooking with induction ing and care. It also offers improved heat control as the In comparison to conventional hobs, induction techno- heat is generated directly in the cookware.
- Page 8 en Control element TwistPad 5.4 Cooking zone 5.5 Residual heat indicator Before you start cooking, check whether the size of the The hob has a residual heat indicator for each cooking cookware fits the cooking zone that you want to use for zone. Do not touch the cooking zone if the residual cooking: heat indicator is lit.
- Page 9 Basic operation en The symbols for the cooking zones and the cur- Turn the rotary knob until the required power level rently available functions light up. lights up next to lights up on the display. the cooking zones. Set the rotary knob on the set- a The power level has been set.
- Page 10 en Flex Zone Pasta 6 - 7 6 - 10 Fish, breaded and frozen, e.g. 6 - 7 8 - 15 fish fingers Stew 3.5 - 4.5 120 - 180 Prawns and scampi 7 - 8 4 - 10 Soups 3.5 - 4.5 15 - 60 Sautéing fresh vegetables and 7 - 8 10 - 20 mushrooms Vegetables 2.5 - 3.5 10 - 20 Stir-fry, vegetables, meat cut in 7 - 8 15 - 20 Vegetables, frozen...
- Page 11 FlexPlus Zone en Caution 9.2 Flex Zone connect Do not place cookware in the middle between the right By default, the flexible zone is configured as two separ- and left zones. The cooking zones are not activated ate cooking zones. Switch on the following function to correctly and you do not achieve a good cooking res- connect the cooking zones: ult.
- Page 12 en Professional cooking function ¡ When you set a cooking time for a cooking zone in Timer Plus which the Cooking sensor is activated, the cooking If you press for a few seconds before the signal tone time will not start counting down until the selected ends, the Runtime function is switched on.
- Page 13 Booster for pots en 13 Booster for pots You can use this function to heat up large volumes of Select the cooking zone. water more quickly than with . Touch . The display lights up. This function is available for all cooking zones, a The function is switched on.
- Page 14 Boiling and reducing The recommended cookware is available from cus- sauces, fry veget- tomer service, specialist retailers or our online shop ables www.gaggenau.com. 140 ºC Searing in olive oil or Note: You can also use other cookware. Depending on butter the composition of the cookware, the achieved temper- 160 ºC...
- Page 15 Meal assistant en Switching on the Frying Sensor Cookware Place the empty cookware on the cooking zone. Fish fillet, breaded 10-20 Select the cooking zone and touch . Fish, fried, whole 10-20 lights up on the cooking zone display. Sardines 6-12 a The...
- Page 16 en Meal assistant 17.2 Cooking sensor a Once the set temperature setting has been reached, a signal tone sounds and the heating indicator goes You can use this function to heat up, cook or boil out. The temperature setting is displayed. foods, cook with the pressure cooker or fry in a pot Once the signal tone has sounded, remove the lid with a lot of oil at a controlled temperature.
- Page 17 7-10 You can purchase the wireless cooking sensor from customer service, in our online shop or in a specialist Durum wheat pasta, stuffed 15-20 shop www.gaggenau.com. Fresh pasta, stuffed Connecting the wireless cooking sensor Quinoa 10-12 To connect the wireless cooking sensor to the control...
- Page 18 18.1 Scope of delivery After unpacking all of the parts, check for any transport damage and for completeness of delivery.
- Page 19 Wireless cooking sensor en Insert a new battery, observing the instructions for the battery poles. Only use premium-quality CR2032 batteries. 18.4 Replacing the battery Note: Do not use any metal objects to remove the If the LED on the wireless cooking sensor does not battery.
- Page 20 en Childproof lock ¡ Do not touch the wireless cooking sensor with your fingers; this will soil or scratch it. 18.6 Declaration of Conformity BSH Hausgeräte GmbH hereby declares that the appli- ance with wireless cooking sensor function meets the basic requirements and other relevant provisions of the Directive 2014/53/EU.
- Page 21 Basic settings en 22 Basic settings You can configure the basic settings for your appliance to meet your needs. 22.1 Overview of the basic settings Display Setting Value Signal tones – All signal tones are switched on - Most of the signals are switched off. ...
- Page 22 en Cookware test 23 Cookware test The quality of the cookware has a major influence on Turn the rotary knob. flashes in the cooking the speed and the result of the cooking process. zones. You can use this function to test the quality of the cook- a The function is switched on.
- Page 23 Home Connect en Download the Home Connect app. Open the Home Connect app and scan the follow- ing QR code. Follow the instructions in the Home Connect app. 25.2 Overview of the Home Connect settings You can adjust the settings and network settings for Home Connect by going to your hob's basic settings. Setting Selection or display Additional information...
- Page 24 en Hob-based hood control 25.3 Changing settings via the Notes ¡ You can continue to use your appliance as normal Home Connect app while updates are downloading. Depending on your You can use the Home Connect app to change the set- personal settings in the app, software updates can tings for the cooking zones and send them to the hob.
- Page 25 Hob-based hood control en 26.2 Controlling the extractor hood via the PowerBoost Intermittent ventilation Fan run-on In the basic settings for your hob, you can adjust the behaviour of your extractor hood depending on Switching off the fan whether the hob or individual cooking zones are Touch ...
- Page 26 You can obtain suitable cleaning products and glass Tips scrapers from customer service, a retailer or the online ¡ You can achieve good cleaning results using a shop www.gaggenau.com. special sponge for glass ceramic. ATTENTION! ¡ If you keep the base of the cookware clean, the Unsuitable cleaning products may damage the sur- hob surface remains in a good condition.
- Page 27 FAQs en 28.2 Noises Question Answer Why can I hear noises ¡ Noises may be generated while using the hob depending on the base material of while I'm cooking? the cookware. These noises are normal for induction technology. They do not in- dicate that there is a fault.
- Page 28 en Troubleshooting 29 Troubleshooting You can rectify minor faults on your appliance yourself. 29.1 Warnings Read the troubleshooting information before contacting Notes after-sales service. This will avoid unnecessary costs. ¡ If appears in the displays, press and hold the WARNING ‒ Risk of injury! sensor for the respective cooking zone and read the Improper repairs are dangerous.
- Page 29 Disposal en Fault Cause and troubleshooting The cooking sensor has overheated and the cooking zone has been switched off. Wait until the cooking sensor has cooled down sufficiently before activating the function ▶ again. The cooking sensor has overheated and all of the cooking zones have been switched off. When you are not using the cooking sensor, remove it from the cookware and keep it ▶...
- Page 30 BSH Hausgeräte GmbH hereby declares that the appli- A detailed Declaration of Conformity can be found on- ance with Home Connect functionality conforms to the line at www.gaggenau.com/gb among the additional basic requirements and other relevant provisions of Dir- documents on the product page for your appliance.
- Page 32 BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY www.gaggenau.com Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom...
