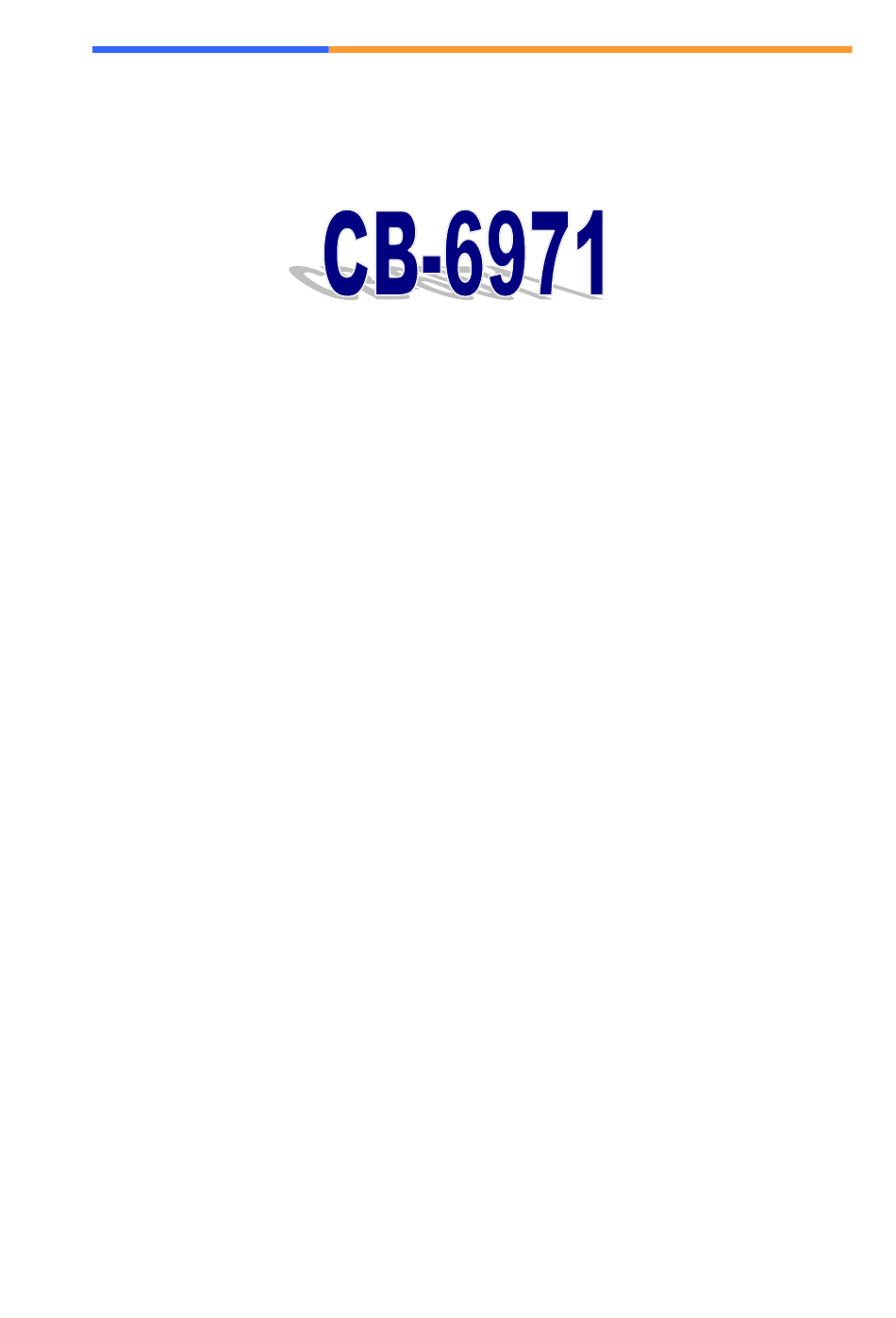

  • Page 1 User’s Manual Networking Control Board Model Number CB-6971 ® ® Geode LX800 Networking Control Board with four LAN or three LAN and four switch User’s Manual Version 1.0 AEWIN Technologies Co., Ltd Aug, 2006...
  • Page 2 For more information on CB-6971 or other AEWIN products, please visit our website http://www.aewin.com.tw. For technical supports or free catalog, please send your inquiry to info@aewin.com.tw...

  • Page 3: Table Of Contents

    3.13 Exit Without Saving..................28 Chapter 4. Utility & Driver Installation ...............29 4.1 Operation System Supporting ................29 4.2 System Driver Installation ................29 4.3 VGA Driver Installation...................29 4.4 LAN Driver Installation...................30 Appendix A: Optional Accessory and Cable List............32 AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 4: Chapter 1. General Information

    User’s Manual Chapter 1. General Information 1.1 Introducing The CB-6971 is a networking control board based on AMD Geode architecture with CS5536 chipset supporting the LX800 CPU. The CB-6971 is equipped with four 10/100Mbps LAN ports, or three 10/100Mbps LAN and four 10/100Mbps switch. Based on good cost and performance, it is suitable for SMB/SOHO segment.

  • Page 5: Order Information

    CB-6971. Keep the box and carton when you probably ship or store CB-6971 in near future. After you unpack the goods, inspect and make sure the packaging is intact. Do not plug the power adapter to the main board of CB-6971 if you already find it appears damaged.
  • Page 6 User’s Manual Do not remove the anti-static packing until you are ready to install the CB-6971 control board. Ground yourself before removing any system component from it protective anti-static packaging. To ground yourself, grasp the expansion slot covers or other unpainted parts of the computer chassis.

  • Page 7: Board Layout

    User’s Manual 1.6 Board Layout 1.7 Board Dimension CB-6971A-050 AEWIN Technologies Co., Ltd Aug, 2006...
  • Page 8 User’s Manual CB-6971B-050 AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 9: Chapter 2. Connector/Jumper Configuration

    User’s Manual Chapter 2. Connector/Jumper Configuration 2.1 Connector/Jumper Location and Definition AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 10: Connector And Jumper Setting

    Chassis Ground CN3: COM1 RJ45 connector CN8: Four port switch Define Define CTS# DTR# TXD# Console Detect# Chassis Ground Chassis Ground RXD# DSR# Chassis Ground RTX# Chassis Ground CN4/5/6/7: 10/100 RJ45 connector CN10: VGA connector AEWIN Technologies Co., Ltd Aug, 2006...
  • Page 11 DTR# PDD0 PDD15 Ground Ground PDDREQ Ground CN13: LPC bus connector The connector is proprietary for LPC PDIOW# Ground port 80 card. PDIOR# Ground PDIORDY Ground PDDACK# Ground IRQ14 V5P0 PDA1 PD66# PDA0 PDA2 AEWIN Technologies Co., Ltd Aug, 2006...
  • Page 12 GPin1 GPIn2 LINK4+ LINK4- GPin3 GPout0 SPEED4+ 8 SPEED4- GPout1 GPout2 GPout3 C20: Switch LED (Optional) CN17: USB pin header Define VSBVCC Pin Define Pin Define DATA- Switch 1 LINK+ Switch 1 LINK- DATA+ AEWIN Technologies Co., Ltd Aug, 2006...
  • Page 13 User’s Manual Switch 1 Switch 1 SPEED- SPEED+ Switch 2 LINK+ Switch 2 LINK- Switch 2 Switch 2 SPEED- SPEED+ Switch 3 LINK+ Switch 3 LINK- AEWIN Technologies Co., Ltd Aug, 2006...
  • Page 14 IDE ACTIVE- PW LED+ PW LED- JP1/JP4: DDR Speed & Voltage Detect Setting 1-2 (ON) DDR-400/2.6V 1-2 (OFF) DDR-333/2.5V JP2: Compact Flash Select Setting Master 1-2 (ON) (Default) 1-2 (OFF) Slave JP3: Clear CMOS Setting AEWIN Technologies Co., Ltd Aug, 2006...
  • Page 15 User’s Manual Normal (Default) Clear CMOS AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 16: Chapter 3 Bios Setup

    User’s Manual Chapter 3 BIOS Setup The ROM chip of your CB-6971 board is configured with a customized Basic Input/Output System (BIOS) from Phoenix-Award BIOS. The BIOS is a set of permanently recorded program routines that give the system its fundamental operational characteristics.

  • Page 17: Entering The Cmos Setup Program

    1. Turn on or reboot the system. After the BIOS performs a series of diagnostic checks, the following message appears: “Press DEL to enter SETUP” 2. Press the <DEL> key to enter CMOS Setup program. The main menu appears: AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 18: Menu Options

    Configure the CPU speed and, if the optional system monitor IC is installed, view system information LOAD OPTIMIZED DEFAULTS: Loads optimized BIOS settings SET USER PASSWORD: Configure the system so that a password is required when the system boots or AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 19: Standard Cmos Features Setup

    PgUP/PgDN/+/- keys. Some fields let you enter numeric values directly. Option Description Date (mm:dd:yy) Type the current date Time (hour: min: sec) Type the current time (24-hour clock) IDE channel Select from “Auto”, “User”, or “None” AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 20: Advanced Bios Features Setup

    1. Choose “Advanced BIOS Features Setup” from the main menu. following screen appears: 2. Use the arrow keys to move between items and to select values. Modify the selected fields using the PgUP/PgDN keys. Press the <F1> “Help” AEWIN Technologies Co., Ltd Aug, 2006...
  • Page 21 Choose 9600/19200/38400/57600/115200 item. Agent Connect via Select <Null> to let agent connect directly. Agent wait time (min) Agent negotiate time, choose 1/2/4/8 min. Agent after boot Choose <enabled> for agent to administrate the system after boot. AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 22: Advanced Chipset Features Setup

    Select the amount of memory taken from system memory to be used by onboard video hardware. 3.7 Integrated Peripherals Use the Integrated Peripherals Setup option as follows: 1. Choose “Integrated Peripherals Setup” from the main menu. The following screen appears: AEWIN Technologies Co., Ltd Aug, 2006...
  • Page 23 IDE Primary Slave UDMA If the device in IDE Primary Slave interface and operation system supports DMA, select Auto to enable UltraDMA33/66/100 implementation. IDE DMA transfer access Allow you to enable or disable DMA (Direct Memory Access) support for all IDE devices. AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 24: Pnp/Pci Configuration

    This option is used to configure Plug and Play assignments and route PCI interrupts to designated ISA interrupts. Use the PNP/PCI Configuration Setup option as follows: 1. Choose “PNP/PCI Configuration Setup” from the main menu, the following screen appears. AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 25: Pc Health Status Configuration Setup

    3. Please press the <ESC> key to return the main menu after finishing with the PNP/PCI Configuration Setup. 3.9 PC Health Status Configuration Setup Choose “PC Health Status Configuration Setup” from the main menu, the following screen appears: AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 26: Load Optimized Defaults

    CMOS Setup Utility main menu. The password functions are disabled by default. You can use these options to enable a password function or, if a password function is already enabled, change the password. AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 27: Save And Exit Setup

    Option” in “BIOS Feature Setup” to specify whether a password is required every time the system boots or only when an attempt is made to enter the CMOS Setup program. 3.12 Save and Exit Setup This function automatically saves all CMOS values before exiting Setup. AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 28: Exit Without Saving

    User’s Manual 3.13 Exit Without Saving Use this function to exit Setup without saving the CMOS value. AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 29: Chapter 4. Utility & Driver Installation

    8. Find "Geode LX AES Crypto Driver", click next. 9. Following the instruction to finish the installation. 4.3 VGA Driver Installation CB-6971 offers the VGA driver in the setup CD. Please install the driver follow the below procedures. 1. Click the [Device Manager] tab.

  • Page 30: Lan Driver Installation

    CB-6971 support Ethernet controlled by using Realtek® 8139CL+ chipset. Please install the driver follow the below procedures. 1. Insert the setup CD of CB-6971 into your CD-ROM drive. 2. Choose the Drivers file to click the Setup icon. 3. Click [Next] button.
  • Page 31 User’s Manual 4. Click [Finish] button. AEWIN Technologies Co., Ltd Aug, 2006...

  • Page 32: Appendix A: Optional Accessory And Cable List

    User’s Manual Appendix A: Optional Accessory and Cable List The VGA header of CB-6971 must work via additional adapter card and cable as follows. It can be for customer to test or developing use. Part No. Item Description MB06018-1-01 VGA adapter card...
