QUICK USER GUIDE
Dashboard Camera Model: FHD300GW
The features described in this user's guide are
subject to modifications without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FHD300GW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Binatone FHD300GW

Summary of Contents for Binatone FHD300GW

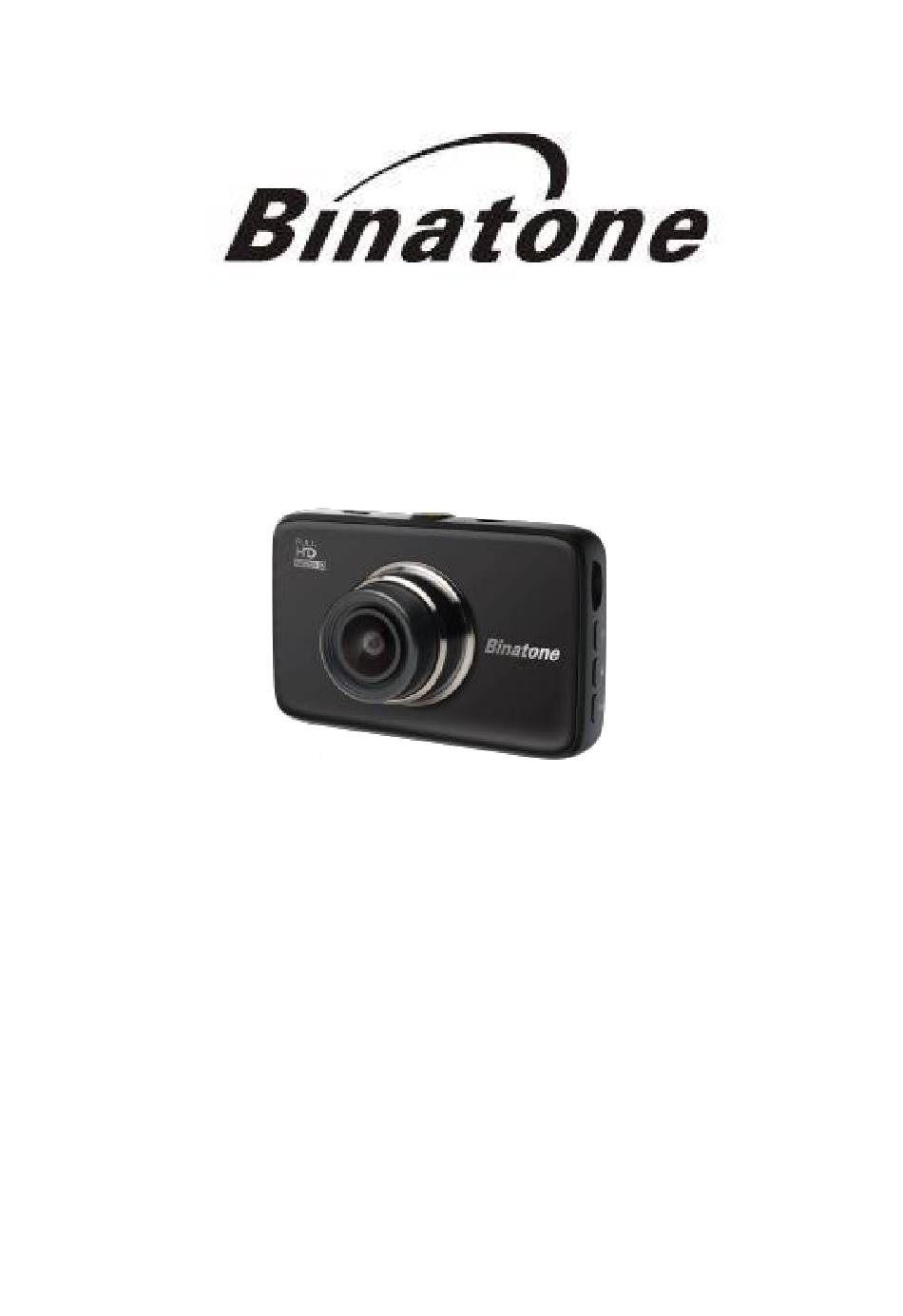

  • Page 1 QUICK USER GUIDE Dashboard Camera Model: FHD300GW The features described in this user’s guide are subject to modifications without prior notice.
  • Page 3 Thank you for purchasing the Dashboard Camera. Please keep your original dated sales receipt for your records. For warranty service of your Binatone product, you will need to provide a copy of your dated sales receipt to confirm warranty status.

  • Page 4: Table Of Contents

    1. Table of Contents 1. Table of Contents 2. Important 3. Safety Instruction 3.1 Using Your Dash Camera in the Car 3.2 Battery 3.3 Warning 4. Overview of your Dashcam 5. Getting Started 5.1 Installing your Device 5.2 First Use 6.

  • Page 5: Important

    2. Important Before using the dash cam, please insert a Micro SD card into the device in correct direction and ensure it is fixed in the card slot. If you are adding a new SD card to the device, we recommend you format it before use.

  • Page 6: Safety Instruction

    3. Safety Instruction 3.1 Using Your Dash Camera in the Car 1). Do not install the device within the driver’s or passenger airbag operation range. Please refer to your car’s service manual for details about the operation range of your car’s airbags. 2).

  • Page 7: Warning

    The Li-polymer battery contained in this unit must be recycled or disposed of properly. 4). Do not dispose of in household waste or burn. 3.3 Warning: Before using the dash cam, the user shall check the applicable laws on the use of dash cams. In some jurisdictions, the use of dash cams can be considered as an invasion of privacy.

  • Page 8: Overview Of Your Dashcam

    4. Overview of your Dashcam 12 13 Micro SD Card Slot Menu/Back Button Setting switcher Back button Lock Button:Lock/unlock current video when short press in recording Turn on/off Wi-Fi when long press in recording Mode Button Video/playback mode switcher Power on/off button: LCD on/off when short press in power-on state.
  • Page 9 Take photo when short press in recording OK Button: Start/Stop recording Confirm the setting Down Button: Forward during playback. Mute/unmute when short press in video mode. Micro USB Socket: Connect car adaptor provided to get electricity 10. Connection to suction mount provided 11.

  • Page 10: Getting Started

    5. Getting Started 5.1 Installing your Device The above illustration refers to a right-hand drive car. For left -hand drive cars, please flip the position of the cable installation accordingly. 1). Install your device within the rear-view mirror area and within the wiper cleaning area to get the clearest possible view.

  • Page 11: First Use

    3). You can also power it on manually by pressing the Power On/Off button. 4) The power LED (Red) will turn ON when the power is plugged in. Whenever the device is turned ON or OFF, you will see a splash screen showing the Binatone logo.

  • Page 12: Using Your Dashboard Camera

    6. Using your Dashboard Camera 6.1 Recording and Saving The purpose of your dashboard camera is to continuously record the road ahead, and to automatically record and save any incidents or accidents you might be involved in. SD card storage space has been set to: around 60% for GENERAL, around 30% for EVENT, 10% for PHOTO and cache files.

  • Page 13: Settings

    7. Settings 7.1 Main Settings To access main settings, press the menu/back button while in standby video mode. (Please press OK to stop recording first when recording). For each sub- menu, press up or down to navigate, OK to confirm, and menu/back to go back or cancel.
  • Page 14 5). Language Set the language as needed. 6). Frequency Select exposure, used to adjust exposure level for different light conditions. The default setting is 50 HZ, you can set it to 60 Hz. 7). LCD OFF You can set the LCD to never turn off (Default) or turn off after 1 minutes, 3 minutes.

  • Page 15: Video Settings

    12). Date Stamp Enable or disable a date stamp showing on your videos and photos. 13). Version Current firmware version. 7.2 Video Settings There are two ways to access Video Settings: 1. Press the Menu/Back button twice while in Video mode;...
  • Page 16 room for the latest file. Choose the default duration for each recording cluster: 1 Minute(default) / 3 Minutes / 5 Minutes 3). G-Sensor G-Sensor detects forces which will automatically protect the current recording in the event of a collision. You can change the sensitivity of the sensor.

  • Page 17: Playback Settings

    Hot key: Mute/unmute when short press down button in video mode Playback Settings To access Playback Settings, press the Menu/Back button while in Playback mode. For each sub-menu, press up or down to navigate, OK to confirm, and menu/back to go back or cancel. Delete: Use this option to delete photos and videos stored in your SD card.

  • Page 18: Playback On Pc

    8. Playback on PC The ways to playback on PC: 1). You can connect the device to your computer by using the standard USB cable(data transfer function needed) to view and manage videos stored inside the SD card. 2). You can also view the recorded files from the microSD card on a PC by using a card reader.

  • Page 19: How To Connect Device To Dashcam

    9.3 How to Connect the device to Dashcam Connecting your device to the Dashcam works similarly as connecting your device to a Wi-Fi network. 9.3.1 Make sure that your Dashcam is powered on by the car adapter (Red and blue light on), and the Wi-Fi is opened.

  • Page 20: Disposal Of The Device (Environment)

    2. Functions and feature features in HubbleClub Dashcam app are subject to change without notice. 10. Disposal of the Device (Environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment.

  • Page 21: Technical Specifications

    11. Technical Specifications LCD screen 3.0 inch Video resolution 1080P Lens 130℃ degree, 4 glass lens Video file format Image file format 4GB or above, up to 32 GB. Micro SD card Class10 or above (Not included) Mic and speaker Built-in Power 5V 1.5A...

  • Page 22: Declaration Of Conformity

    Tel: +44(0) 20 8955 2700 Fax: +44(0) 20 8344 8877 E-mail: binatoneuk@binatonetelecom.co.uk UK Declaration of Conformity We the manufacturer / Importer : Binatone Telecom Plc 85 Frampton Street London NW8 8NQ, United Kingdom Declare under our sole responsibility that the following product:...
  • Page 23 The product is labelled with the UKCA markings as shown below can be affixed on the product after preparation of necessary conformity documentation, as stipulated in Guidance Using the UKCA mark from 1 January 2021. Any Unauthorized modification of the product voids this Declaration.
