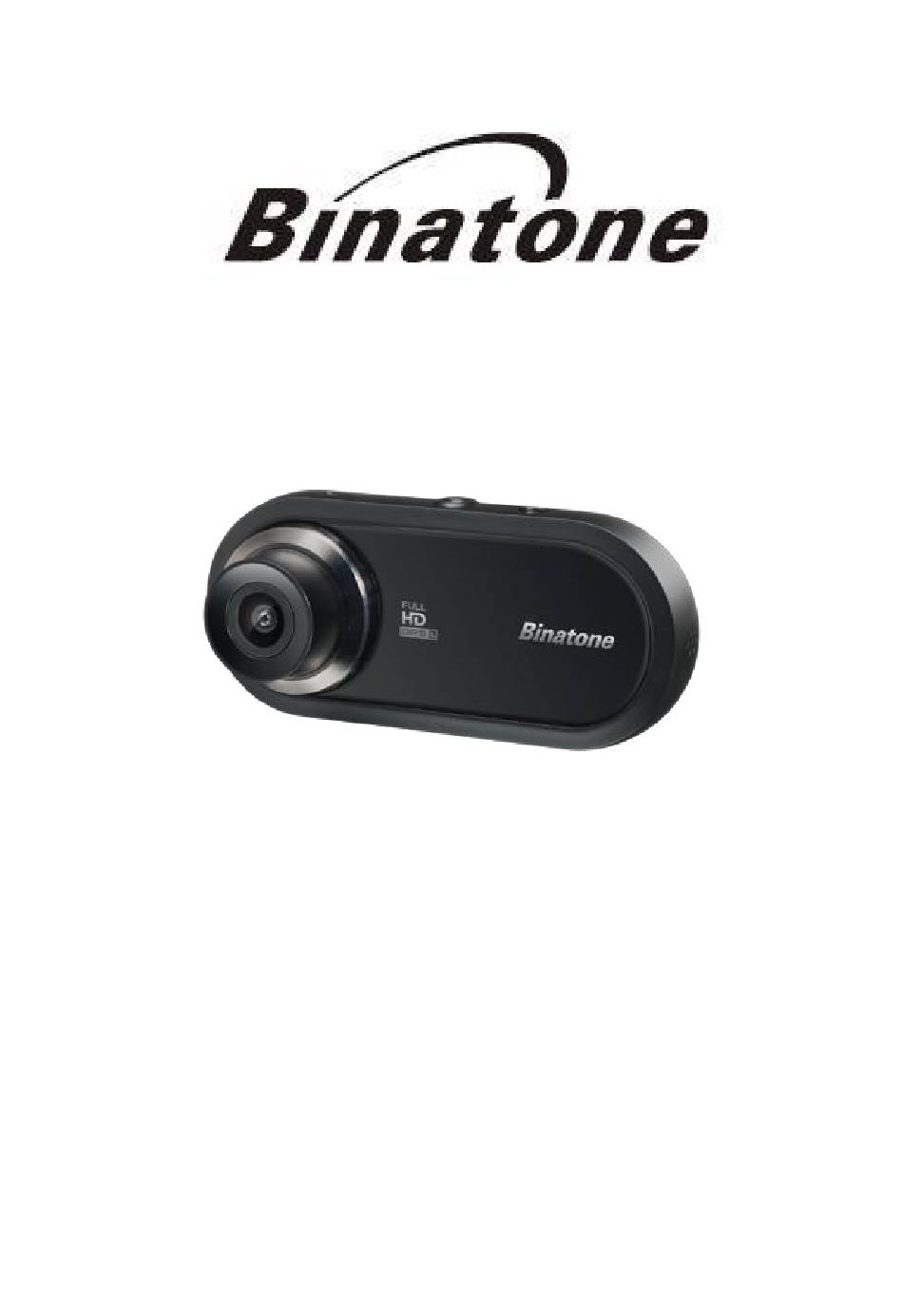

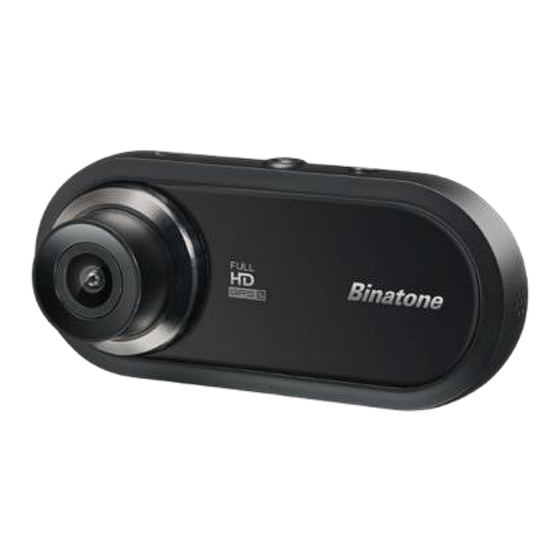

- Page 1 QUICK USER GUIDE Dashboard Camera Model: FHD500GW The features described in this user’s guide are subject to modifications without prior notice.
- Page 3 Thank you for purchasing the Dashboard Camera. Please keep your original dated sales receipt for your records. For warranty service of your Binatone product, you will need to provide a copy of your dated sales receipt to confirm warranty status.
-
Page 4: Table Of Contents
1. Table of Contents 1. Table of Contents 2. Important 3. Safety Instruction 3.1 Using Your Dash Camera in the Car 3.2 Battery 3.3 Warning 4. Overview of your Dashcam 5. Getting Started 5.1 Installing your Device 5.2 First Use 6. -
Page 5: Important
2. Important Before using the dash cam, please insert a Micro SD card into the device in correct direction and ensure it is fixed in the card slot. If you are adding a new SD card to the device, we recommend you format it before use. -
Page 6: Safety Instruction
3. Safety Instruction 3.1 Using Your Dash Camera in the Car 1). Do not install the device within the driver’s or passenger airbag operation range. Please refer to your car’s service manual for details about the operation range of your car’s airbags. 2). -
Page 7: Warning
The Li-polymer battery contained in this unit must be recycled or disposed of properly. 4). Do not dispose of in household waste or burn. 3.3 Warning: Before using the dash cam, the user shall check the applicable laws on the use of dash cams. In some jurisdictions, the use of dash cams can be considered as an invasion of privacy. -
Page 8: Overview Of Your Dashcam
4. Overview of your Dashcam Charge Indicator: Red: Charging Yellow: Full charged Power on/off button: LCD on/off when short press in power-on state. Up Button: Rewind during playback. Take photo when short press in recording Front and rear camera switcher when long press in playback mode Mode Button Video/playback mode switcher... - Page 9 Mute/unmute when short press during recording OK Button: Start/Stop recording Confirm the setting Down Button: Forward during playback. Front and rear camera switcher when short press during recording Lock Button:Lock/unlock current and next videos when short press during recording Turn on/off Wi-Fi when long press during recording Status Light: Blue: Power on...
-
Page 10: Getting Started
5. Getting Started 5.1 Installing your Device The above illustration refers to a right-hand drive car. For left -hand drive cars, please flip the position of the cable installation accordingly. 1). Install your device within the rear-view mirror area and within the wiper cleaning area to get the clearest possible view. -
Page 11: First Use
3). You can also power it on manually by pressing the Power On/Off button. 4) The charge indicator will turn ON when the power is plugged in. Whenever the device is turned ON or OFF, you will see a splash screen showing the Binatone logo. -
Page 12: Using Your Dashboard Camera
6. Using your Dashboard Camera 6.1 Recording and Saving The purpose of your dashboard camera is to continuously record the road ahead, and to automatically record and save any incidents or accidents you might be involved in. SD card storage space has been set to: around 60% for GENERAL, around 30% for EVENT, 10% for PHOTO and cache files. -
Page 13: Settings
7. Settings 7.1 Main Settings To access main settings, press the menu/back button while in standby video mode. (Please press OK to stop recording first when recording). For each sub- menu, press up or down to navigate, OK to confirm, and menu/back to go back or cancel. - Page 14 5). Language Set the language as needed. 6). Frequency The default setting is 50 HZ, you can set it to 60 Hz. 7). LCD OFF You can set the LCD to never turn off (Default) or turn off after 1 minutes, 3 minutes. Hot key: Short press power button in power-on state.
-
Page 15: Video Settings
7.2 Video Settings There are two ways to access Video Settings: 1. Press the Menu/Back button twice while in Video mode; 2. Press the Down button while in the last sub-menu of Main Settings. For each sub-menu, press Up or Down to navigate, OK to confirm, and Menu/Back to go back or cancel. - Page 16 sensor. It is set to Low by default, but can be set to Off/High/Medium/Low(default). Hot key: Lock/Unlock the Video: In case of emergency, you can lock/unlock the current video by pressing on the lock button during recording. The video footage of the locked video will be saved in the EVENT folder.
-
Page 17: Playback Settings
Playback Settings To access Playback Settings, press the Menu/Back button while in Playback mode. For each sub-menu, press up or down to navigate, OK to confirm, and menu/back to go back or cancel. Hot Key: Front and rear camera switcher when long press up button in playback mode Delete: Use this option to delete photos and videos stored in... -
Page 18: Playback On Pc
8. Playback on PC The ways to playback on PC: 1). You can connect the device to your computer by using the standard USB cable(data transfer function needed) to view and manage videos stored inside the SD card. 2). You can also view the recorded files from the microSD card on a PC by using a card reader. -
Page 19: How To Connect Device To Dashcam
9.3 How to Connect the device to Dashcam Connecting your device to the Dashcam works similarly as connecting your device to a Wi-Fi network. 9.3.1 Make sure that your Dashcam is powered on by the car adapter (Red and blue light on), and the Wi-Fi is opened. -
Page 20: Disposal Of The Device (Environment)
10. Disposal of the Device (Environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide and/or box indicates this. -
Page 21: Technical Specifications
11. Technical Specifications LCD screen 2.0 inch Video resolution 1920*1080P 30fps for front camera Lens for front 130℃ degree camera 4 glass lens Video file format Image file format 4GB or above, up to 32 GB. Micro SD card Class10 or above (Not included) Supported Wi-Fi Supported... -
Page 22: Declaration Of Conformity
Tel: +44(0) 20 8955 2700 Fax: +44(0) 20 8344 8877 E-mail: binatoneuk@binatonetelecom.co.uk UK Declaration of Conformity We the manufacturer / Importer : Binatone Telecom Plc 85 Frampton Street London NW8 8NQ, United Kingdom Declare under our sole responsibility that the following product:... - Page 23 documentation, as stipulated in Guidance Using the UKCA mark from 1 January 2021. Any Unauthorized modification of the product voids this Declaration. Manufacturer / Importer (signature of authorized person) Calvin Tsang, Product Manager London, Signature: Place & Date: 10 SEP, 2021...
Need help?
Do you have a question about the FHD500GW and is the answer not in the manual?
Questions and answers
My camera doesn't appear to be charging when connected to my cars cigarette lighter
The Binatone FHD500GW camera may not be charging when connected to the car's cigarette lighter due to several possible reasons:
1. Faulty Car Adapter – The provided car adapter may be damaged or not functioning properly.
2. Improper Connection – The adapter may not be securely plugged into the cigarette lighter socket.
3. Car Power Outlet Issue – The vehicle’s cigarette lighter socket may not be providing power.
4. Battery or Device Issue – The camera’s rechargeable battery may be faulty or unable to hold a charge.
5. Cable Problem – A damaged or incompatible USB cable may prevent charging.
6. Power Requirements Not Met – The car adapter may not provide the required 5V 1.5A output.
To resolve the issue, check the connections, try a different power source, test the adapter in another vehicle, or replace the cable or adapter if necessary.
This answer is automatically generated

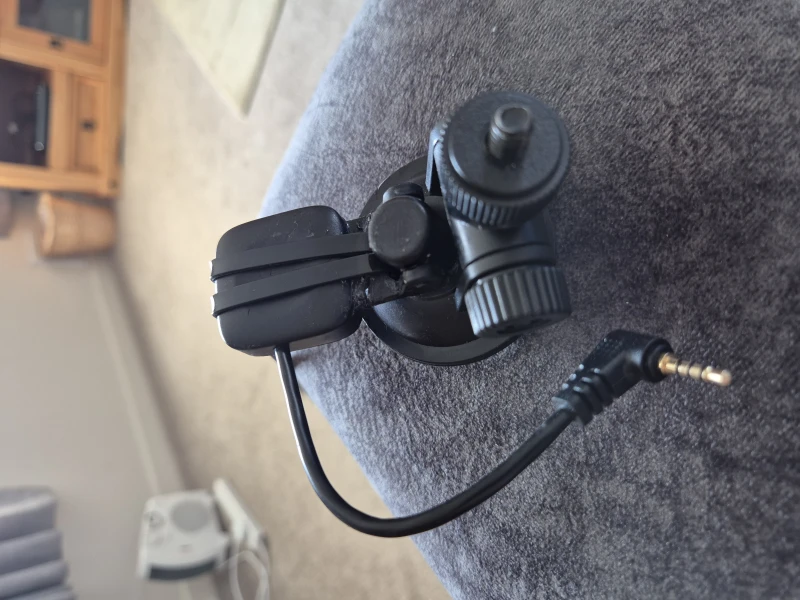

Lookin for replacement suction mount for binatone fhd500gw dual dash camera
