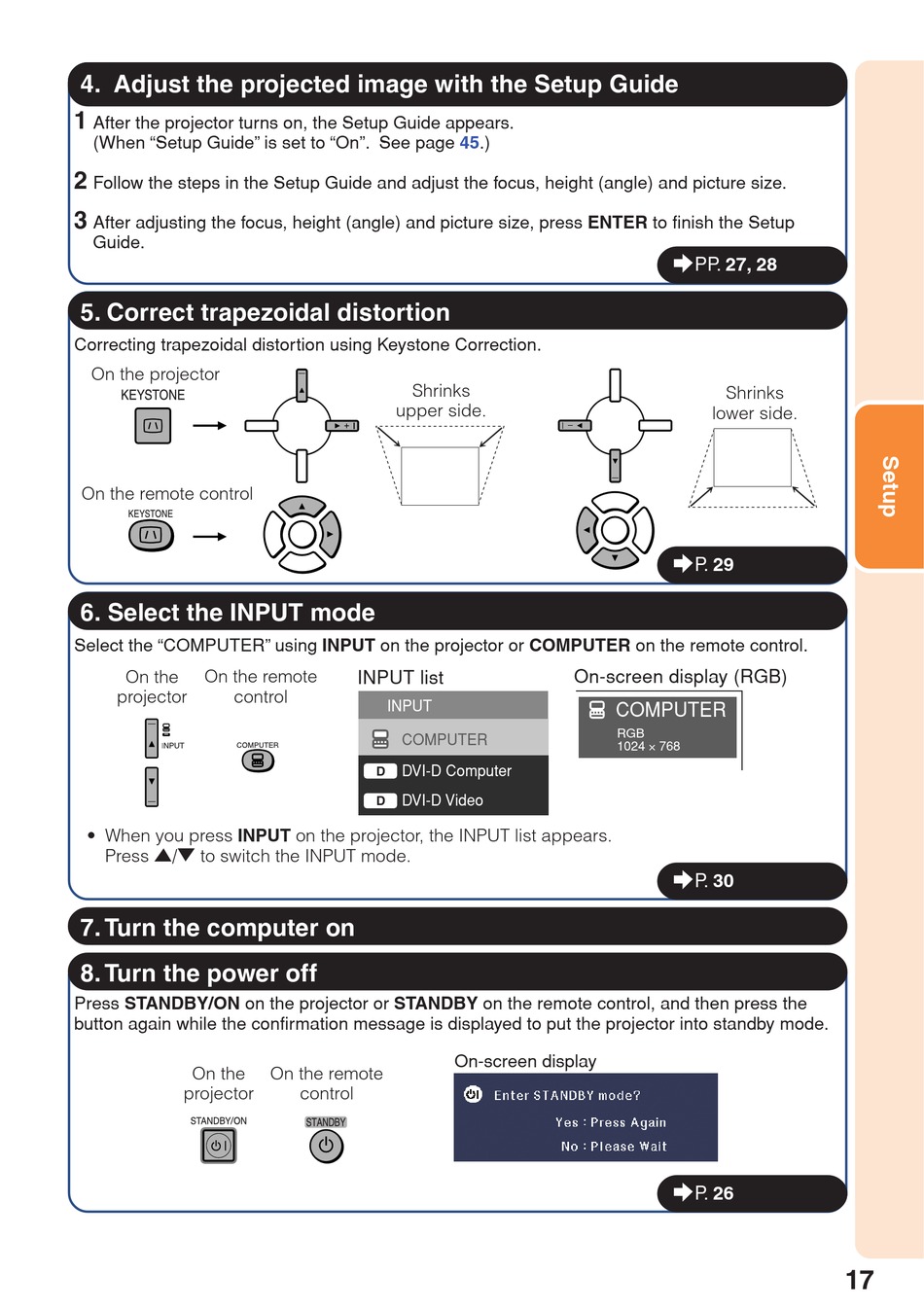

4. Adjust the projected image with the Setup Guide
1
After the projector turns on, the Setup Guide appears.
(When "Setup Guide" is set to "On". See page 45.)
2
Follow the steps in the Setup Guide and adjust the focus, height (angle) and picture size.
3
After adjusting the focus, height (angle) and picture size, press ENTER to finish the Setup
Guide.
5. Correct trapezoidal distortion
Correcting trapezoidal distortion using Keystone Correction.
On the projector
On the remote control
6. Select the INPUT mode
Select the "COMPUTER" using INPUT on the projector or COMPUTER on the remote control.
On the
On the remote
projector
control
• When you press INPUT on the projector, the INPUT list appears.
Press '/" to switch the INPUT mode.
7. Turn the computer on
8. Turn the power off
Press STANDBY/ON on the projector or STANDBY on the remote control, and then press the
button again while the confirmation message is displayed to put the projector into standby mode.
On the
projector
Shrinks
upper side.
INPUT list
INPUT
COMPUTER
DVI-D Computer
D
DVI-D Video
D
On the remote
control
On-screen display (RGB)
COMPUTER
RGB
1024 × 768
On-screen display
_PP. 27, 28
Shrinks
lower side.
_P. 29
_P. 30
_P. 26
17
