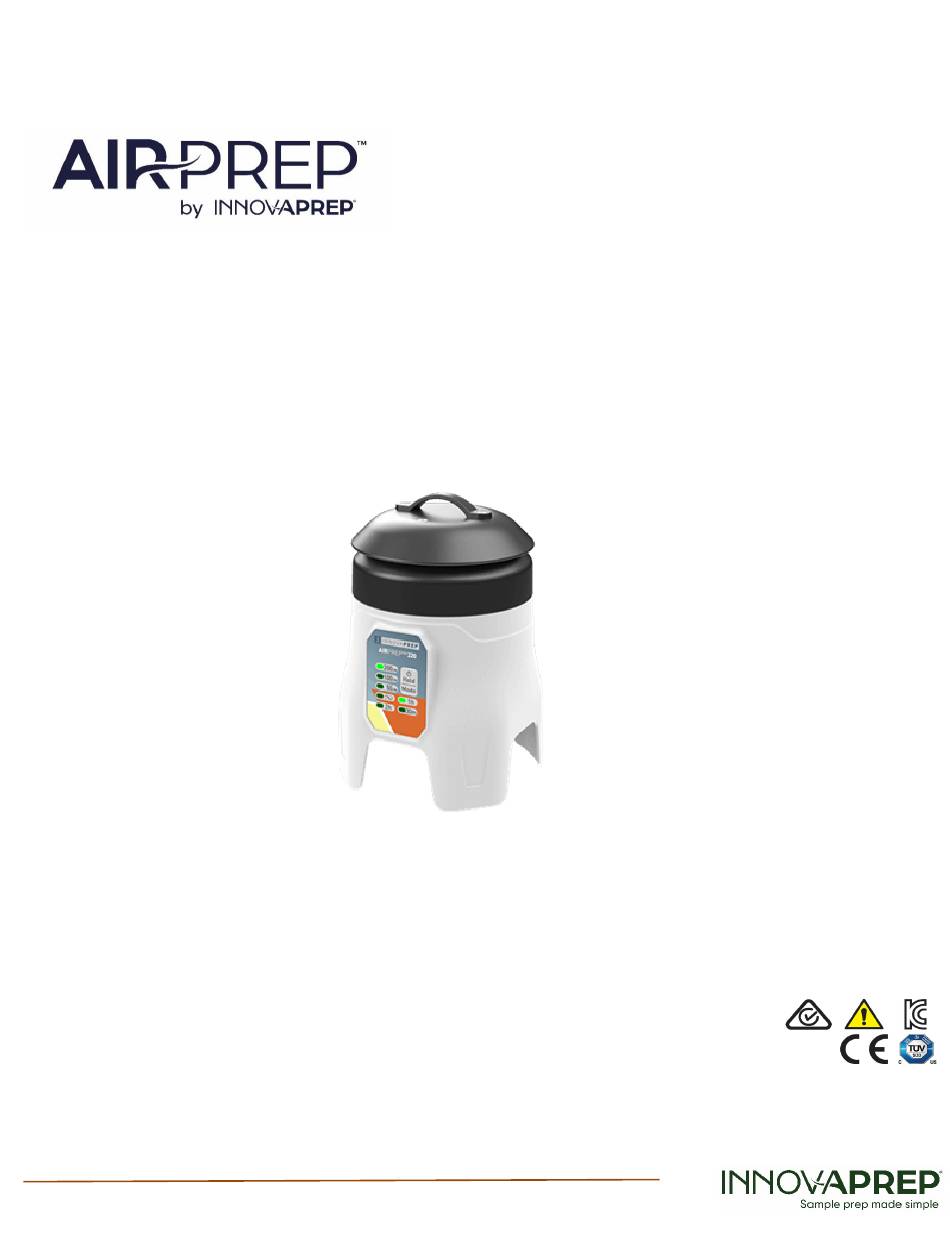

- Page 1 AirPrep Cub Sampler™ (ACD 210 & ACD 220) and Air Sampling System User Manual...
-
Page 2: Table Of Contents
Table of Contents Product Overview ........3 Product Description ..............................3 Collection Capability ............................... 3 Materials Provided ..............................3 Materials Required But Not Included ........................3 Method of Operation ........ 4 Sample Collection on an Electret Filter ........................4 Instant Wet Foam Elution™ ............................ 4 Sampler Components ........ -
Page 3: Product Overview
AirPrep™ Cub Sampler ACD220 model is plug-in only RODUCT ESCRIPTION The AirPrep Cub Sampler is a dry filter air sampler that operates using InnovaPrep’s unique, patented rapid filter elution products to provide samples for a wide range of indoor and outdoor biomonitoring applications. OLLECTION... -
Page 4: Method Of Operation
These micro-bubbles increase the volume of the fluid six-fold or more as it passes through the filter. The foam immediately collapses back into a liquid and is ready for sample processing and analysis. InnovaPrep’s patented Wet Foam Elution process (https://www.innovaprep.com/patents) -
Page 5: Sampler Components
AMPLER OMPONENTS AMPLER OMPONENTS 1. Omni-Directional Inlet Cap – protects from water ingress 2. Inlet - screws off left to open for loading or recovering the filter cartridge. Screws on right to close 3. Front Panel - Power on and Mode selections (see section 4 for instructions) 4. -
Page 6: Procedures
ROCEDURES This section includes some of the basic instructions for operation. ETTING P THE AMPLER FOR OLLECTION Push the barrel plug of the power supply (Figure 2) into the power jack on the bottom of the instrument. Plug the AC Power Cord into the power supply and plug the other end into an appropriate wall outlet. -
Page 7: Power On
Flowrate LED Indicator Light The flowrate LED indicator for the selected run mode will stay on while the fan is running. Timer LED Indicator Light • The timer LED Indicator light will flash slowly as they countdown, as they approach the expiration they will increase in frequency until the unit times out and shuts down. -
Page 8: Selecting The Flow Rate
4.3.5 ELECTING THE FLOW RATE 1. Press Hold/Mode button for 4 seconds, if fan was already running it will shut off after the first two seconds. All 3 Flowrate LED Indicator lights will flash 2. Let up and momentarily press the Hold/Mode button The 50LPM LED indicator light will flash. -
Page 9: Airprep Cub Sampler- Model Acd210 Battery Safety Information
ACD210 B AMPLER ODEL ATTERY SAFETY INFORMATION 14.4V 3350mAh Operating temperature: • Charge: 10 - 45°C • Discharge: -20 - 6O°C Storage temperature: Recommended 25+/-5°C at 50% state of charge • Do not immerse the AirPrep Cub Sampler in liquid. Exposure to liquid may damage the battery or the circuits. As a result, the battery may generate heat, smoke, catch fire, or explode. -
Page 10: Specifications
Customer Service: customerservice@innovaprep.com Caution: Any changes, or modifications not expressly approved by InnovaPrep could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
